Method A

  1. Slide the harness protector off the ignition coil No. 1 to clear the wires.
  2. Attach timing light to the wires.
    Fig 1: Identifying Timing Light
    G06152259Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

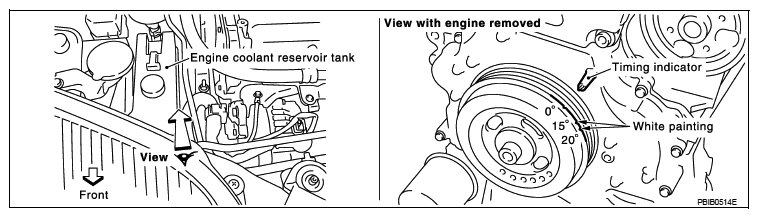

    Fig 2: Checking Ignition Timing
    G06152260Courtesy of NISSAN MOTOR CO., U.S.A.
