Exploded View: Component

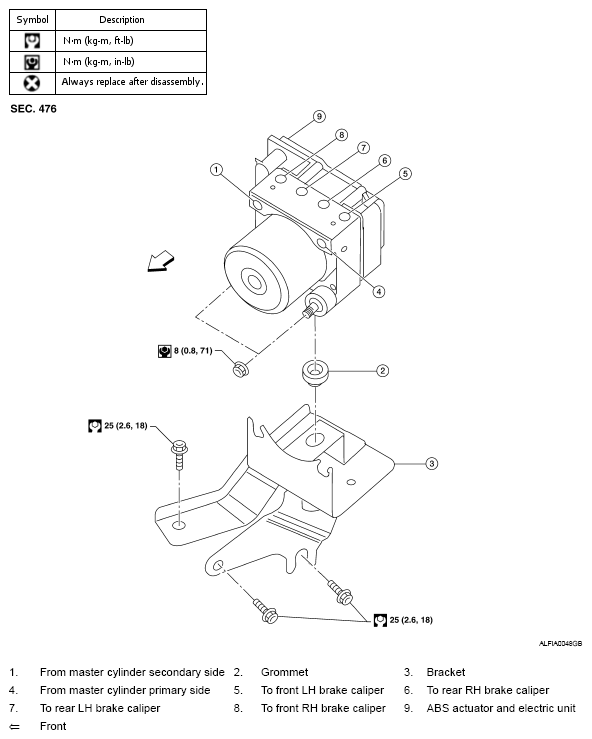

Fig 1: ABS Actuator And Electric Unit Components (Control Unit) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI section "COMPONENTS " for symbol marks in the figure.
