System - Basic Engine Control System

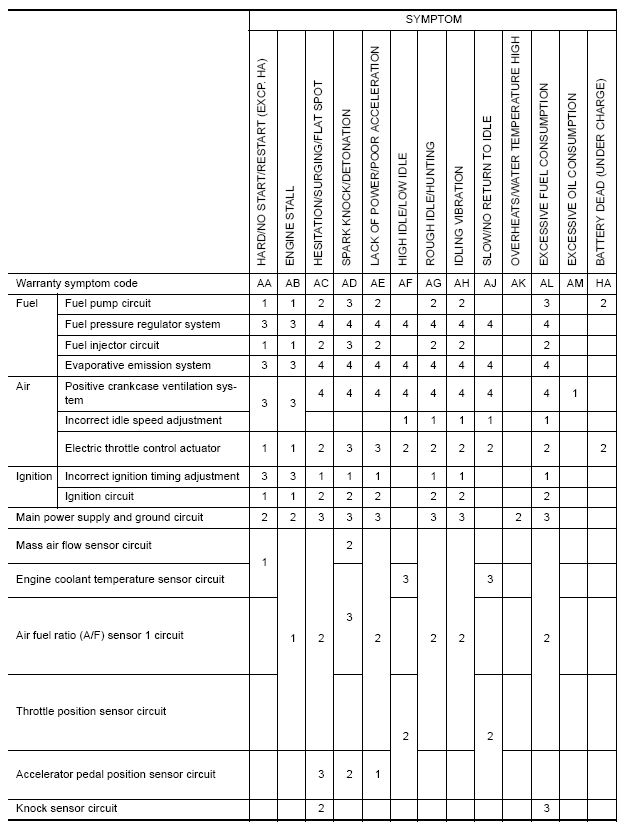

Fig 1: Engine Control System Symptoms Chart (1 Of 2)
G05688550Courtesy of NISSAN MOTOR CO., U.S.A.

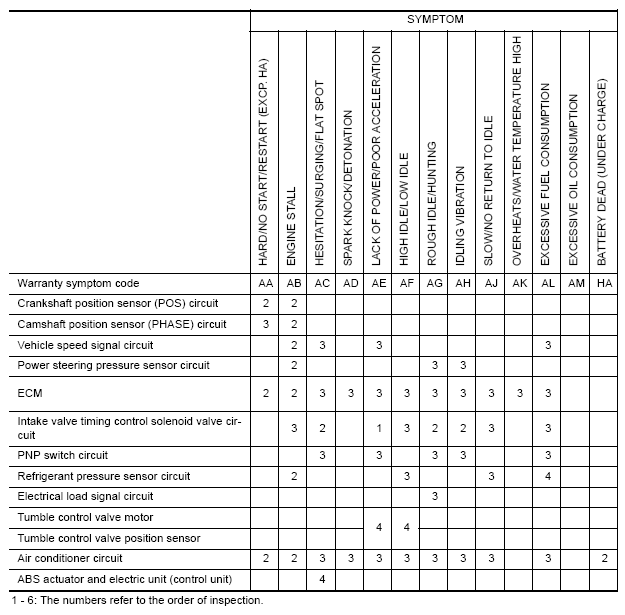

Fig 2: Engine Control System Symptoms Chart (2 Of 2)
G05688551Courtesy of NISSAN MOTOR CO., U.S.A.
