Overall Sequence

WARNING: This page is about a different variant/trim than selected.

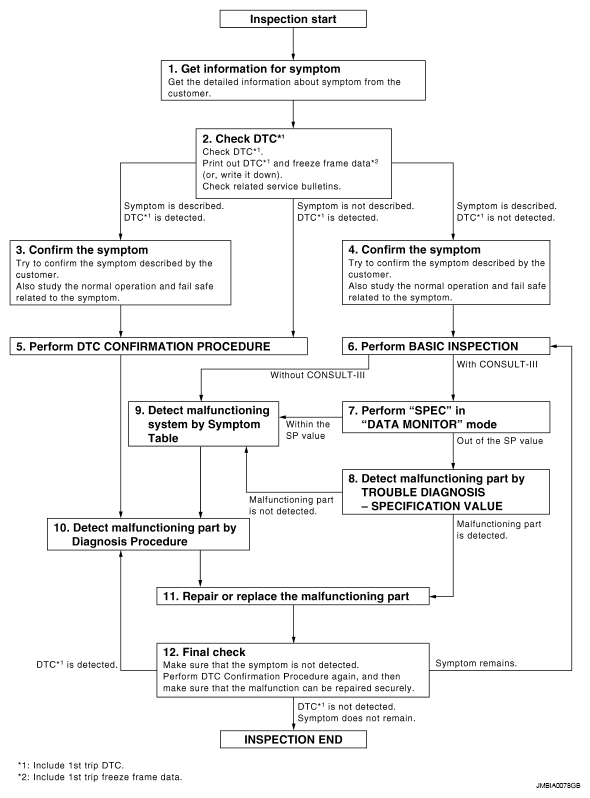

Fig 1: Diagnosis And Repair Workflow Chart
G05694863Courtesy of NISSAN MOTOR CO., U.S.A.
