SRT Service Procedure

WARNING: This page is about a different variant/trim than selected.

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating "INCMP", review the flowchart diagnostic sequence.

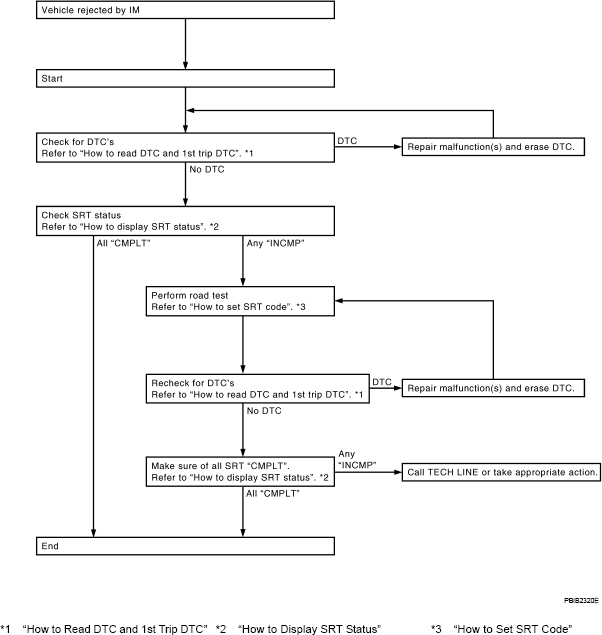

Fig 1: SRT Service Procedure Flow Chart
G05694934Courtesy of NISSAN MOTOR CO., U.S.A.
*1 How to Read DTC and 1st Trip DTC
*2 How to Display SRT Status
*3 How to Set SRT Code
