Basic Operation

This system generates a motive force in combination with the engine, MG1 and MG2 in accordance with the driving conditions. Representative examples of the various combinations are described below.

Starting (Drive by MG2)

Supply of electrical power from the HV battery to MG2 provides force to drive the front wheels.

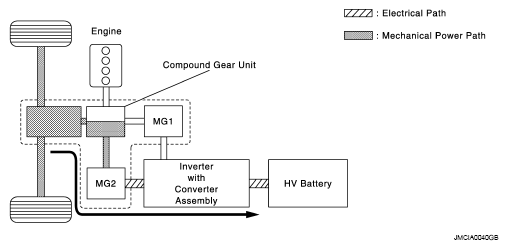

Fig 1: Power Flow Diagram - Regenerative Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

During Acceleration with Engine

While the front wheels are being driven by the engine via the planetary gears, MG1 is driven by the engine via the planetary gears, in order to supply the generated electricity to MG2.

Fig 2: Power Flow Diagram - During Acceleration With Engine

Courtesy of NISSAN MOTOR CO., U.S.A.

Charge The HV Battery

MG1 is rotated by the engine via the planetary gears, in order to charge the HV battery.

Fig 3: Power Flow Diagram - Charge HV Battery

Courtesy of NISSAN MOTOR CO., U.S.A.

During Deceleration Driving

When the vehicle is decelerating, kinetic energy from the front wheels is recovered and converted into electrical energy and used to recharge the HV battery by means of MG2.

Fig 4: Power Flow Diagram - During Deceleration Driving

Courtesy of NISSAN MOTOR CO., U.S.A.
