Method A

  1. Attach timing light to loop wire as shown.

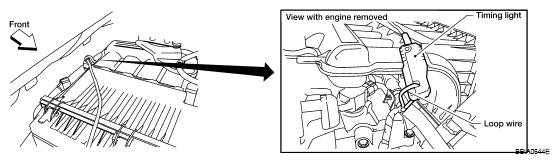

    Fig 1: Attaching Timing Light To Loop Wire
    G05699813Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.
    Fig 2: Identifying Timing Indicator
    G05699814Courtesy of NISSAN MOTOR CO., U.S.A.
