Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns For "Misfire " <-- Exhaust Quality Deterioration >"Fuel Injection System"

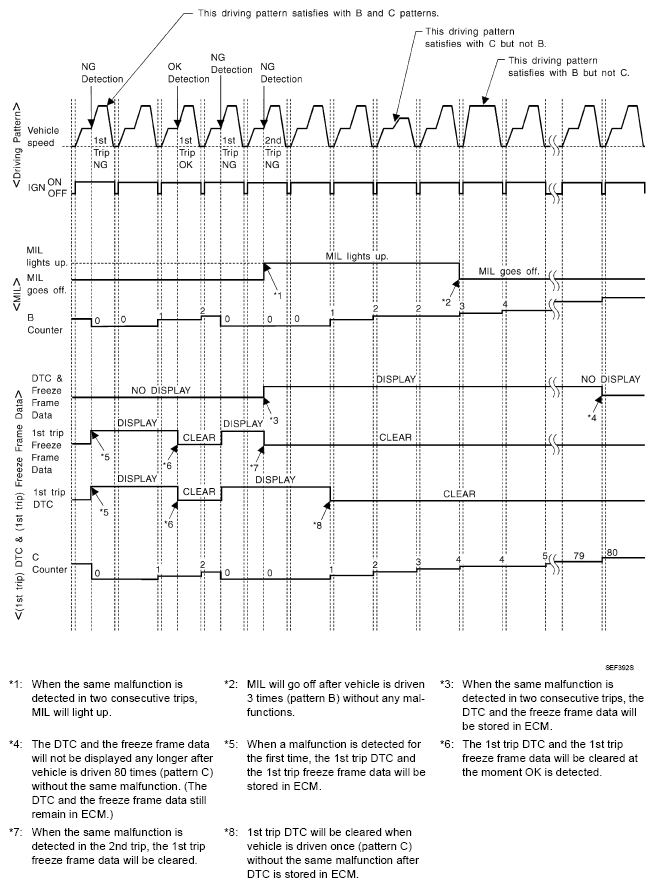

Fig 1: DTC Driving Patterns (B-C)

Courtesy of NISSAN MOTOR CO., U.S.A.
