Component Parts Location

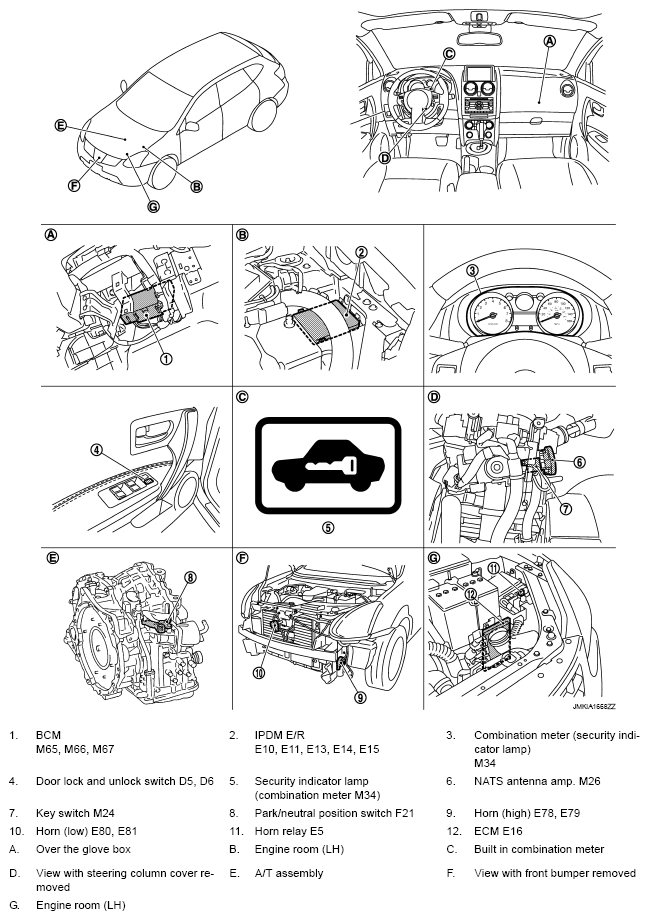

Fig 1: Identifying Vehicle Security System Component Parts Location (1 Of 2)
G05371930

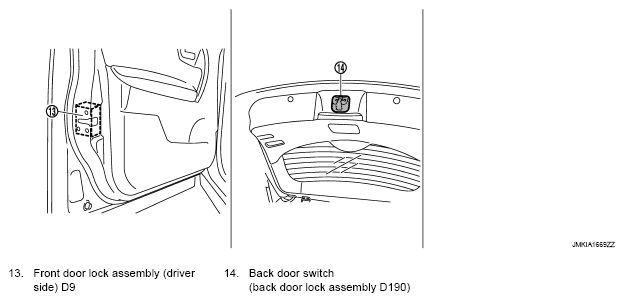

Fig 2: Identifying Vehicle Security System Component Parts Location (2 Of 2)
G05371931
