Component Parts Location

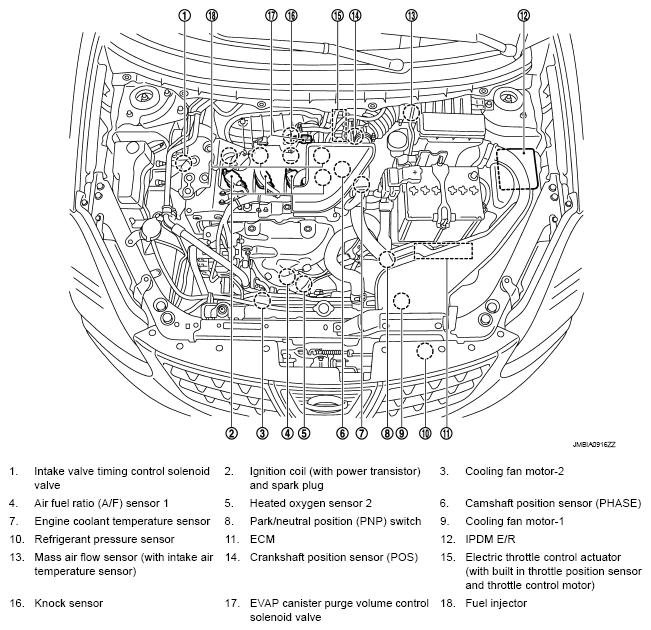

Fig 1: Identifying Automatic Speed Control Device (ASCD) Components Location (1 Of 11)
G05369146

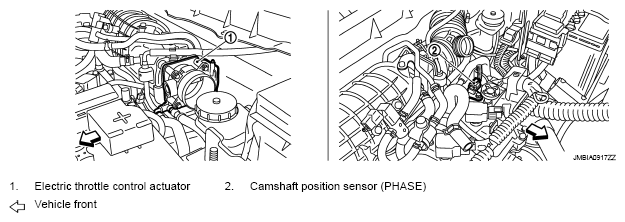

Fig 2: Identifying Automatic Speed Control Device (ASCD) Components Location (2 Of 11)
G05369147

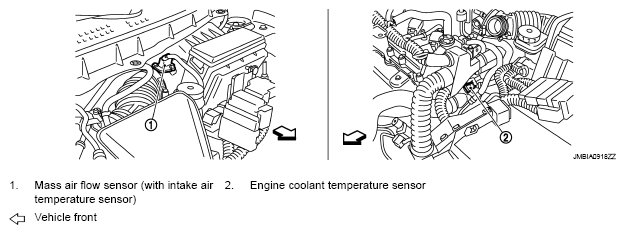

Fig 3: Identifying Automatic Speed Control Device (ASCD) Components Location (3 Of 11)
G05369148

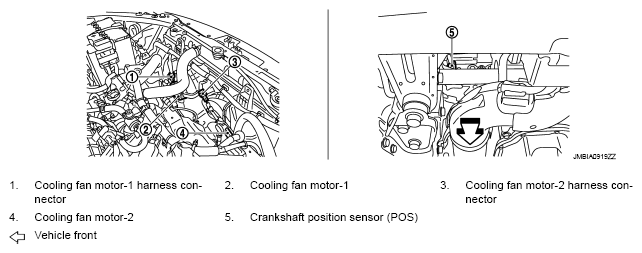

Fig 4: Identifying Automatic Speed Control Device (ASCD) Components Location (4 Of 11)
G05369149

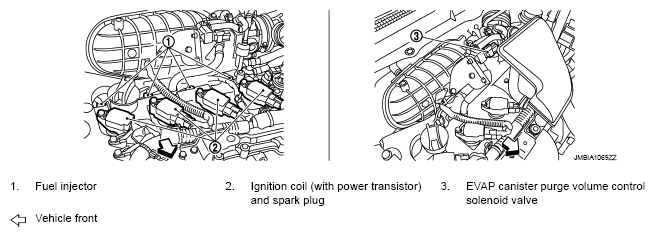

Fig 5: Identifying Automatic Speed Control Device (ASCD) Components Location (5 Of 11)
G05369150

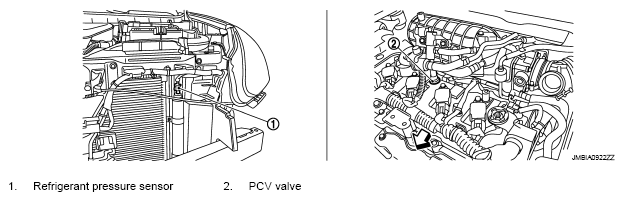

Fig 6: Identifying Automatic Speed Control Device (ASCD) Components Location (6 Of 11)
G05369151

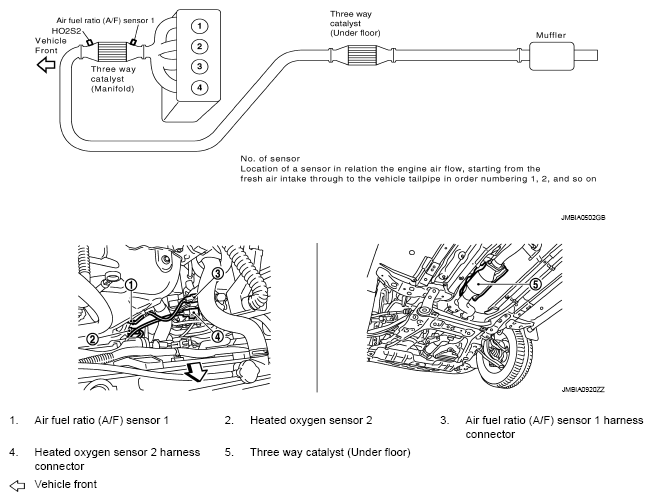

Fig 7: Identifying Automatic Speed Control Device (ASCD) Components Location (7 Of 11)
G05369152

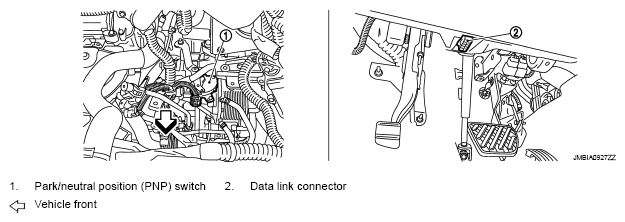

Fig 8: Identifying Automatic Speed Control Device (ASCD) Components Location (8 Of 11)
G05369153

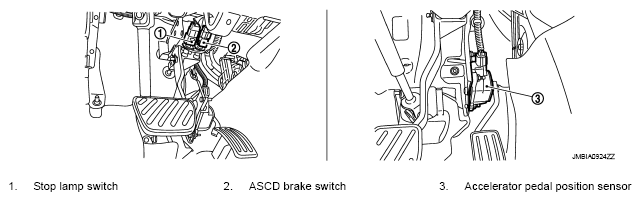

Fig 9: Identifying Automatic Speed Control Device (ASCD) Components Location (9 Of 11)
G05369154
Fig 10: Identifying Automatic Speed Control Device (ASCD) Components Location (10 Of 11)
G05369155

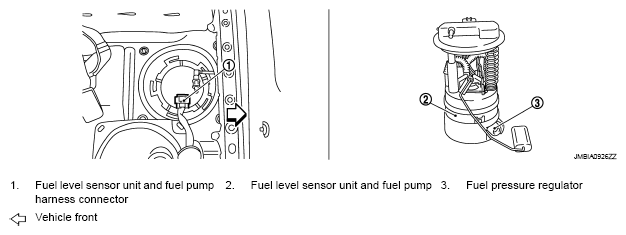

Fig 11: Identifying Automatic Speed Control Device (ASCD) Components Location (11 Of 11)
G05369156
