Component Parts Location

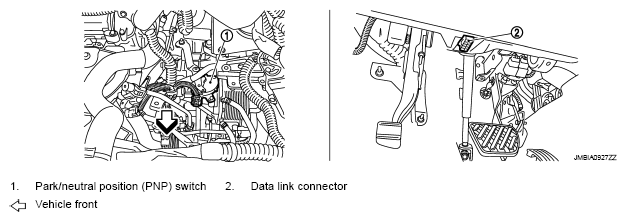

Fig 1: Identifying Intake Valve Timing Control System Components Location (1 Of 11)

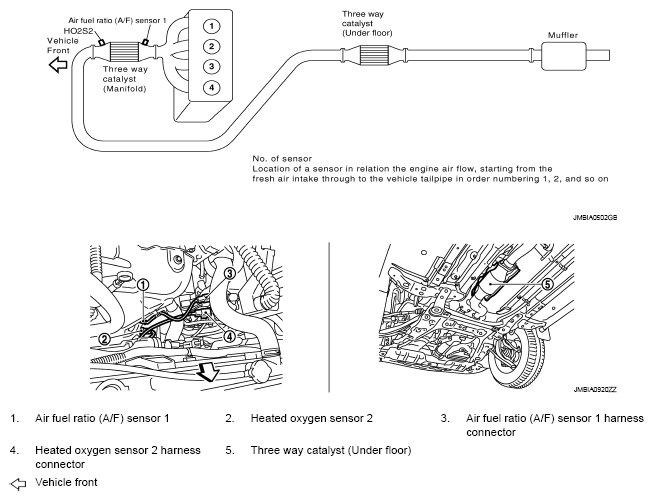

Fig 2: Identifying Intake Valve Timing Control System Components Location (2 Of 11)

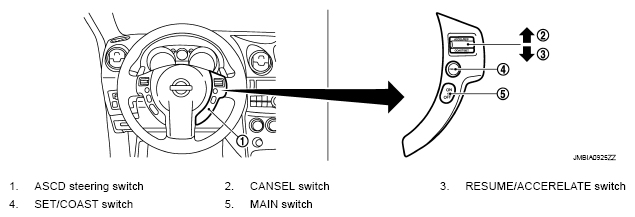

Fig 3: Identifying Intake Valve Timing Control System Components Location (3 Of 11)

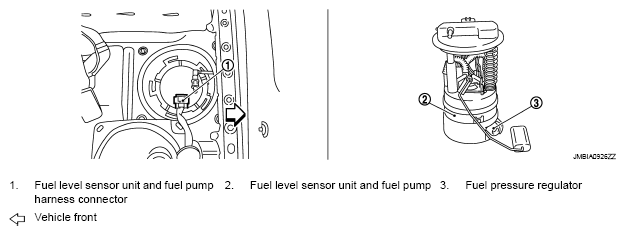

Fig 4: Identifying Intake Valve Timing Control System Components Location (4 Of 11)

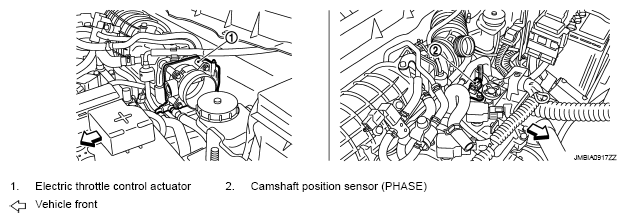

Fig 5: Identifying Intake Valve Timing Control System Components Location (5 Of 11)

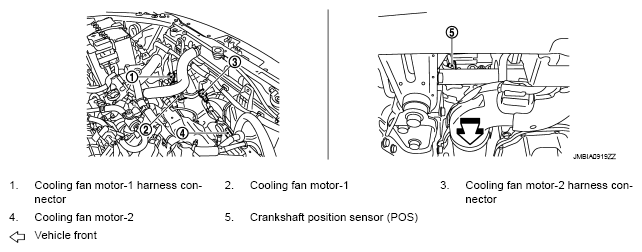

Fig 6: Identifying Intake Valve Timing Control System Components Location (6 Of 11)

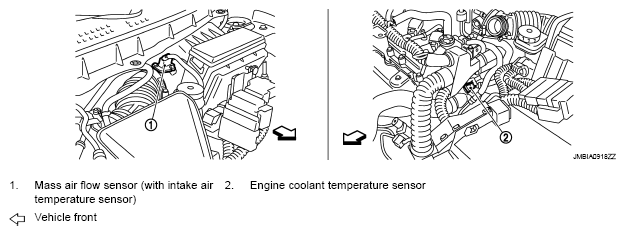

Fig 7: Identifying Intake Valve Timing Control System Components Location (7 Of 11)

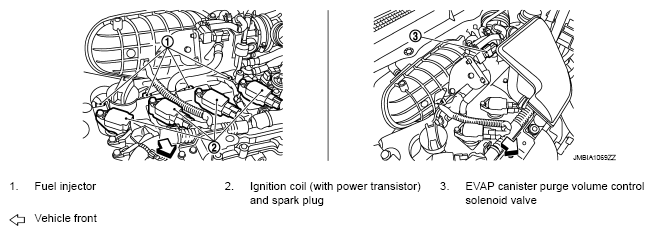

Fig 8: Identifying Intake Valve Timing Control System Components Location (8 Of 11)

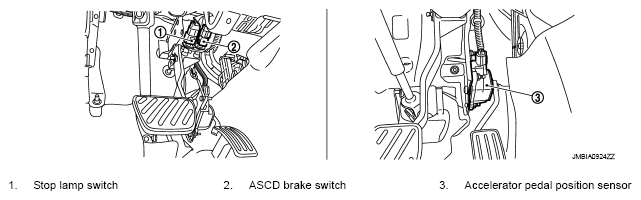

Fig 9: Identifying Intake Valve Timing Control System Components Location (9 Of 11)

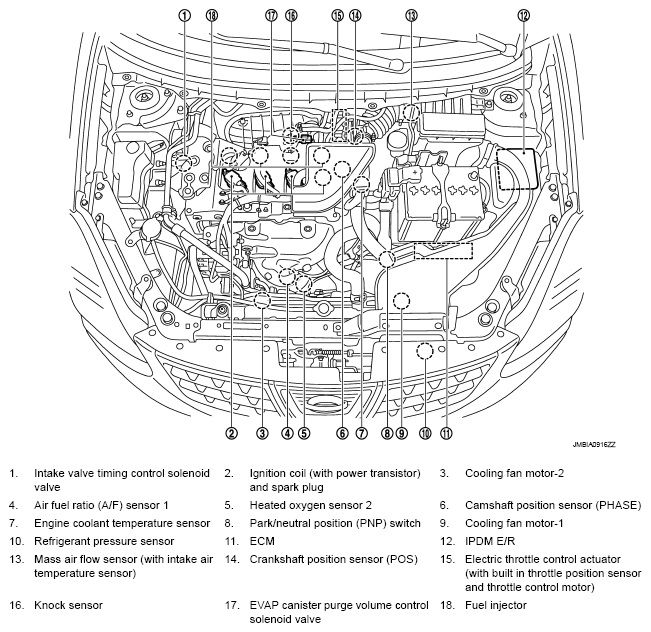

Fig 10: Identifying Intake Valve Timing Control System Components Location (10 Of 11)

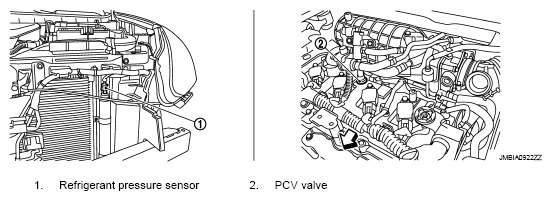

Fig 11: Identifying Intake Valve Timing Control System Components Location (11 Of 11)
