Component Parts Location

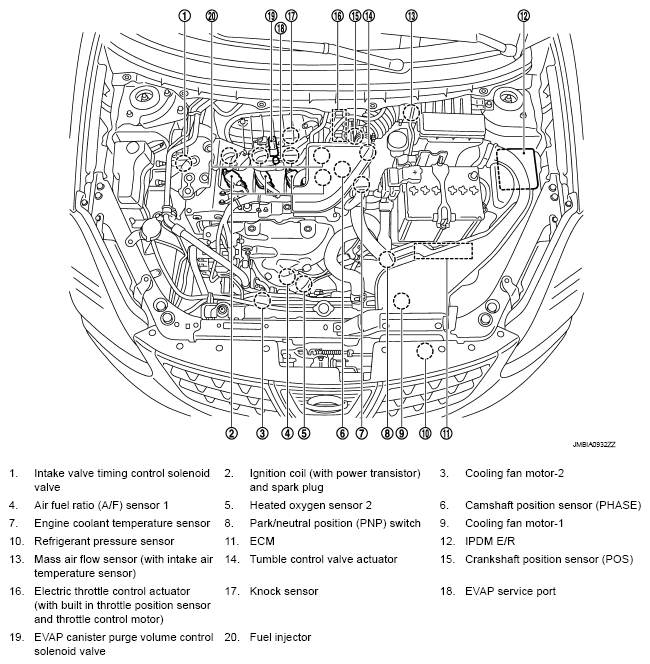

Fig 1: Identifying Intake Valve Timing Control System Components Location (1 Of 13)
G05369543Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Identifying Intake Valve Timing Control System Components Location (2 Of 13)
G05369544Courtesy of NISSAN NORTH AMERICA, INC.

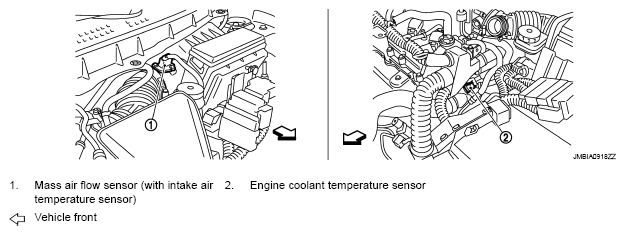

Fig 3: Identifying Intake Valve Timing Control System Components Location (3 Of 13)
G05369545Courtesy of NISSAN NORTH AMERICA, INC.

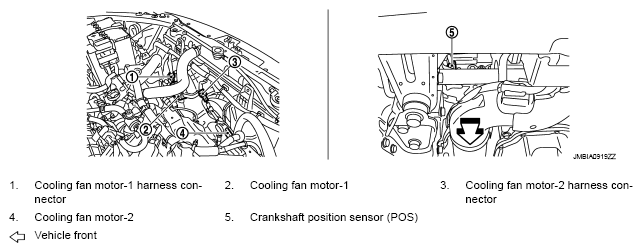

Fig 4: Identifying Intake Valve Timing Control System Components Location (4 Of 13)
G05369546Courtesy of NISSAN NORTH AMERICA, INC.

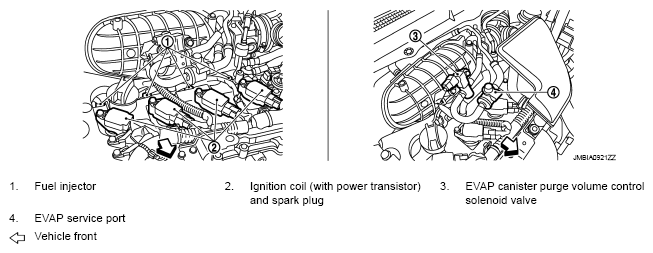

Fig 5: Identifying Intake Valve Timing Control System Components Location (5 Of 13)
G05369547Courtesy of NISSAN NORTH AMERICA, INC.

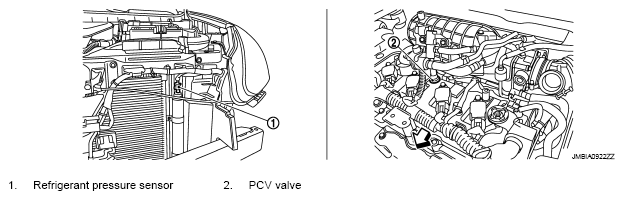

Fig 6: Identifying Intake Valve Timing Control System Components Location (6 Of 13)
G05369548Courtesy of NISSAN NORTH AMERICA, INC.

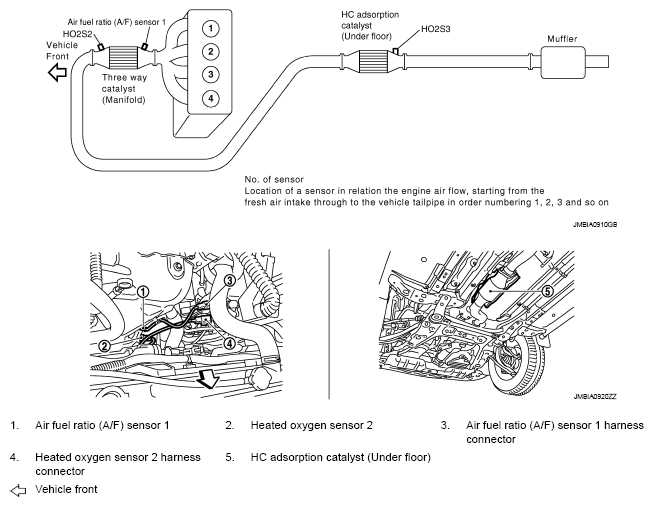

Fig 7: Identifying Intake Valve Timing Control System Components Location (7 Of 13)
G05369549Courtesy of NISSAN NORTH AMERICA, INC.

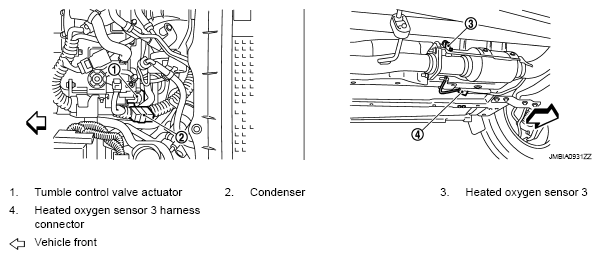

Fig 8: Identifying Intake Valve Timing Control System Components Location (8 Of 13)
G05369550Courtesy of NISSAN NORTH AMERICA, INC.

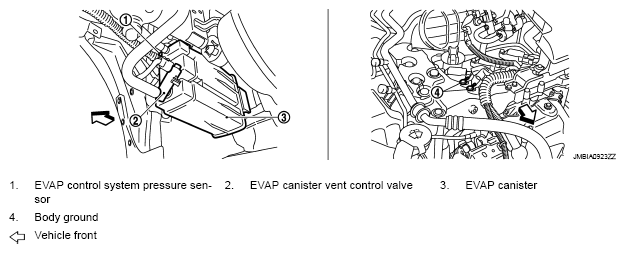

Fig 9: Identifying Intake Valve Timing Control System Components Location (9 Of 13)
G05369551Courtesy of NISSAN NORTH AMERICA, INC.

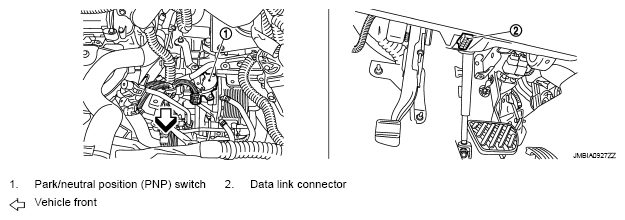

Fig 10: Identifying Intake Valve Timing Control System Components Location (10 Of 13)
G05369552Courtesy of NISSAN NORTH AMERICA, INC.

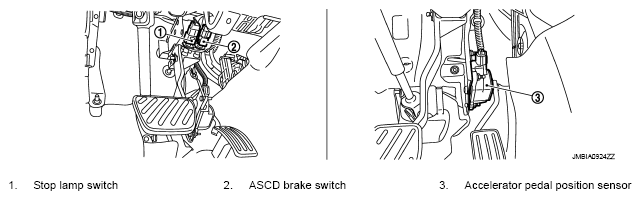

Fig 11: Identifying Intake Valve Timing Control System Components Location (11 Of 13)
G05369553Courtesy of NISSAN NORTH AMERICA, INC.

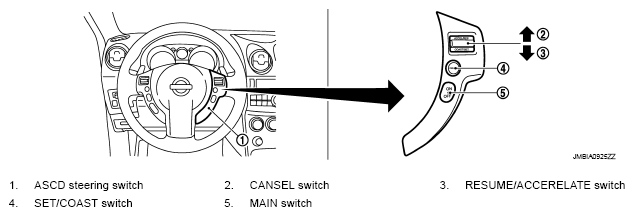

Fig 12: Identifying Intake Valve Timing Control System Components Location (12 Of 13)
G05369554Courtesy of NISSAN NORTH AMERICA, INC.

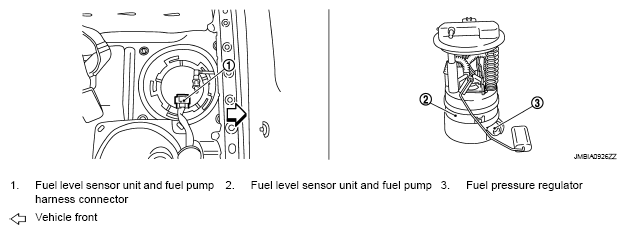

Fig 13: Identifying Intake Valve Timing Control System Components Location (13 Of 13)
G05369555Courtesy of NISSAN NORTH AMERICA, INC.
