System - Basic Engine Control System

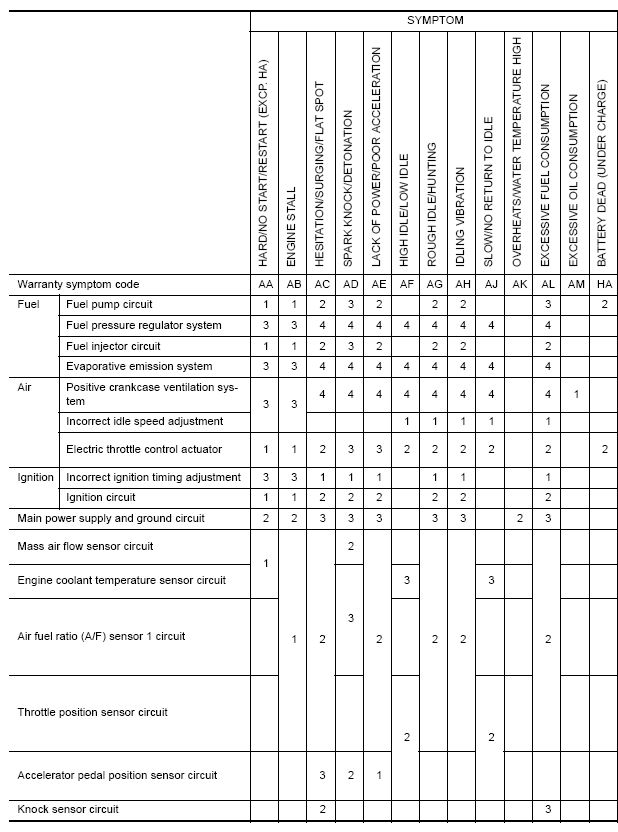

Fig 1: Basic Engine Control System Chart (1 Of 2)
G05369772Courtesy of NISSAN NORTH AMERICA, INC.

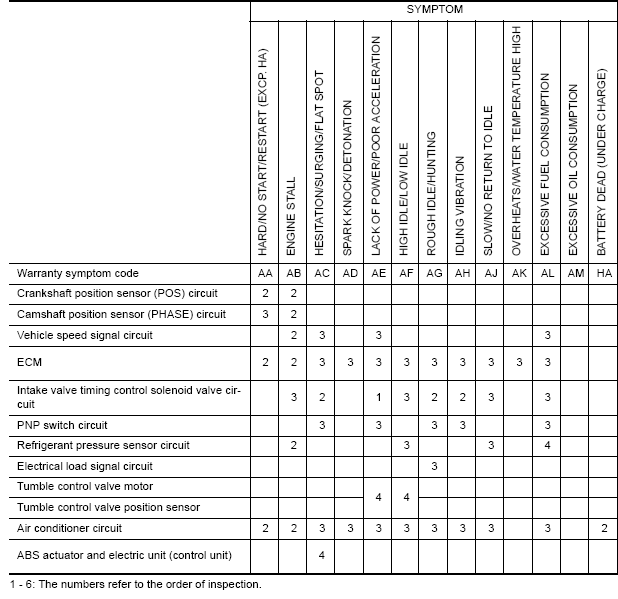

Fig 2: Basic Engine Control System Chart (2 Of 2)
G05369773Courtesy of NISSAN NORTH AMERICA, INC.
