Exploded View: Removal

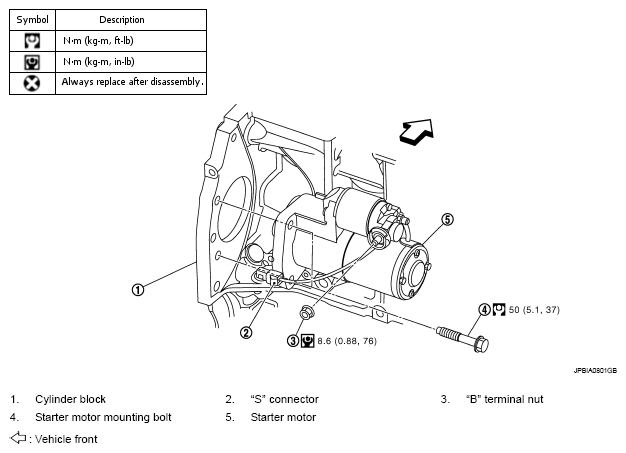

Fig 1: Exploded View Of Starter Motor With Torque Specifications (AWD)
G05369423Courtesy of NISSAN MOTOR CO., U.S.A.
