Component Parts Location

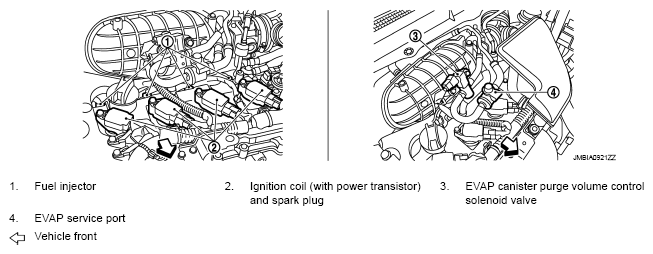

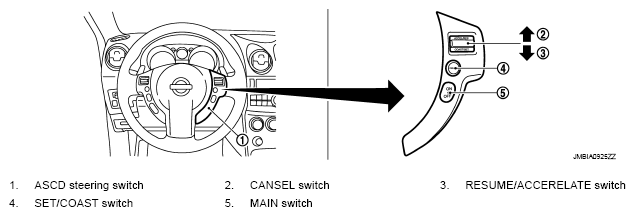

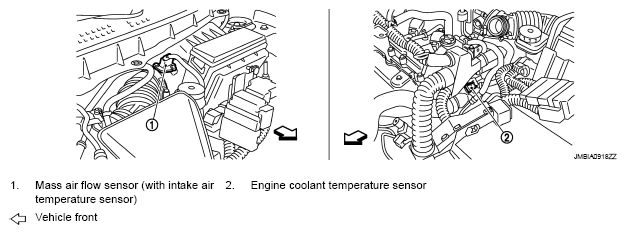

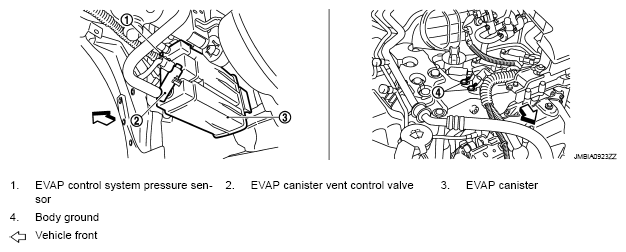

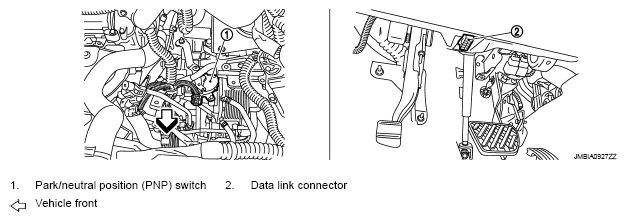

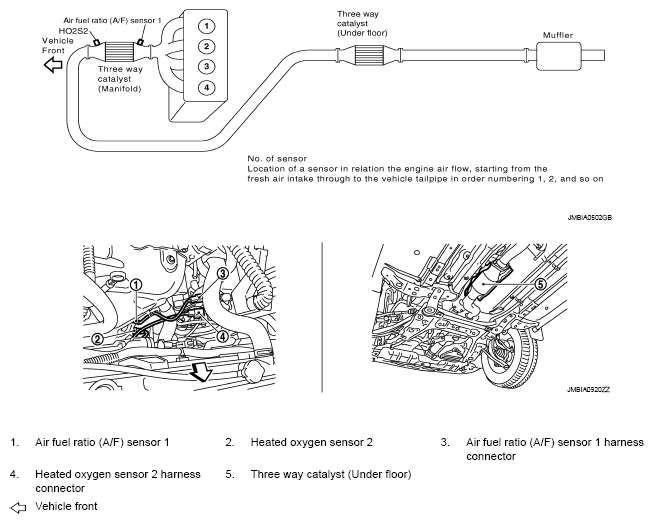

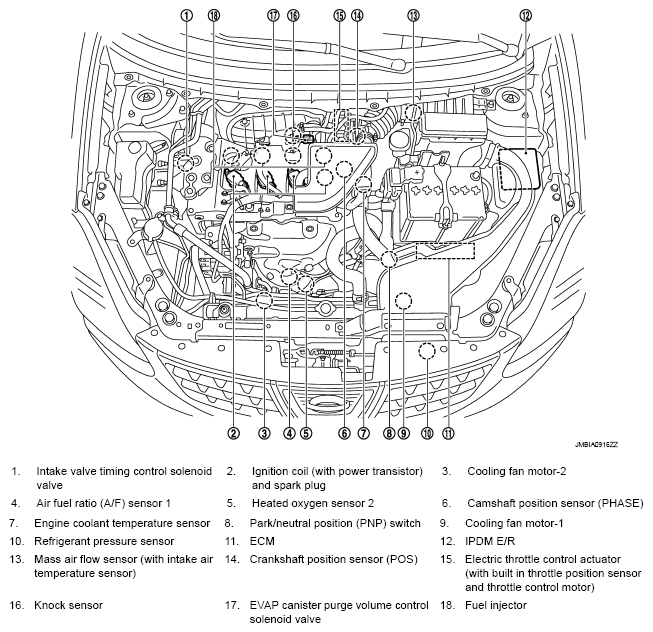

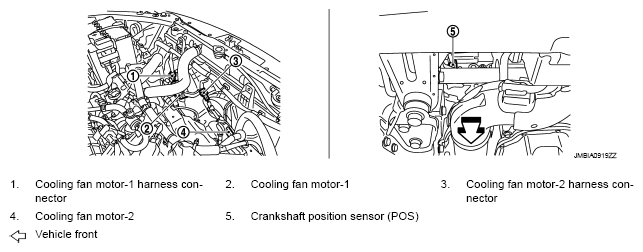

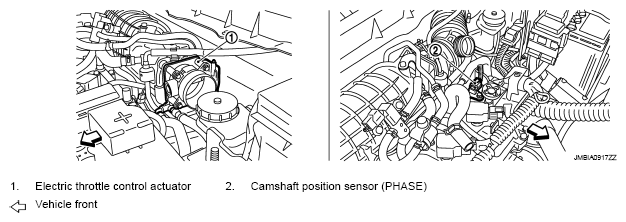

Fig 1: Identifying Automatic Speed Control Device (Ascd) System Components Location (1 Of 12)

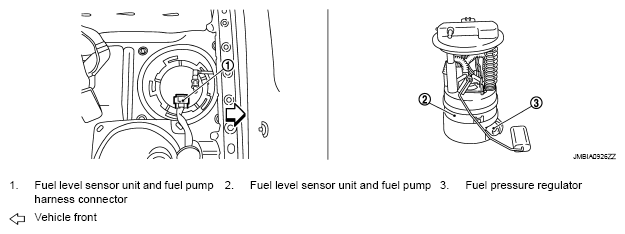

Fig 2: Identifying Automatic Speed Control Device (Ascd) System Components Location (2 Of 12)

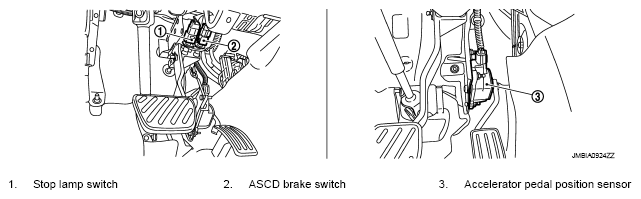

Fig 3: Identifying Automatic Speed Control Device (Ascd) System Components Location (3 Of 12)

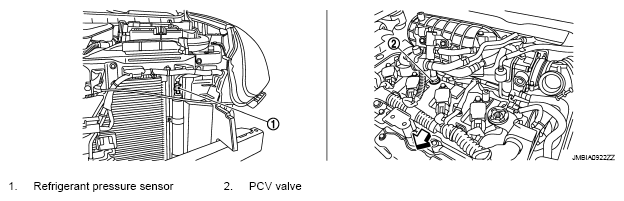

Fig 4: Identifying Automatic Speed Control Device (Ascd) System Components Location (4 Of 12)
Fig 5: Identifying Automatic Speed Control Device (Ascd) System Components Location (5 Of 12)
Fig 6: Identifying Automatic Speed Control Device (Ascd) System Components Location (6 Of 12)
Fig 7: Identifying Automatic Speed Control Device (Ascd) System Components Location (7 Of 12)
Fig 8: Identifying Automatic Speed Control Device (Ascd) System Components Location (8 Of 12)
Fig 9: Identifying Automatic Speed Control Device (Ascd) System Components Location (9 Of 12)
Fig 10: Identifying Automatic Speed Control Device (Ascd) System Components Location (10 Of 12)
Fig 11: Identifying Automatic Speed Control Device (Ascd) System Components Location (11 Of 12)
Fig 12: Identifying Automatic Speed Control Device (Ascd) System Components Location (12 Of 12)
