System Description
ECM controls cooling fan speed corresponding to vehicle speed, engine coolant temperature, refrigerant pressure, air conditioner ON signal. Then control system has 3-step control [HIGH/LOW/OFF].

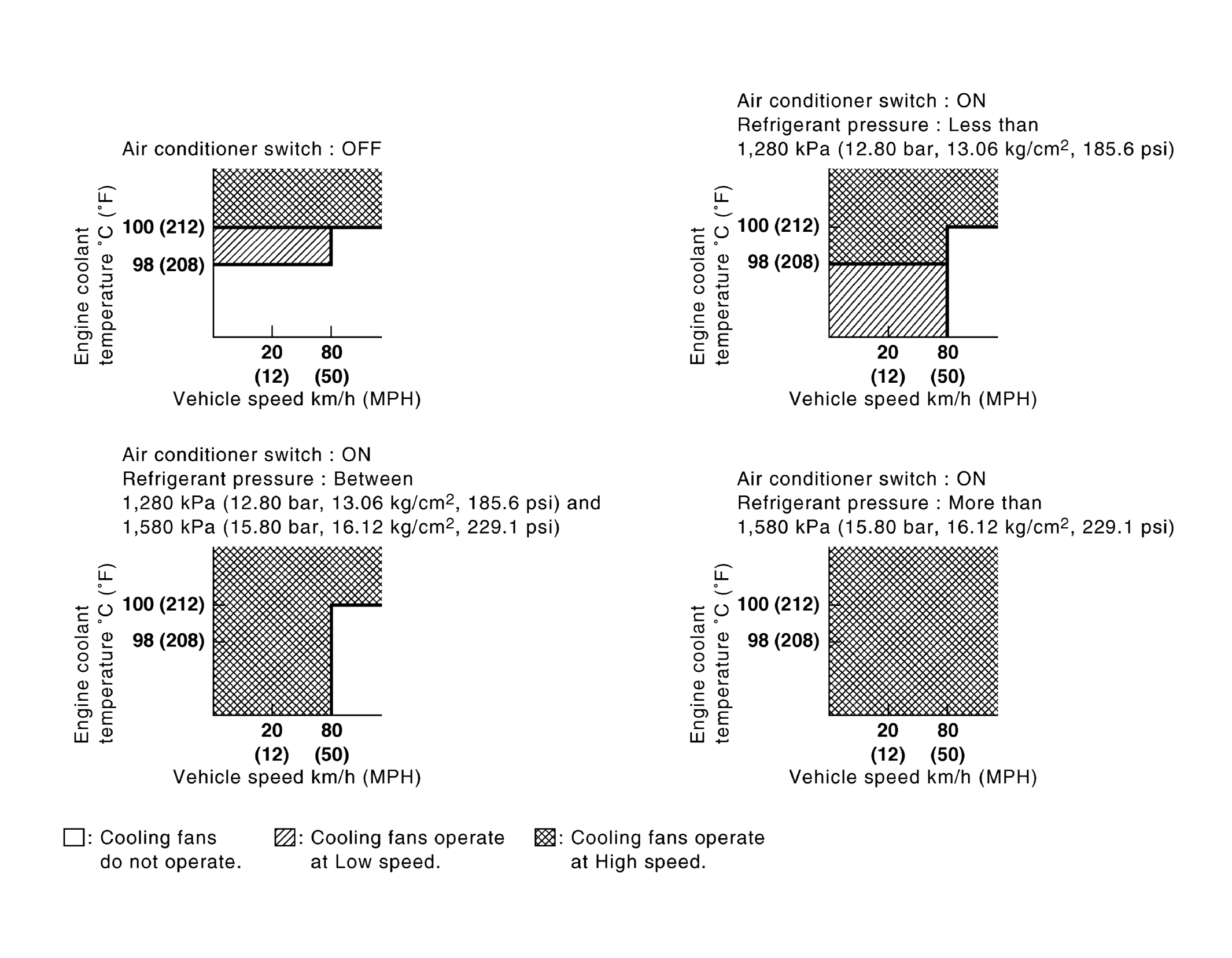

Cooling Fan Operation
Cooling Fan Relay Operation
The ECM controls cooling fan relays through CAN communication line.
REFERENCE CHART
| Cooling fan speed | Cooling fan relay | ||||
|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | |
| Stop (OFF) | OFF | OFF | OFF | OFF | OFF |
| Low (LOW) | OFF | OFF | OFF | ON | OFF |
| High (HI) | ON | ON | ON | OFF | ON |
