Component Parts Location

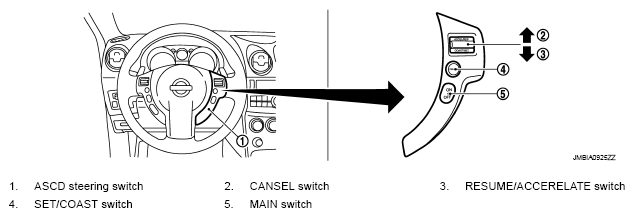

Fig 1: Identifying Engine Control System Components Location (1 Of 12)

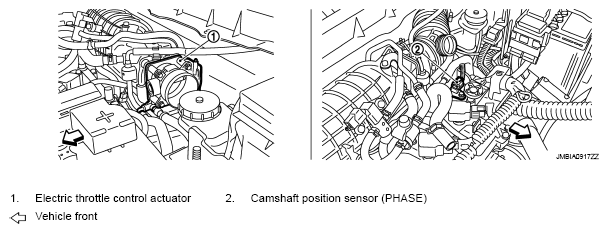

Fig 2: Identifying Engine Control System Components Location (2 Of 12)

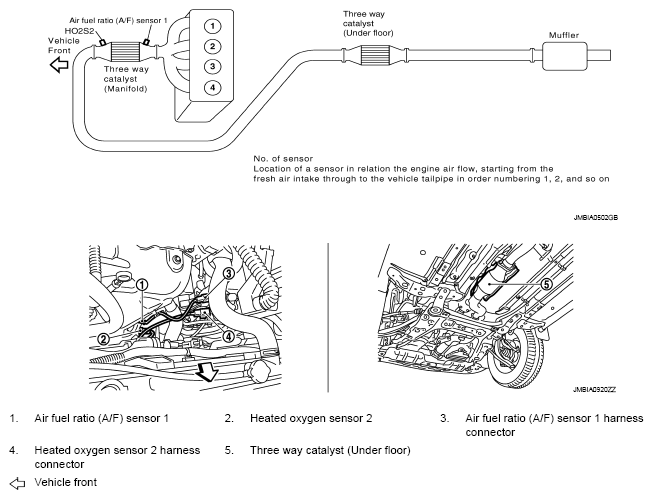

Fig 3: Identifying Engine Control System Components Location (3 Of 12)

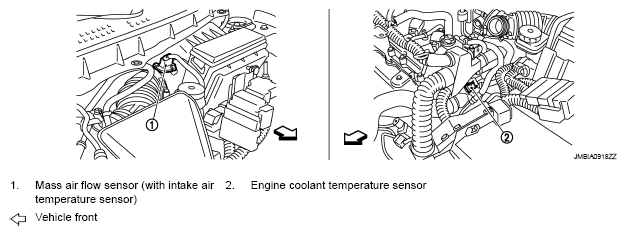

Fig 4: Identifying Engine Control System Components Location (4 Of 12)

Fig 5: Identifying Engine Control System Components Location (5 Of 12)

Fig 6: Identifying Engine Control System Components Location (6 Of 12)

Fig 7: Identifying Engine Control System Components Location (7 Of 12)

Fig 8: Identifying Engine Control System Components Location (8 Of 12)

Fig 9: Identifying Engine Control System Components Location (9 Of 12)

Fig 10: Identifying Engine Control System Components Location (10 Of 12)

Fig 11: Identifying Engine Control System Components Location (11 Of 12)

Fig 12: Identifying Engine Control System Components Location (12 Of 12)
