Component Parts Location

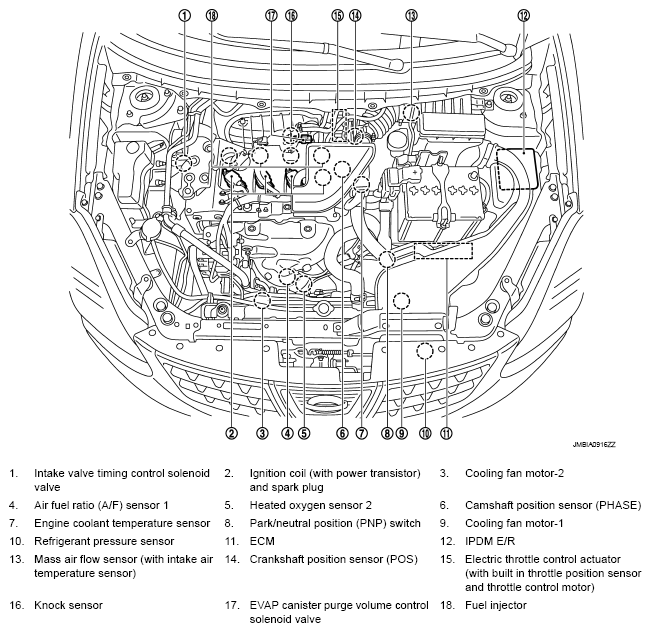

Fig 1: Identifying Cooling Fan Control System Components Location (1 Of 11)
G05369159

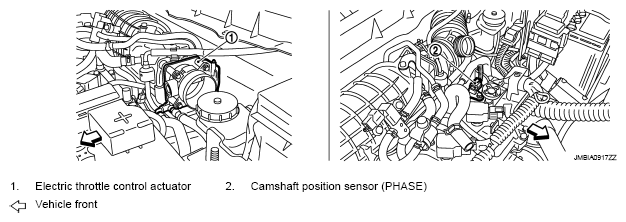

Fig 2: Identifying Cooling Fan Control System Components Location (2 Of 11)
G05369160

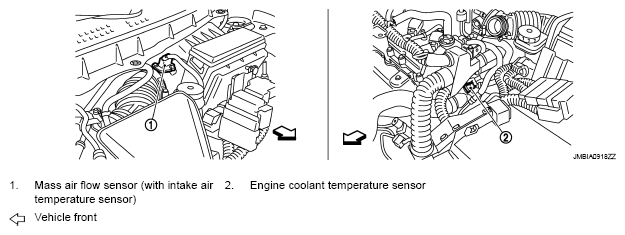

Fig 3: Identifying Cooling Fan Control System Components Location (3 Of 11)
G05369161

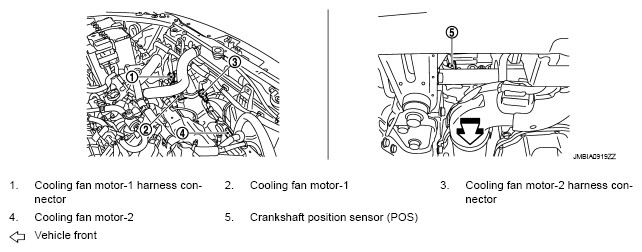

Fig 4: Identifying Cooling Fan Control System Components Location (4 Of 11)
G05369162

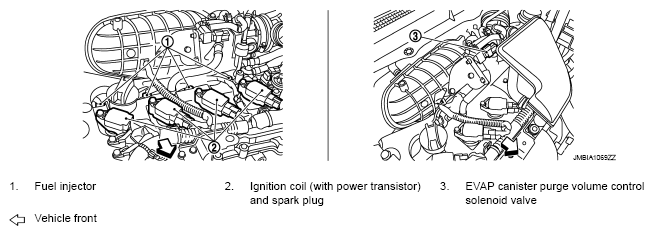

Fig 5: Identifying Cooling Fan Control System Components Location (5 Of 11)
G05369163

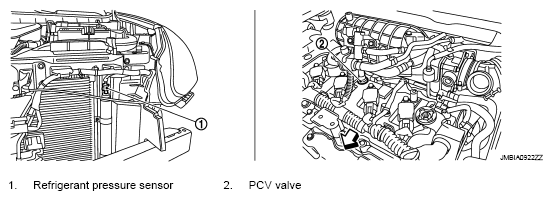

Fig 6: Identifying Cooling Fan Control System Components Location (6 Of 11)
G05369164

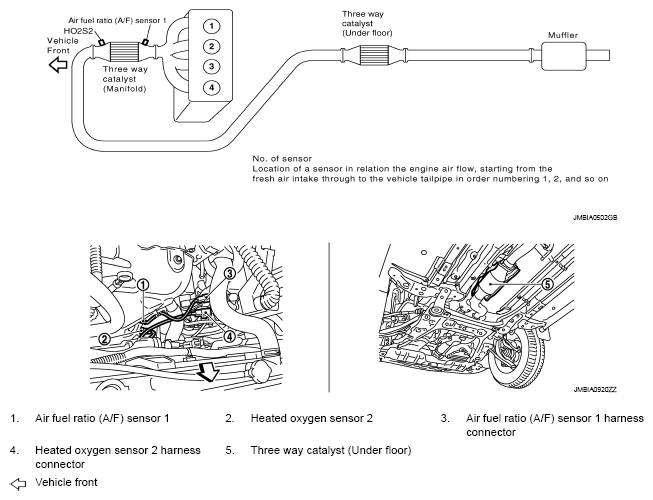

Fig 7: Identifying Cooling Fan Control System Components Location (7 Of 11)
G05369165

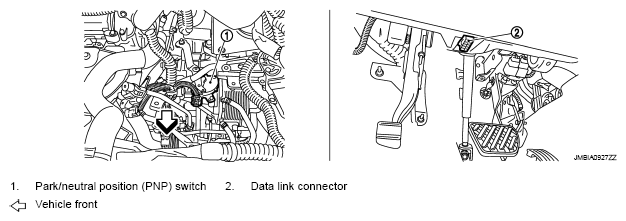

Fig 8: Identifying Cooling Fan Control System Components Location (8 Of 11)
G05369166

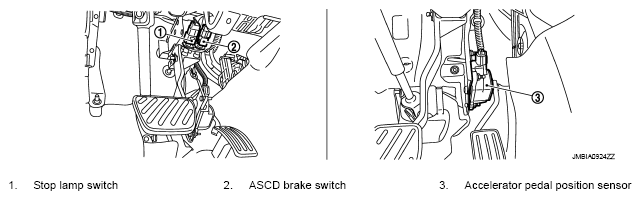

Fig 9: Identifying Cooling Fan Control System Components Location (9 Of 11)
G05369167
Fig 10: Identifying Cooling Fan Control System Components Location (10 Of 11)
G05369168
Fig 11: Identifying Cooling Fan Control System Components Location (11 Of 11)
G05369169
