Exploded View

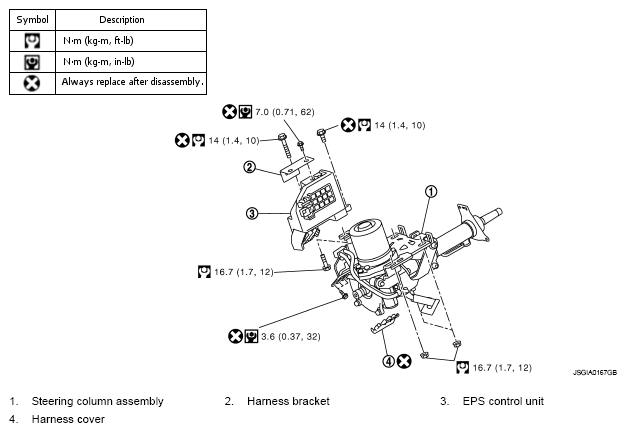

Fig 1: Exploded View Of EPS Control Unit With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
