Component Inspection

1. Turn ignition switch OFF.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Check resistance between intake valve timing control solenoid valve terminals as follows.
   TERMINALS RESISTANCE REFERENCE



   Terminals	Resistance
   1 and 2	7.0 - 7.5Ω [at 20°C (68°F)]
   1 or 2 and ground	∞ Ω (Continuity should not exist)

Is the inspection result normal?

YES: GO TO 2.

NO: Replace intake valve timing control solenoid valve.

1. Remove intake valve timing control solenoid valve.
2. Provide 12V DC between intake valve timing control solenoid valve terminals 1 and 2, and then interrupt it. Make sure that the plunger moves as shown in the figure.
   CAUTION: Do not apply 12V DC continuously for 5 seconds or more. Doing so may result in damage to the coil in intake valve timing control solenoid valve.

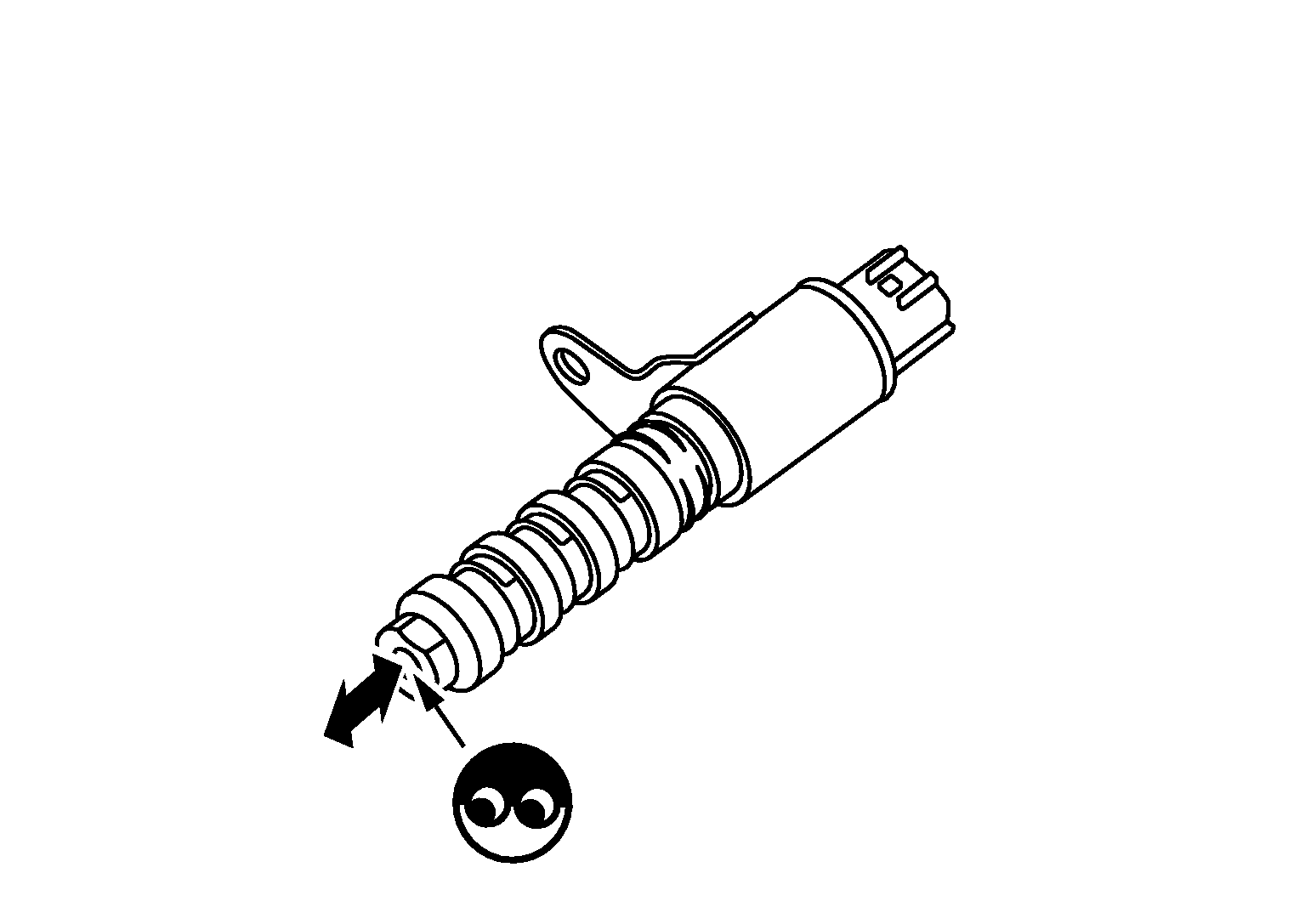

   Fig 1: Identifying Intake Valve Timing Control Solenoid Valve


   NOTE: Always replace O-ring when intake valve timing control solenoid valve is removed.

Is the inspection result normal?

YES: INSPECTION END

NO: Replace intake valve timing control solenoid valve.
