Component Parts Location

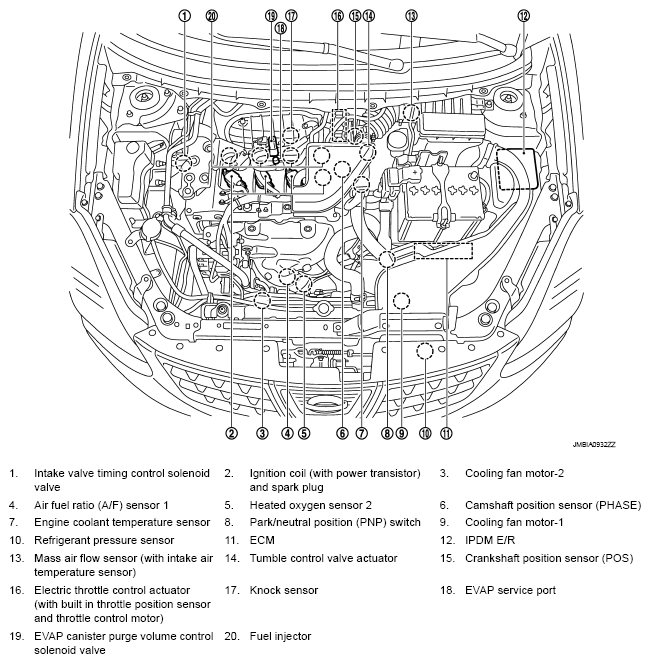

Fig 1: Identifying Electric Ignition System Components Location (1 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

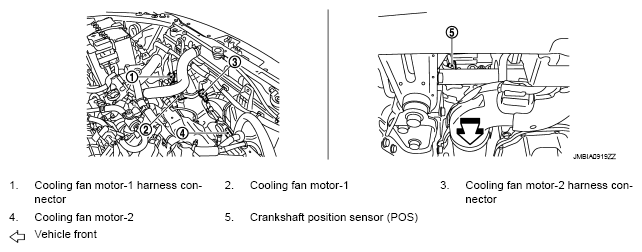

Fig 2: Identifying Electric Ignition System Components Location (2 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

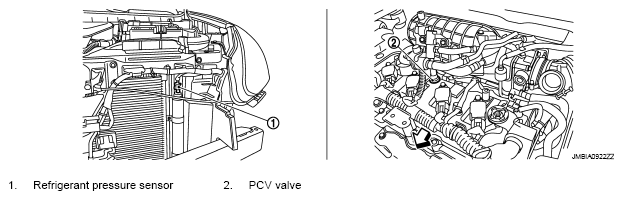

Fig 3: Identifying Electric Ignition System Components Location (3 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

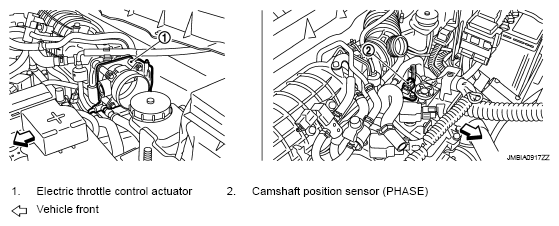

Fig 4: Identifying Electric Ignition System Components Location (4 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

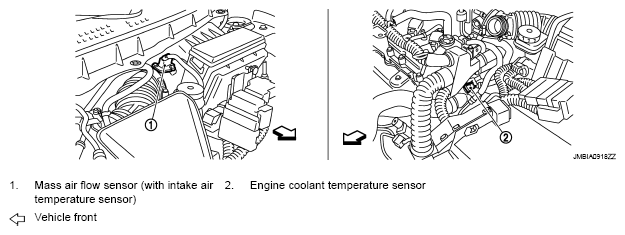

Fig 5: Identifying Electric Ignition System Components Location (5 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Electric Ignition System Components Location (6 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Electric Ignition System Components Location (7 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying Electric Ignition System Components Location (8 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Electric Ignition System Components Location (9 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Electric Ignition System Components Location (10 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Electric Ignition System Components Location (11 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Electric Ignition System Components Location (12 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Electric Ignition System Components Location (13 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.
