Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns Except For "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"

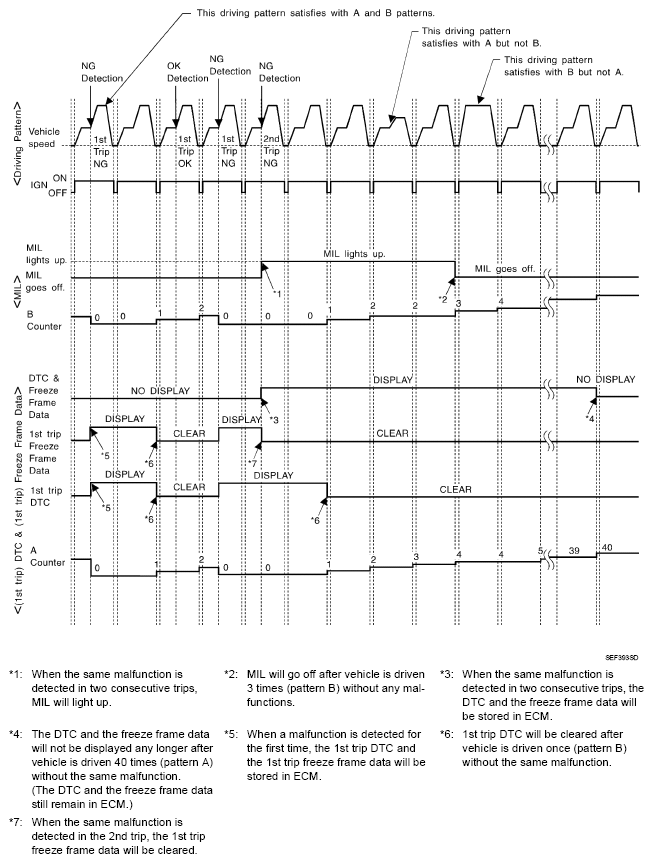

Fig 1: Relationship Between MIL, DTC, 1St Trip DTC - Driving Patterns (Except Misfire)

Courtesy of NISSAN MOTOR CO., U.S.A.
