Removal and Installation: Installation

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Set key interlock cable to key cylinder and install holder.
Turn ignition key to "LOCK" position.
Set selector lever to "P" position.

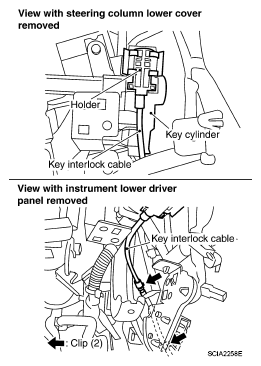

Fig 1: Identifying Key Interlock Cable To Key Cylinder And Holder
Insert interlock rod into adjuster holder.

Fig 2: Inserting Interlock Rod Into Adjuster Holder
Install casing cap to bracket.
Move slider in order to secure adjuster holder to interlock rod.
