Removal and Installation: Removal

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock slider from adjuster holder by squeezing lock tabs.
  2. Remove casing cap from bracket of control device assembly and remove interlock rod from adjuster holder.
    Fig 1: Identifying Casing Cap From Bracket Of Control Device Assembly
    G04875901
  3. Remove holder from key cylinder and remove key interlock cable.

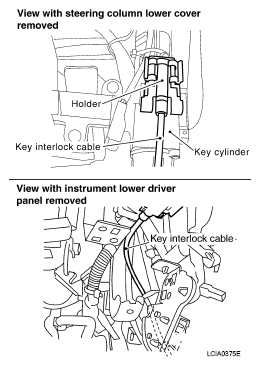

    Fig 2: Identifying Holder From Key Cylinder And Key Interlock Cable
    G04898045
