Assembly (2)

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

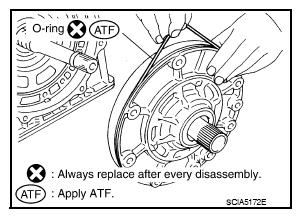

Install O-ring to oil pump assembly.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

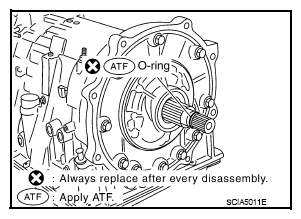

  Fig 1: Removing/Installing Oil Pump Assembly O-Ring
  Courtesy of NISSAN NORTH AMERICA, INC.
Install bearing race to oil pump assembly.
CAUTION: Apply petroleum jelly to bearing race.

Fig 2: Identifying Oil Pump Assembly Bearing Race
Courtesy of NISSAN NORTH AMERICA, INC.
Install oil pump assembly in transmission case.
CAUTION: Apply ATF to oil pump bearing.

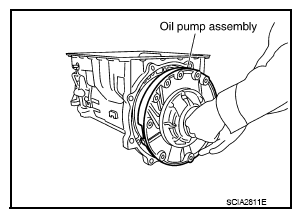

Fig 3: Installing Transmission Case Oil Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Apply recommended sealant (Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to oil pump assembly as shown.
CAUTION: Completely remove all moisture, oil, old sealant and any foreign material from the oil pump bolts and oil pump bolt mating surfaces.

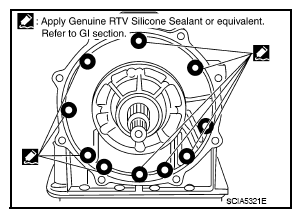

Fig 4: Identifying Sealant Applying Areas On Oil Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install O-ring to input clutch assembly.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 5: Identifying Input Clutch Assembly O-Ring
  Courtesy of NISSAN NORTH AMERICA, INC.

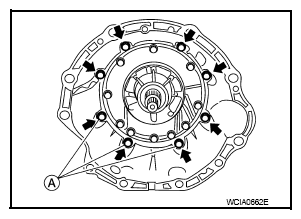

Tighten oil pump bolts to specified torque.
Oil pump bolts: 48 N.m (4.9 kg-m, 35 ft-lb)

CAUTION: Apply ATF to oil pump bushing.

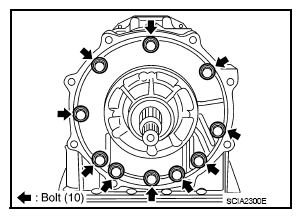

Fig 6: Locating Transmission Case Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Install converter housing to transmission case and tighten bolts to specified torque.
Converter housing bolt: 52 N.m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt (A): 61 N.m (6.2 kg-m, 45 ft-lb)

CAUTION: Do not reuse self-sealing bolt (A).

Fig 7: Locating Self-Sealing Bolt
Courtesy of NISSAN NORTH AMERICA, INC.
Make sure that brake band (1) does not close input speed sensor hole (A).

Fig 8: Identifying Brake Band And Input Speed Sensor Hole
Courtesy of NISSAN NORTH AMERICA, INC.
Connect TCM connector (1) and transmission range switch connector (2).

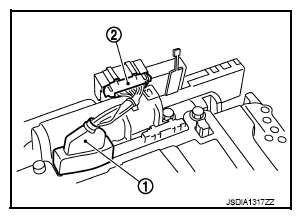

Fig 9: Identifying TCM And Transmission Range Switch Connectors
Courtesy of NISSAN NORTH AMERICA, INC.
Install A/T assembly harness connector to control valve with TCM.

Fig 10: Installing A/T Assembly Harness Connector
Courtesy of NISSAN NORTH AMERICA, INC.

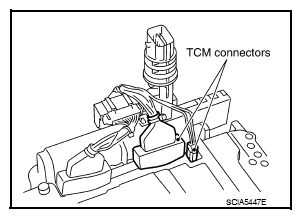

Connect TCM connectors.

Fig 11: Identifying TCM Connectors
Courtesy of NISSAN NORTH AMERICA, INC.

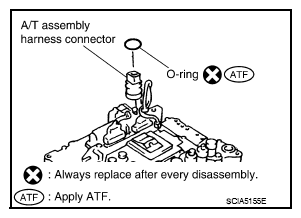

Install O-ring to A/T assembly harness connector.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 12: Identifying O-Ring In A/T Assembly Harness Connector
  Courtesy of NISSAN NORTH AMERICA, INC.

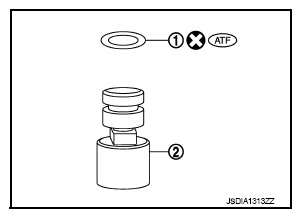

Install new O-ring (1) in plug (2).
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
- O-ring should be free of contamination.

  Fig 13: Identifying O-Ring And Plug
  Courtesy of NISSAN NORTH AMERICA, INC.

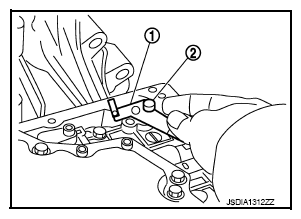

Install plug (2) to bracket (1).

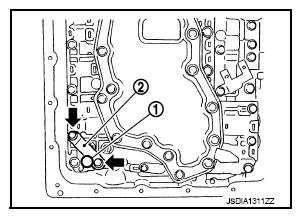

Fig 14: Removing/Installing Plug Bracket
Courtesy of NISSAN NORTH AMERICA, INC.
Install plug (1) [with bracket (2)] to control valve with TCM and tighten bolt (<=) to specified torque.
Bracket bolt: 7.9 N.m (0.81 kg-m, 70 in-lb)

CAUTION: Adjust bolt hole of bracket to bolt hole of control valve.

Fig 15: Locating TCM Control Valve Bracket Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.

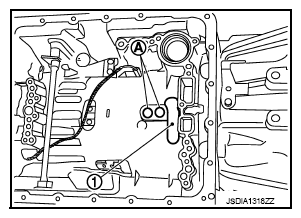

Install control valve with TCM in transmission case.

Fig 16: Identifying TCM Control Valve And Input Speed Sensor Hole
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Make sure that input speed sensor is securely installed into input speed sensor hole (A).
- Hang down output speed sensor harness toward outside so as not to disturb installation of control valve with TCM.
- Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.

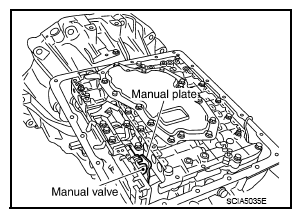

- Assemble it so that manual valve cutout is engaged with manual plate projection.

  Fig 17: Identifying Manual Valve And Plate
  Courtesy of NISSAN NORTH AMERICA, INC.

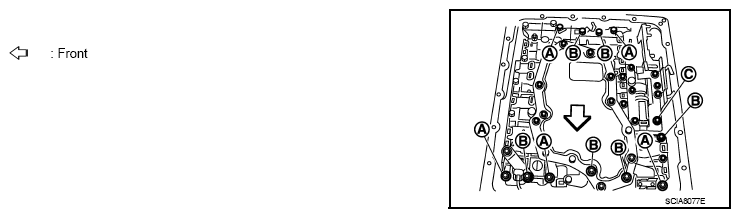

Install bolts (A), (B) and (C) to control valve with TCM.

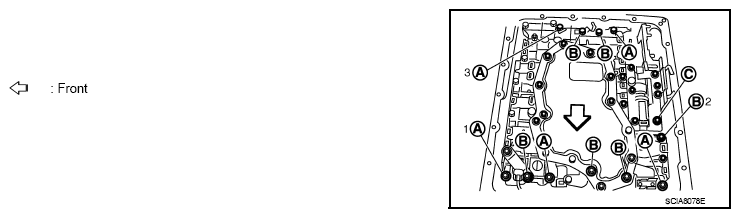

Fig 18: Identifying TCM Control Valve Mounting Bolts

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

Tighten bolt (A), (B) and (C) temporarily to prevent dislocation. After that tighten them in order (A → B → C), and then tighten other bolts.

Fig 19: Identifying TCM Control Valve Mounting Bolts Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt symbol	A	B	C
Number of bolts	5	6	1
Length mm (in)	42 (1.65)	55 (2.17)	40 (1.57)
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		With ATF applied
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		7.9 (0.81, 70)

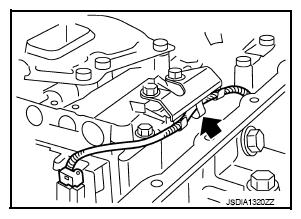

Connect output speed sensor connector (1).

Fig 20: Identifying Output Speed Sensor Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Securely fasten output speed sensor harness with terminal clip (<=).

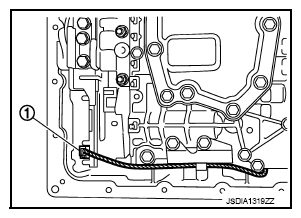

Fig 21: Locating Output Speed Sensor Harness Clip
Courtesy of NISSAN NORTH AMERICA, INC.

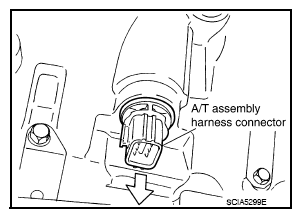

Pull down A/T assembly harness connector.
CAUTION: Do not damage connector.

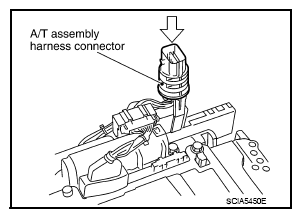

Fig 22: Pulling A/T Assembly Harness Connector
Courtesy of NISSAN NORTH AMERICA, INC.

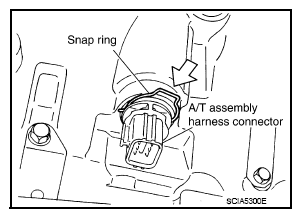

Install snap ring to A/T assembly harness connector.

Fig 23: Identifying A/T Assembly Harness Connector And Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.

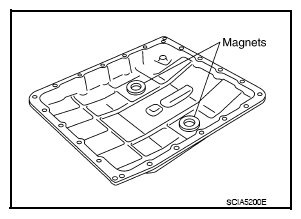

Install magnets in oil pan.

Fig 24: Identifying Oil Pan Magnets
Courtesy of NISSAN NORTH AMERICA, INC.
Install oil pan to transmission case. Refer to "REMOVAL AND INSTALLATION ".
Install torque converter.

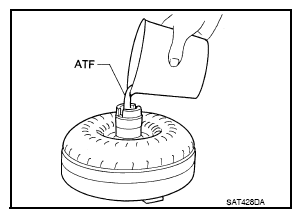

1. Pour ATF into torque converter.
  NOTE:
  - Approximately 2 liters (2-1/8 US qt. 1-3/4 Imp qt) of fluid is required for a new torque converter.
  - When reusing old torque converter, add the same amount of fluid as was drained.

    Fig 25: Pouring ATF Into Torque Converter
    Courtesy of NISSAN NORTH AMERICA, INC.

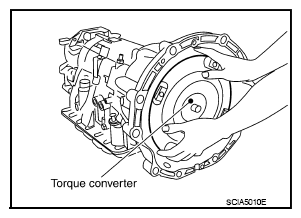

2. Install torque converter while aligning notches of torque converter with notches of oil pump.
  CAUTION: Install torque converter while rotating it.

  Fig 26: Removing/Installing Torque Converter
  Courtesy of NISSAN NORTH AMERICA, INC.

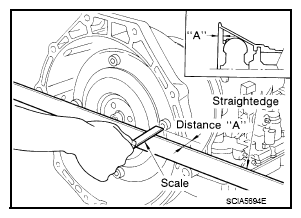

3. Measure distance "A" to make sure that torque converter is in proper position.
  Distance "A"

  VQ40DE models: 25.0 mm (0.98 in) or more

  VK56DE models: 24.0 mm (0.94 in) or more

  Fig 27: Measuring Torque Converter Distance
  Courtesy of NISSAN NORTH AMERICA, INC.
