Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install dish plate, retaining plates, drive plates and driven plates in direct clutch drum.
CAUTION: Take care with order of plates.
- VQ40DE models
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Dish plate (5)
- Drive plate/Driven plate: 5/5

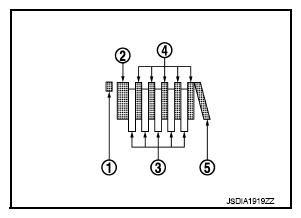

  Fig 1: Identifying Snap Ring, Dish, Drive, Driven And Retaining Plates (VQ40DE Models)
  Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Take care with order of plates.
- VK56DE models
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Drive plate/Driven plate: 6/6

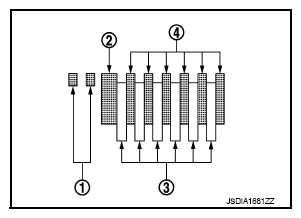

  Fig 2: Identifying Snap Ring, Drive, Driven And Retaining Plates (VK56DE Models)
  Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring in direct clutch drum using suitable tool.

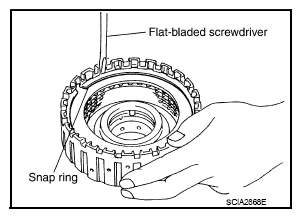

Fig 3: Removing/Installing High And Low Reverse Clutch Drum Snap Ring Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
