Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

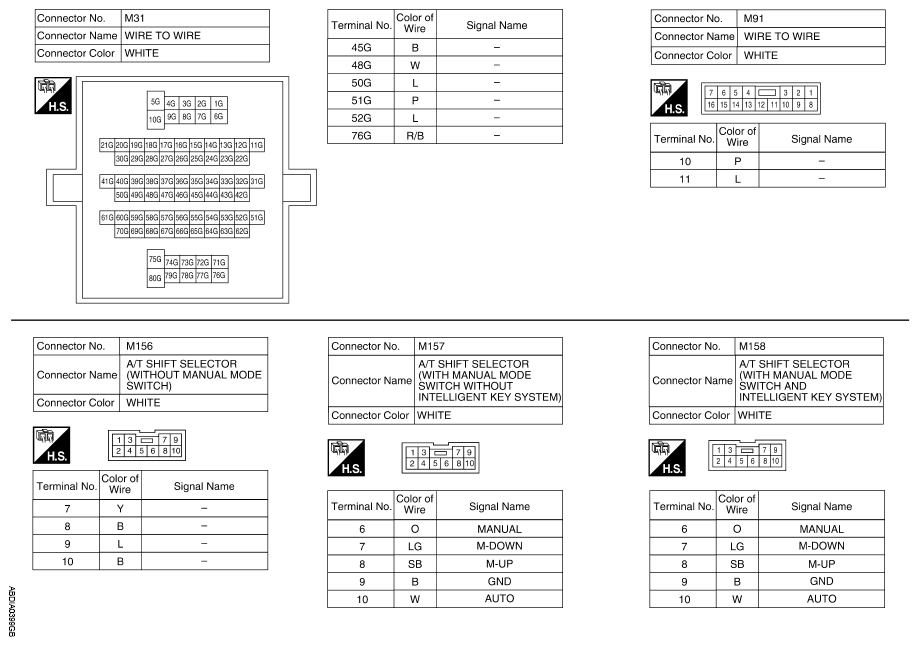

Fig 1: Identifying A/T Control System Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

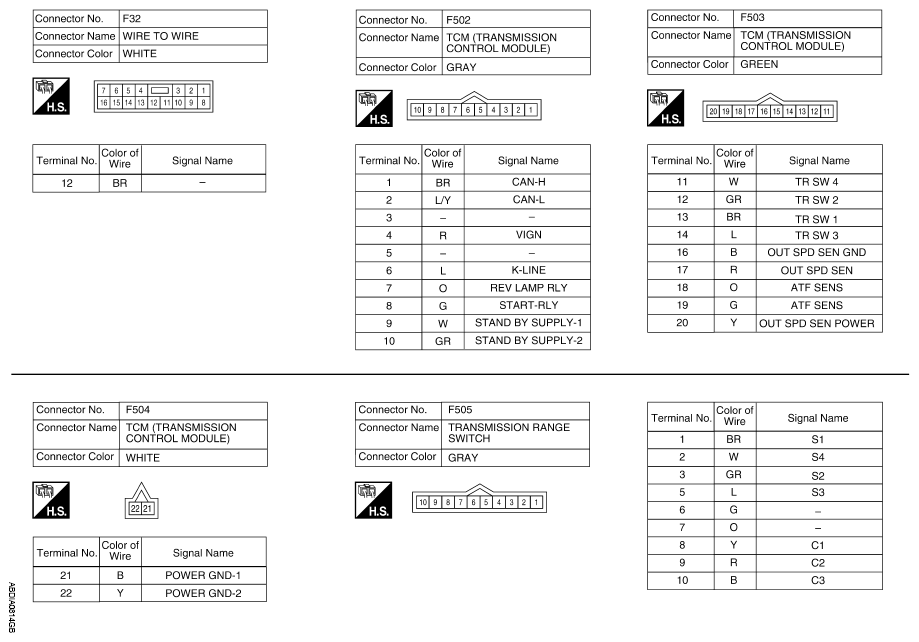

Fig 2: Identifying A/T Control System Connectors (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

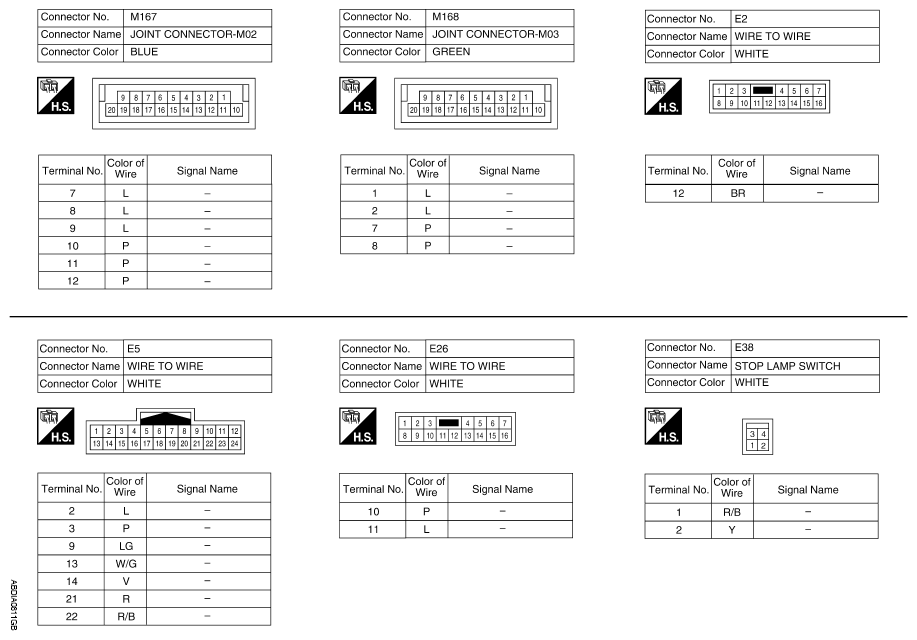

Fig 3: Identifying A/T Control System Connectors (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

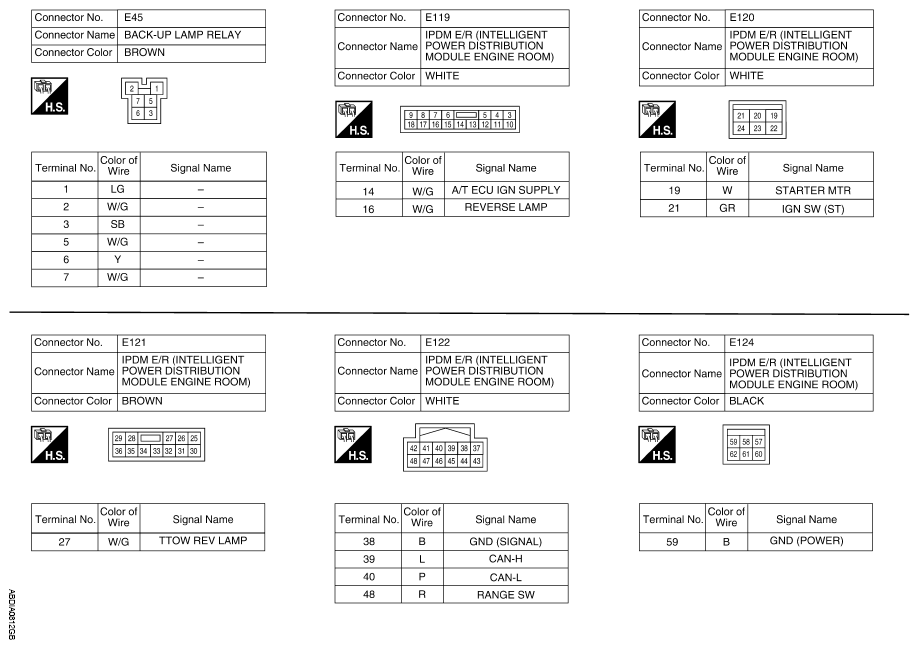

Fig 4: Identifying A/T Control System Connectors (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

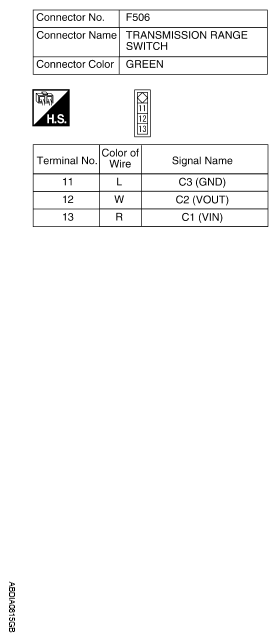

Fig 5: Identifying A/T Control System Connectors (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

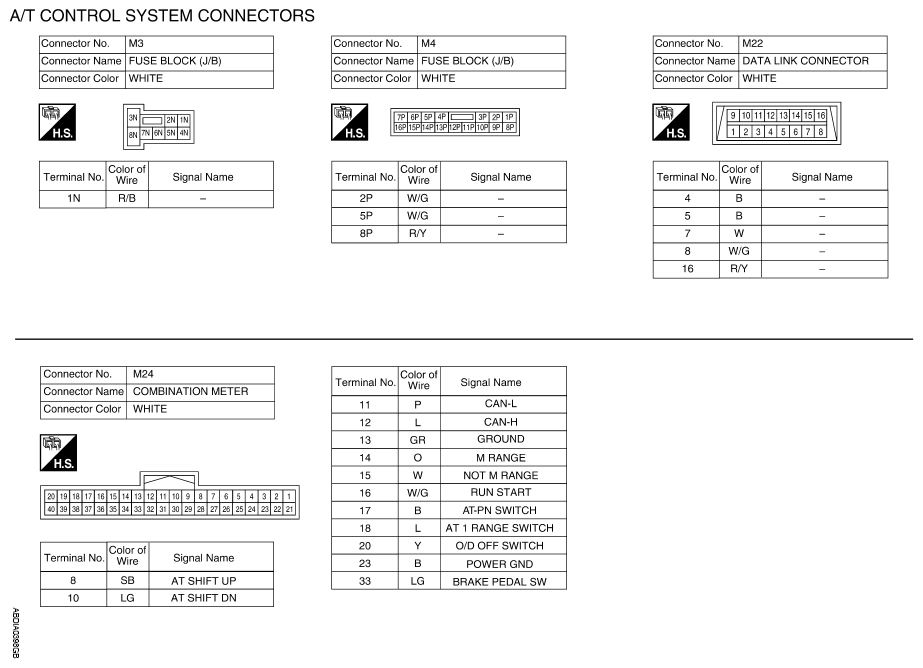

Fig 6: Identifying A/T Control System Connectors (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

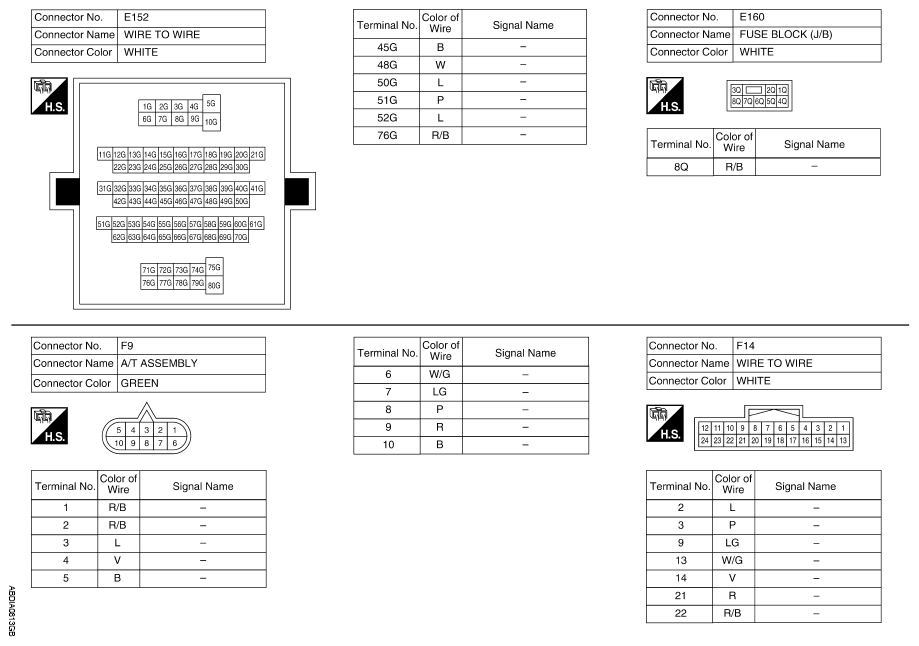

Fig 7: Identifying A/T Control System Connectors (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
