WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

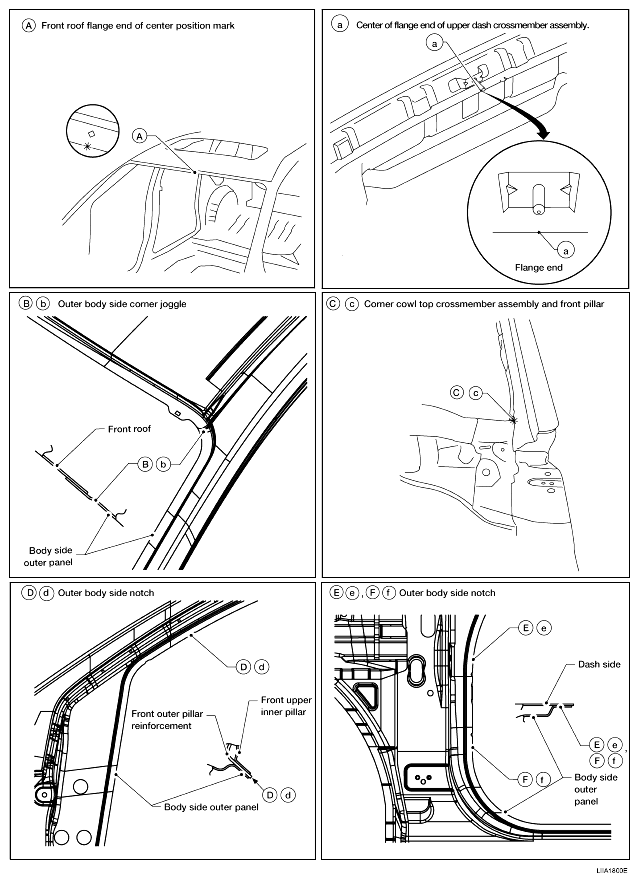

Fig 1: Identifying Passenger Compartment Measurement Points (1 Of 3)

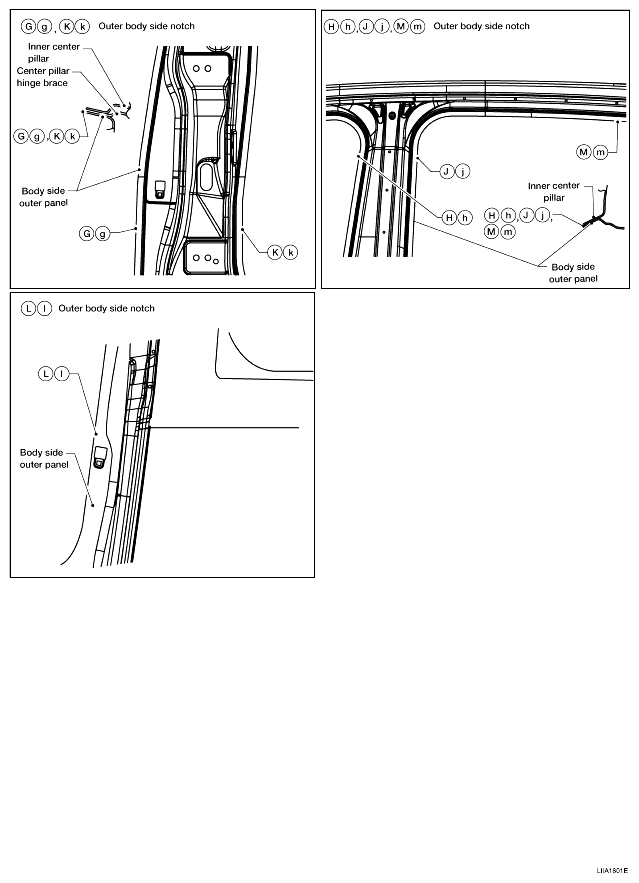

Fig 2: Identifying Passenger Compartment Measurement Points (2 Of 3)

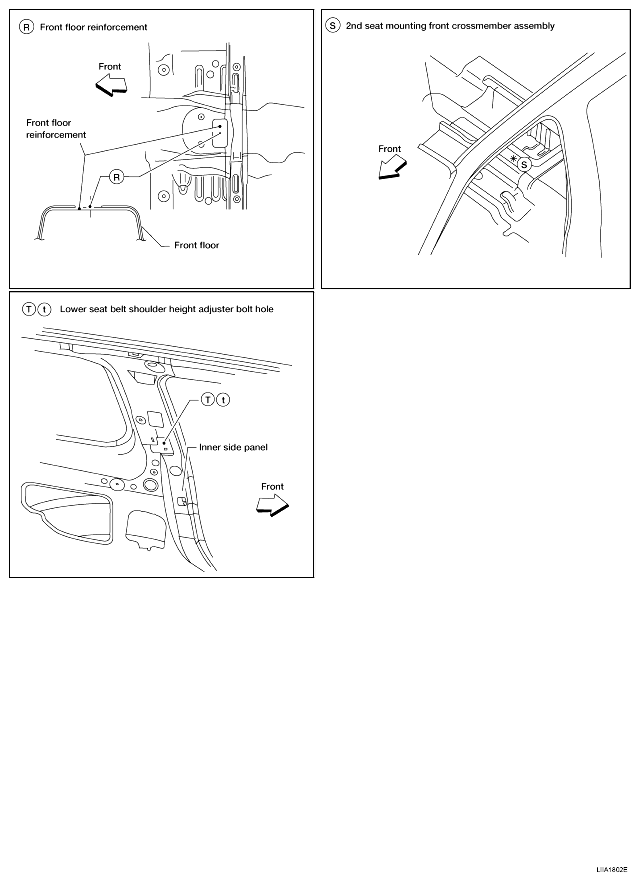

Fig 3: Identifying Passenger Compartment Measurement Points (3 Of 3)
