Fill Procedures

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

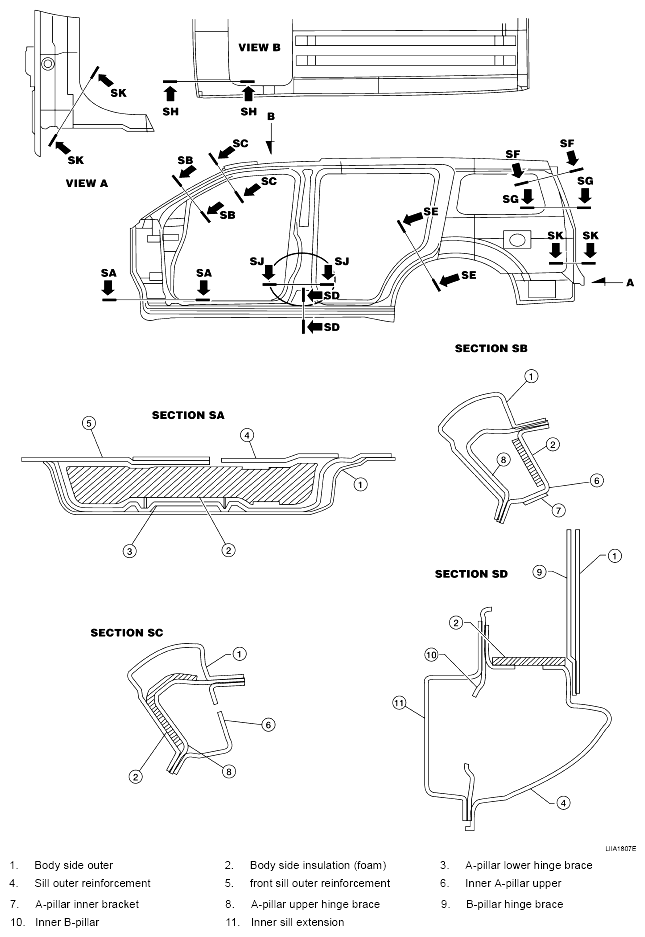

Fig 1: Identifying Sectional View Of Fill Procedures (2 Of 2)
G04912881

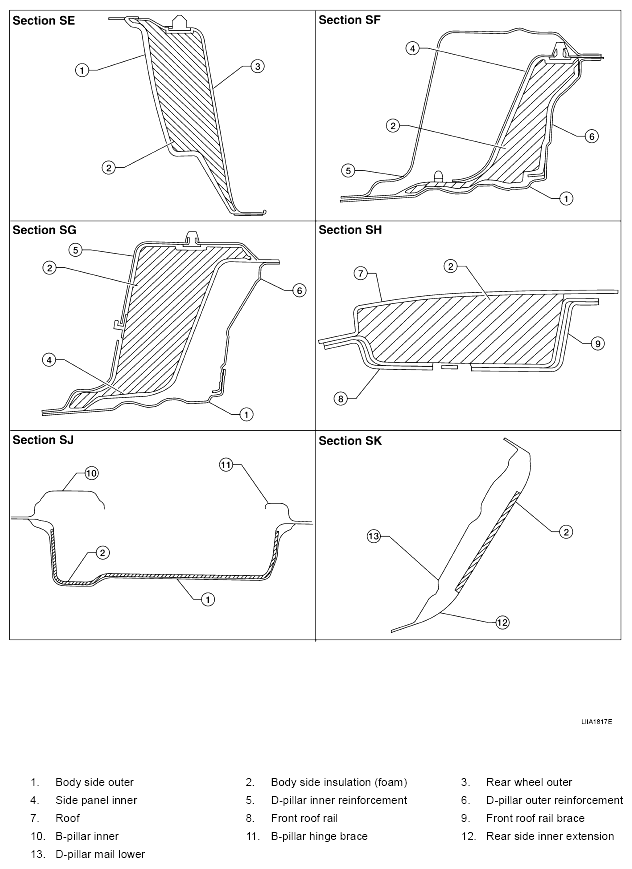

Fig 2: Identifying Sectional View Of Fill Procedures (2 Of 2)
G04912882
  1. Fill procedures after installation of service part.
    • Remove foam material remaining on vehicle side.
    • Clean area in which foam was removed.
    • Install service part.
    • Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service part.

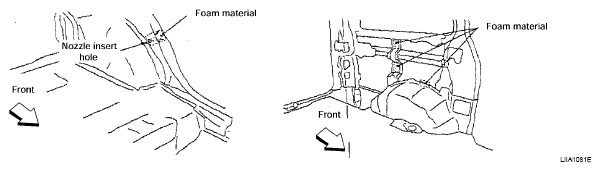

      Fig 3: Caution - Inserting Nozzle Into Hole
      G04902684
  2. Fill procedures before installation of service part.
    • Remove foam material remaining on vehicle side.
    • Clean area in which foam was removed.
    • Fill foam material on wheelhouse outer side.
      NOTE: Fill in enough to close gap with service part while avoiding flange area.
    • Install service part.
      NOTE: Refer to label for information on working times.
      Fig 4: Filling Foam Material On Wheelhouse Outer Side
      G04902685
