Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

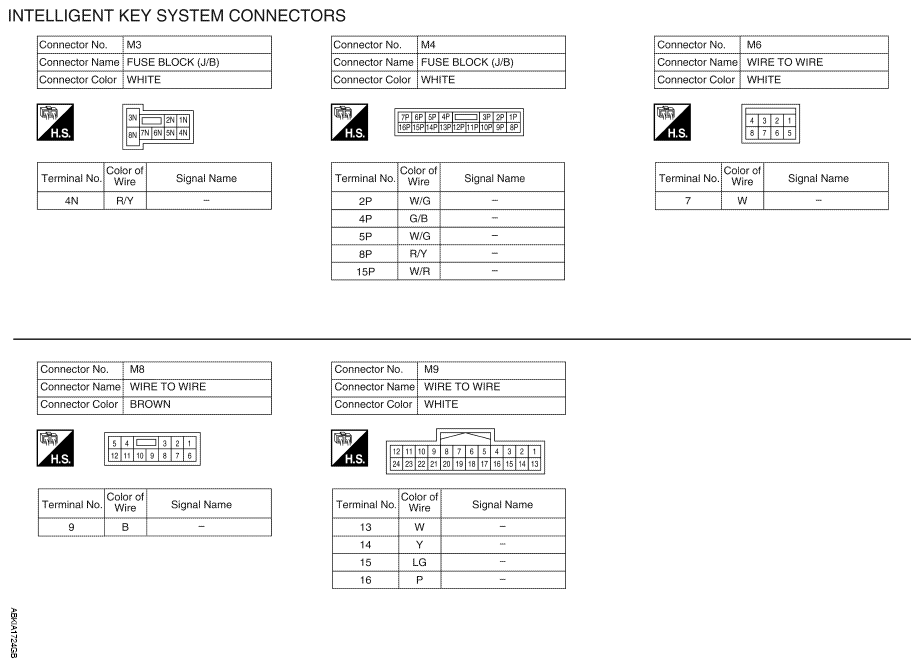

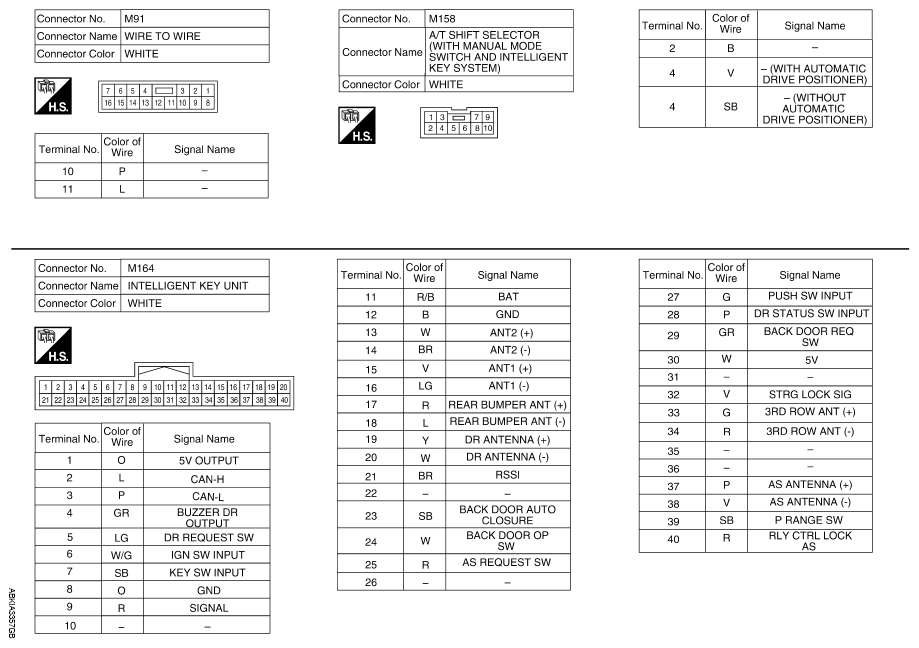

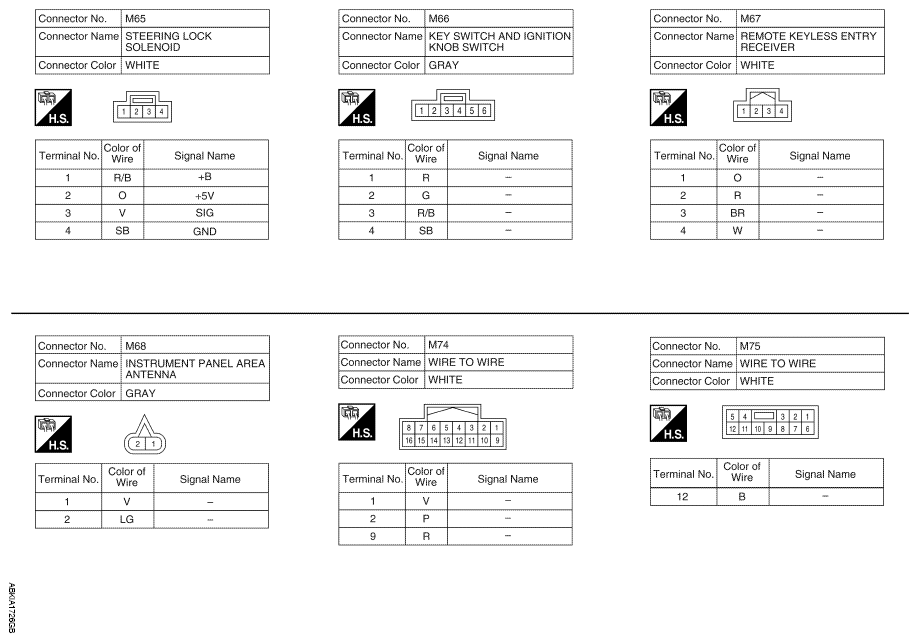

Fig 1: Identifying Intelligent Key System Connectors (1 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

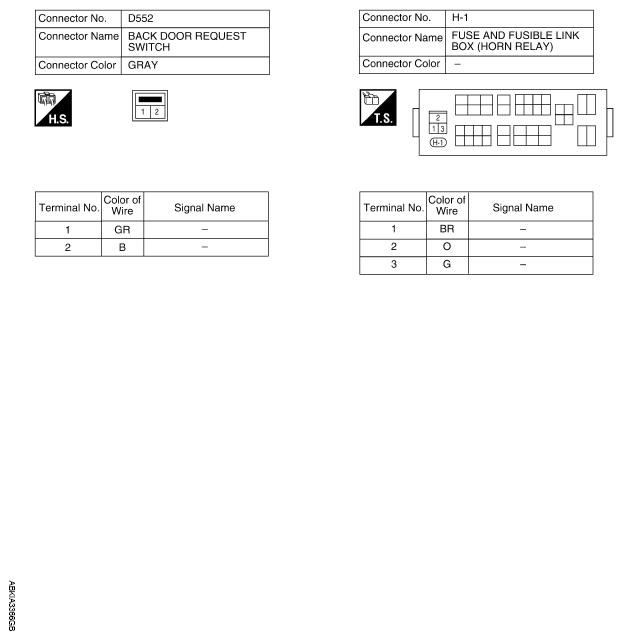

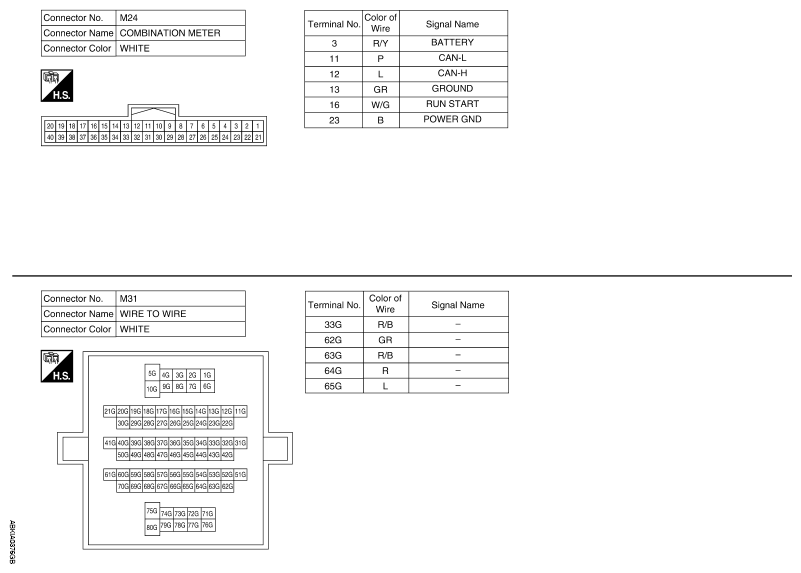

Fig 2: Identifying Intelligent Key System Connectors (2 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

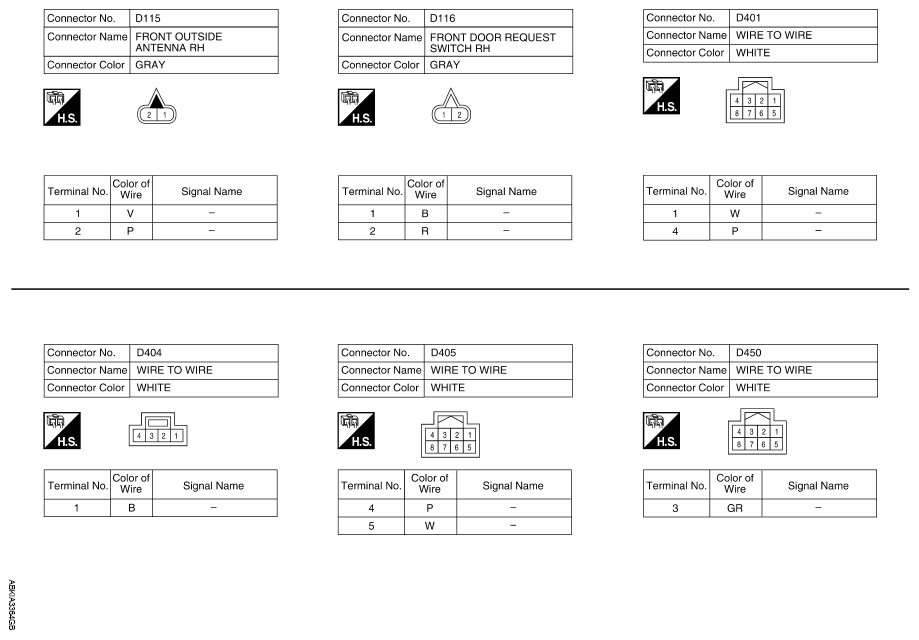

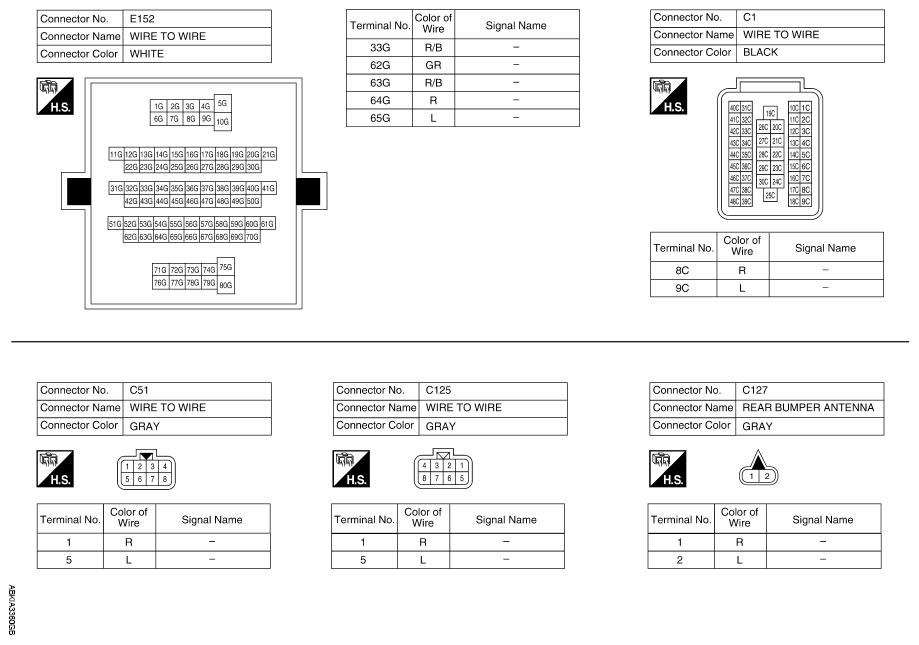

Fig 3: Identifying Intelligent Key System Connectors (3 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

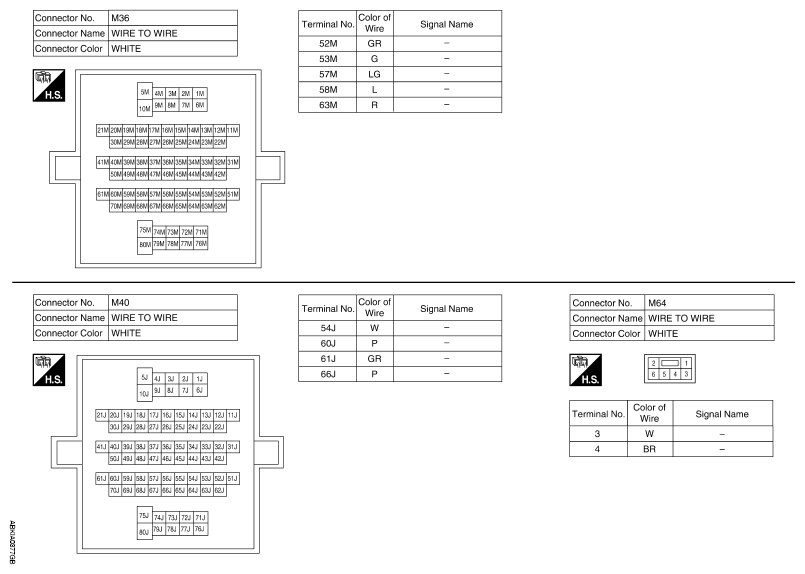

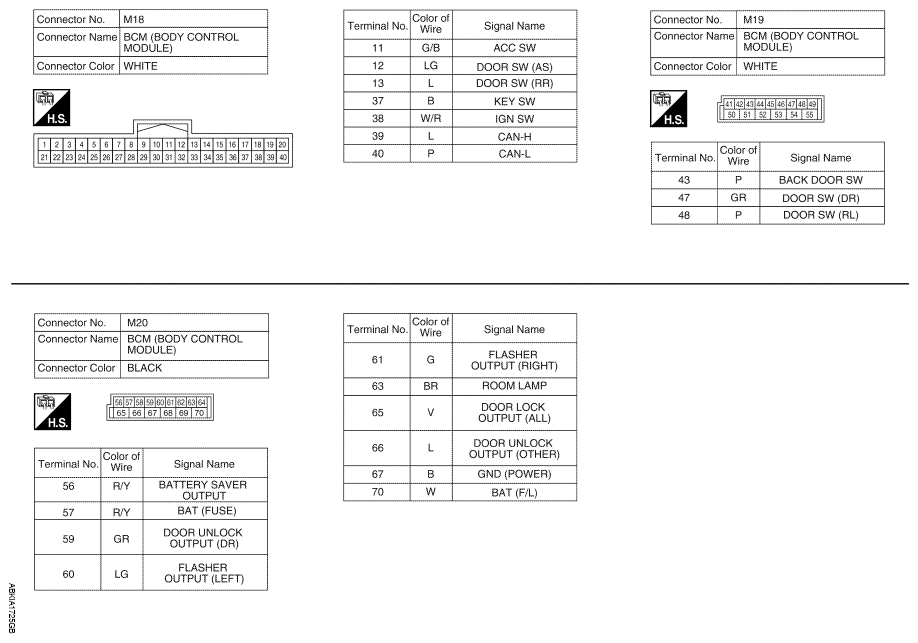

Fig 4: Identifying Intelligent Key System Connectors (4 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

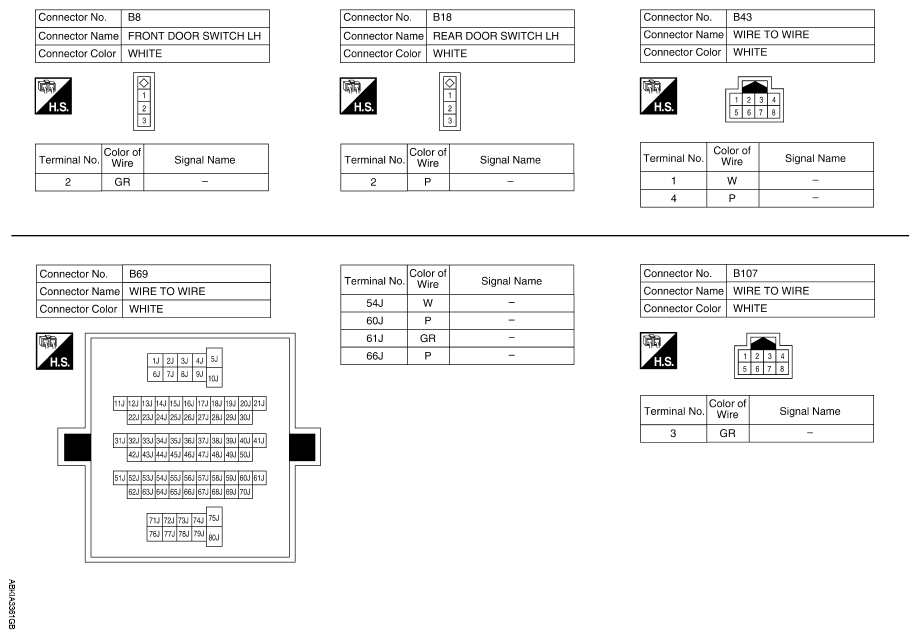

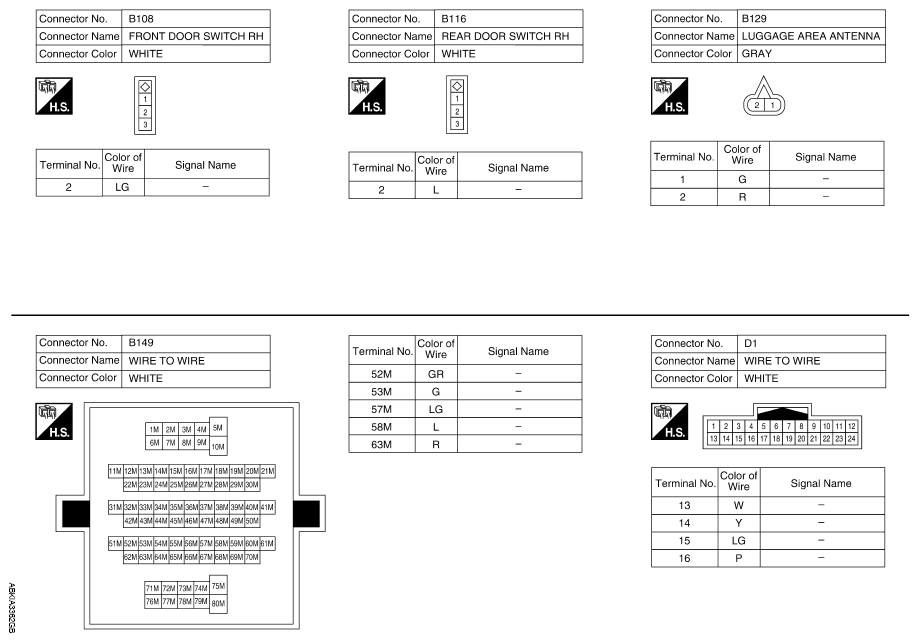

Fig 5: Identifying Intelligent Key System Connectors (5 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

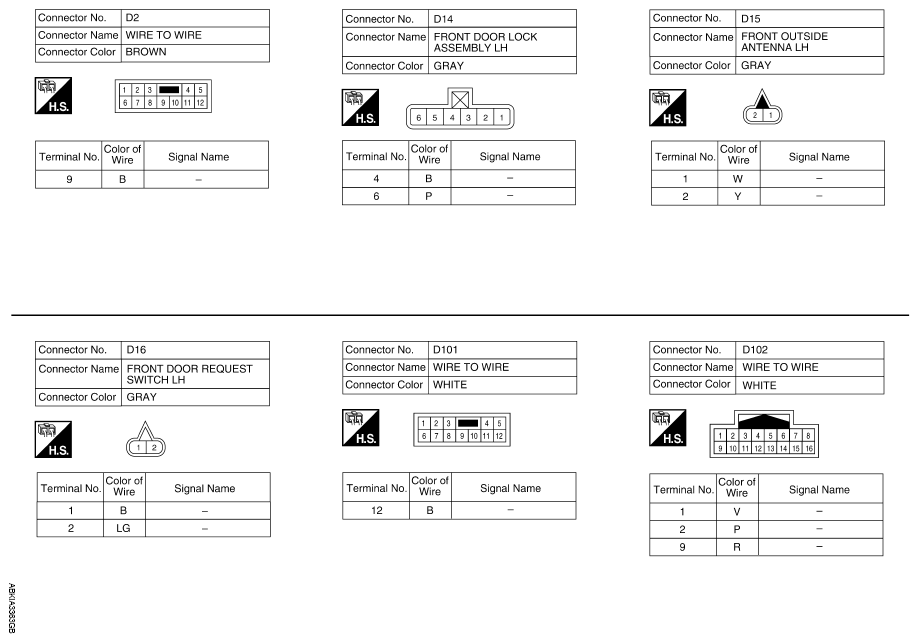

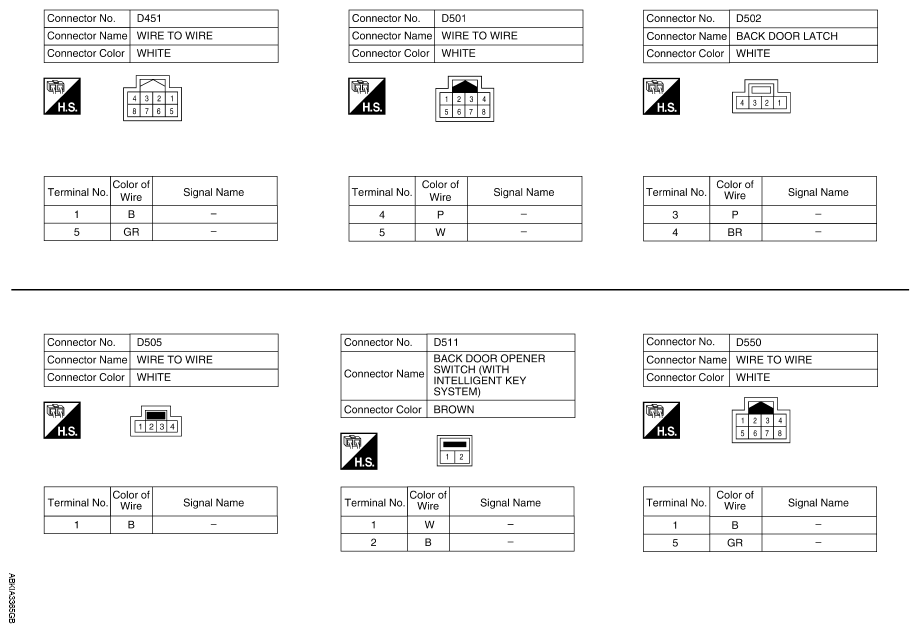

Fig 6: Identifying Intelligent Key System Connectors (6 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

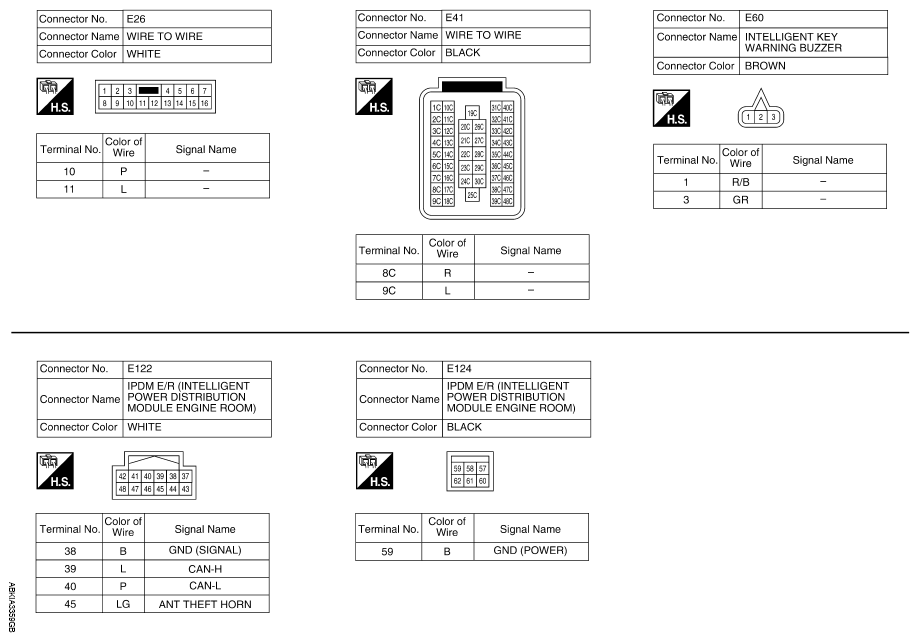

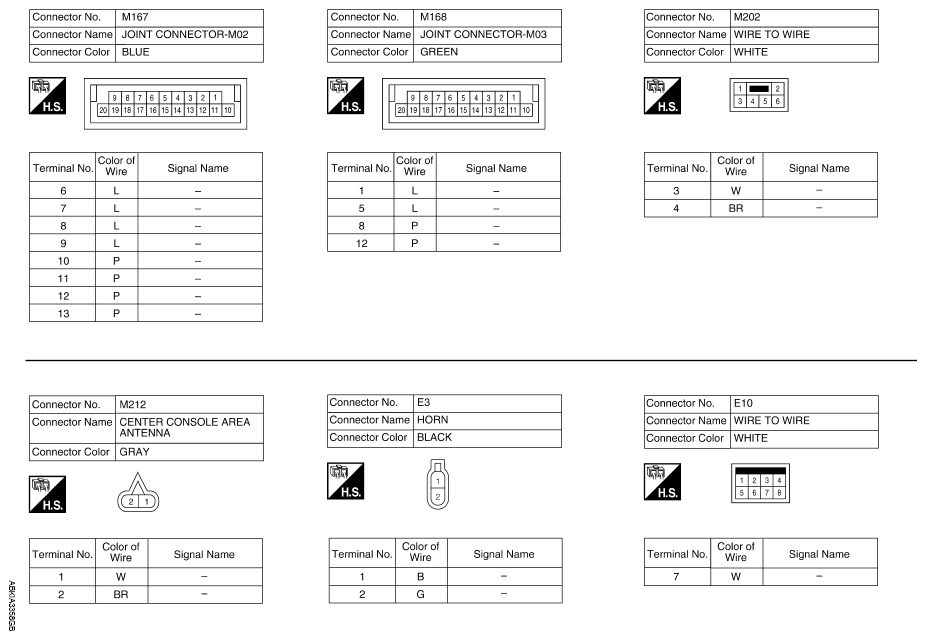

Fig 7: Identifying Intelligent Key System Connectors (7 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying Intelligent Key System Connectors (8 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Intelligent Key System Connectors (9 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Intelligent Key System Connectors (10 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Intelligent Key System Connectors (11 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Intelligent Key System Connectors (12 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Intelligent Key System Connectors (13 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Intelligent Key System Connectors (14 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Intelligent Key System Connectors (15 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.
