Key Warning Lamp&P-Shift Warning Lamp

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The key indicator and p-shift indicator Intelligent Key system status.

Operation Condition

Behavior of lamps			Operation condition
KEY	GREEN	Lighting	All the following conditions are satisfied Ignition knob is pressed in LOCK position (Ignition knob switch is ON) Ignition key is removed from ignition key cylinder (Key switch is OFF) Intelligent Key is detected inside of the vehicle KEY RED lighting/blinking conditions are not satisfied
	GREEN	Blinking	while Intelligent Key low battery warning is operating
	RED	Lighting	All the following conditions are satisfied Ignition knob is pressed (Ignition knob switch is ON) Ignition key is removed from ignition key cylinder (Key switch is OFF) Intelligent Key is not detected inside of the vehicle
	RED	Blinking	All the following conditions are satisfied Take away warning is operating KEY RED lighting condition is not satisfied
P-SHIFT		Blinking	When selector lever is not in P position and ignition switch is turned from ON to OFF
KEY(RED) and P-SHIFT lighting			All the following conditions are satisfied Ignition switch is ON Steering lock ID is NG

List of Operation Related Parts

Parts marked with x are the parts related to operation.

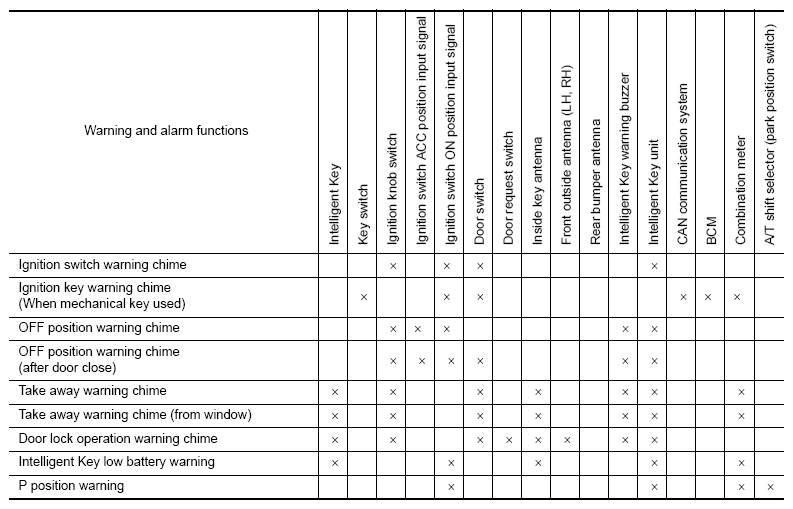

Fig 1: Operation Related Parts List

Courtesy of NISSAN NORTH AMERICA, INC.
