WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

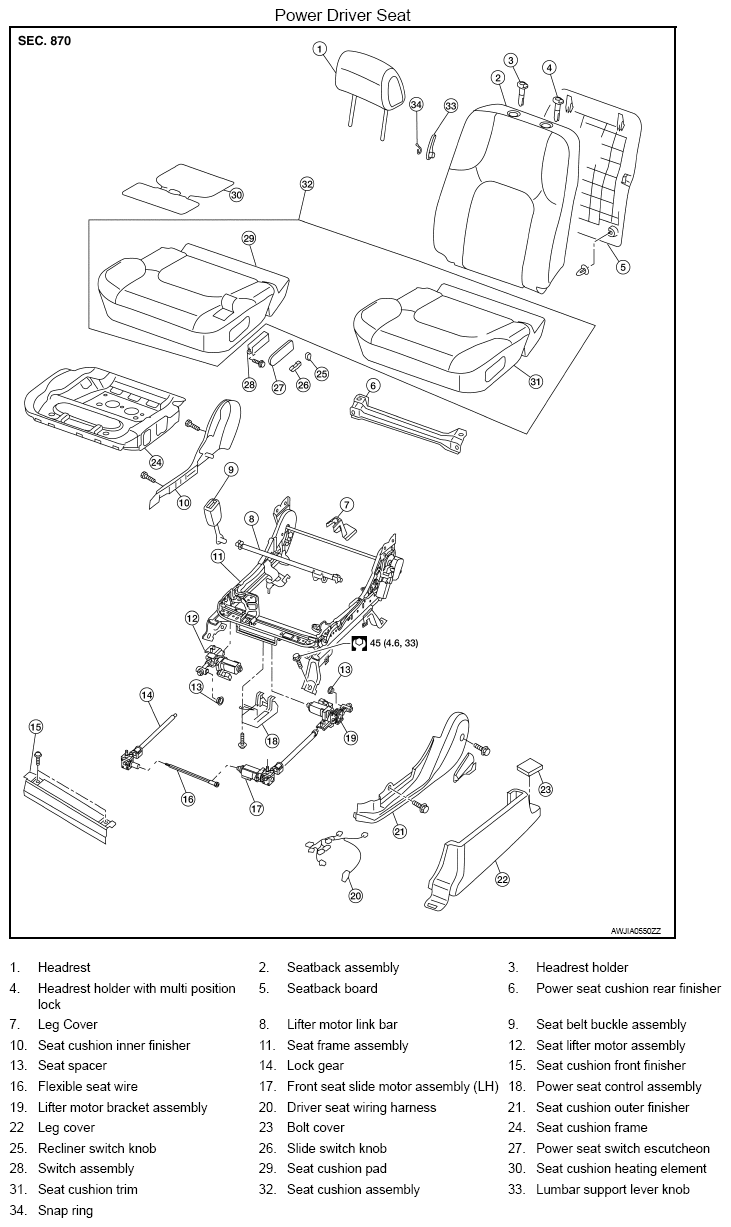

Fig 1: Exploded View Of Power Driver Seat With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

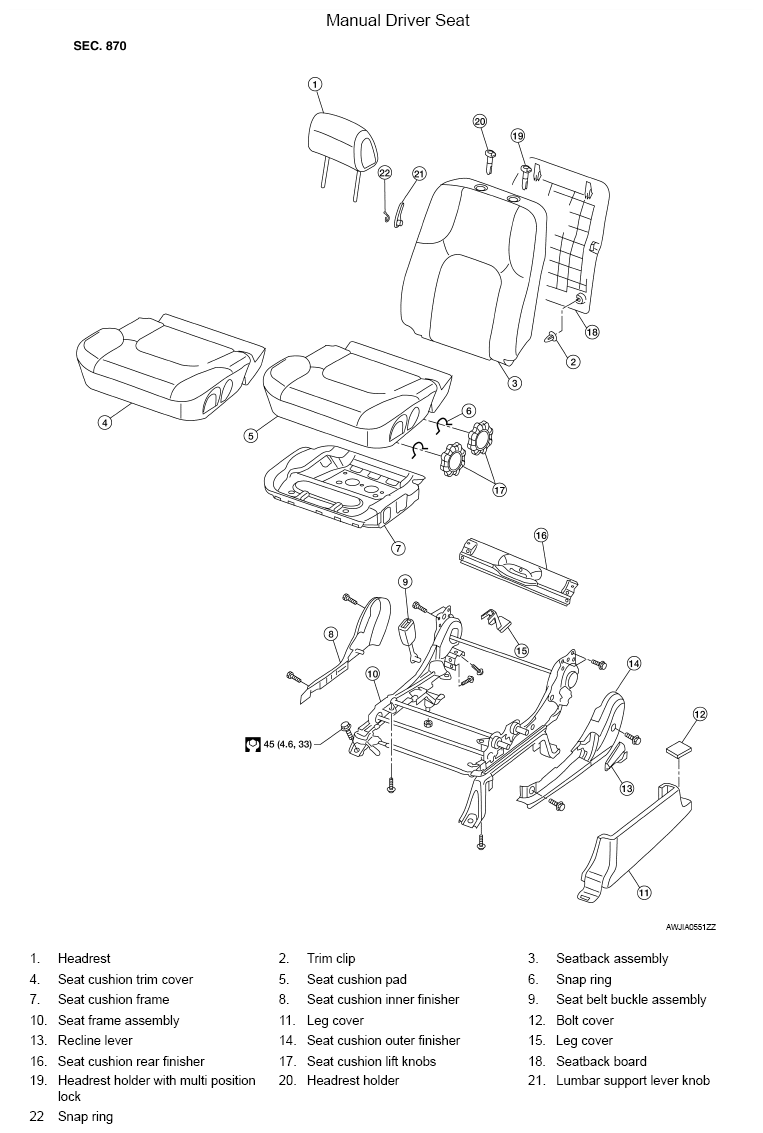

Fig 2: Exploded View Of Manual Driver Seat With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

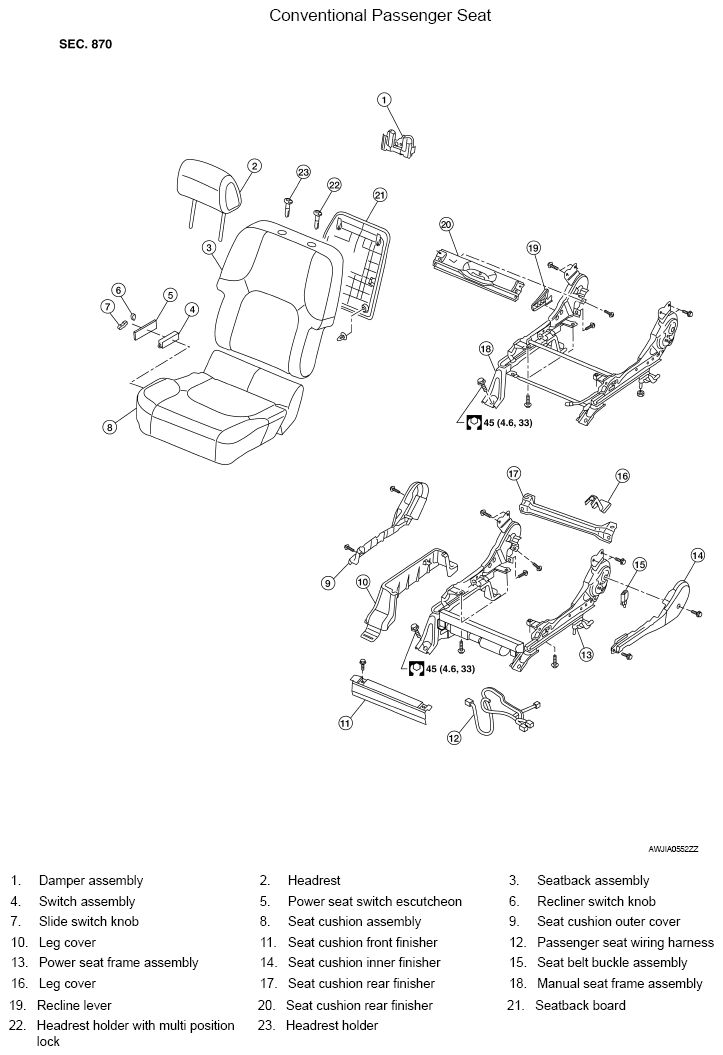

Fig 3: Exploded View Of Conventional Passenger Seat With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

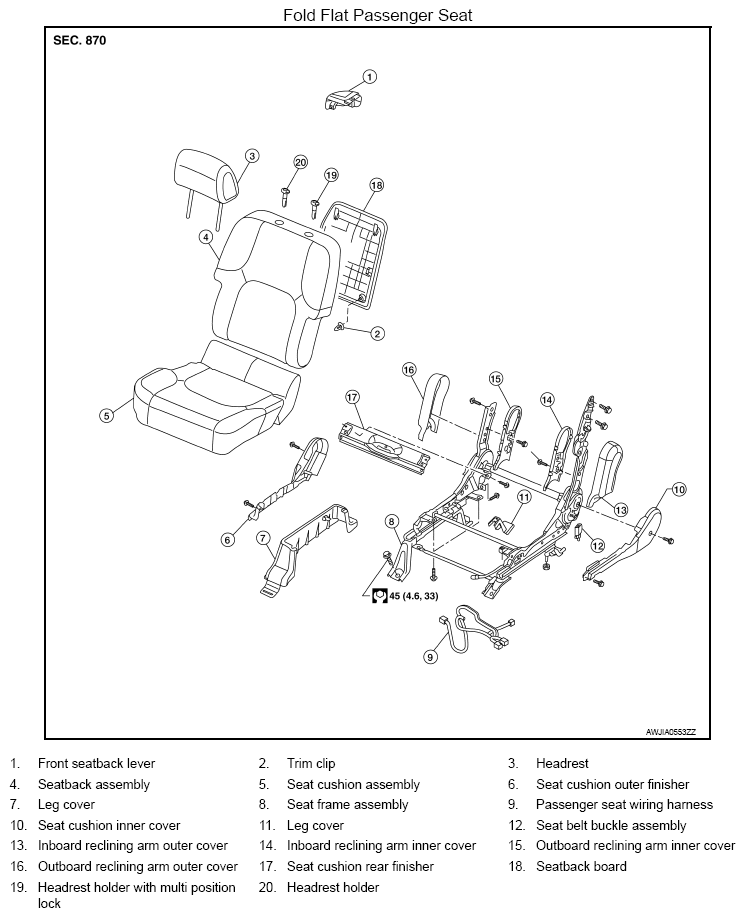

Fig 4: Exploded View Of Fold Flat Passenger Seat With Torque Specification
