WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

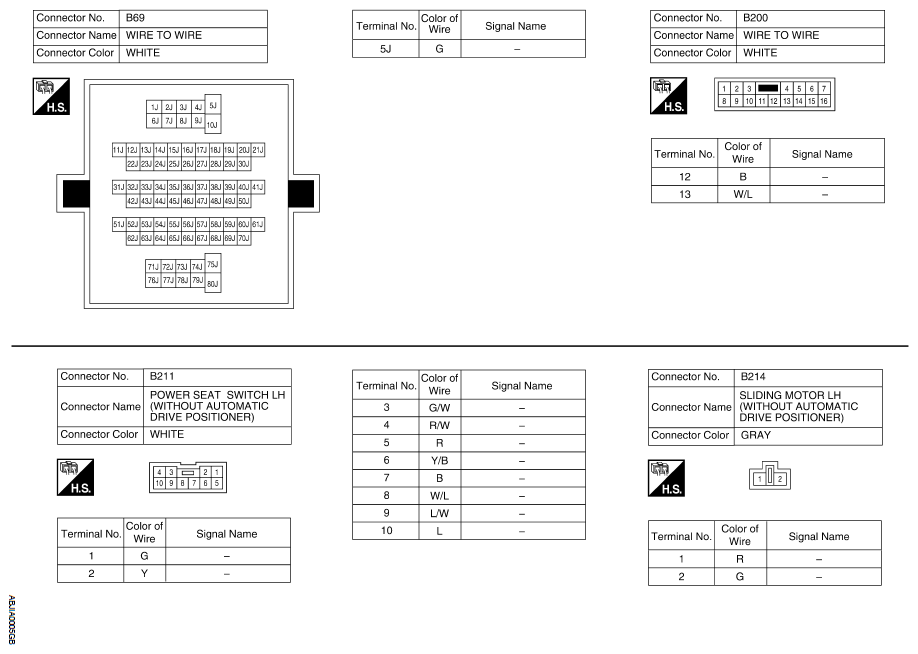

Fig 1: Identifying Power Seat For Driver Side Connectors - Without Automatic Drive Positioner (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

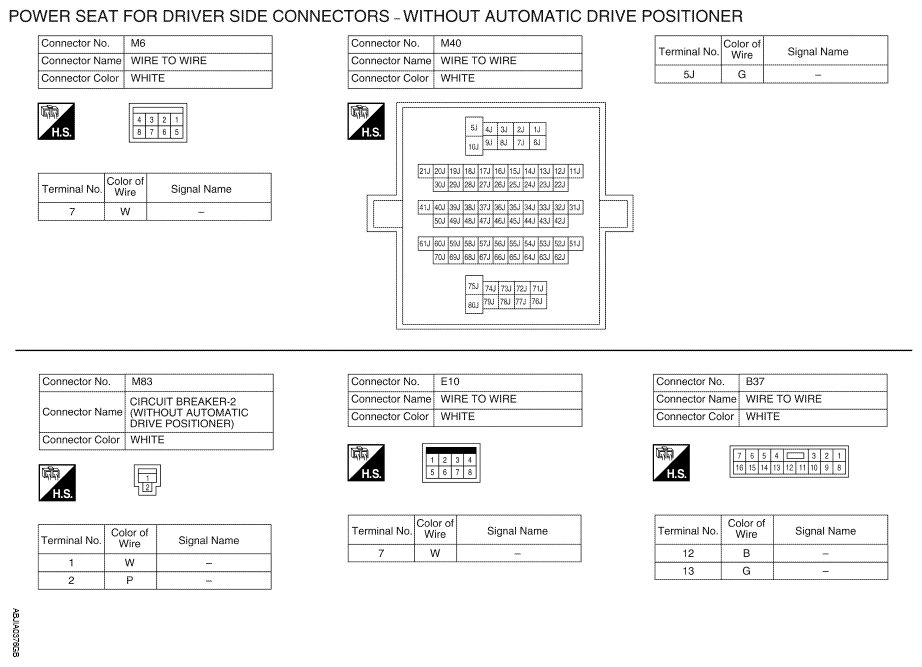

Fig 2: Identifying Power Seat For Driver Side Connectors - Without Automatic Drive Positioner (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

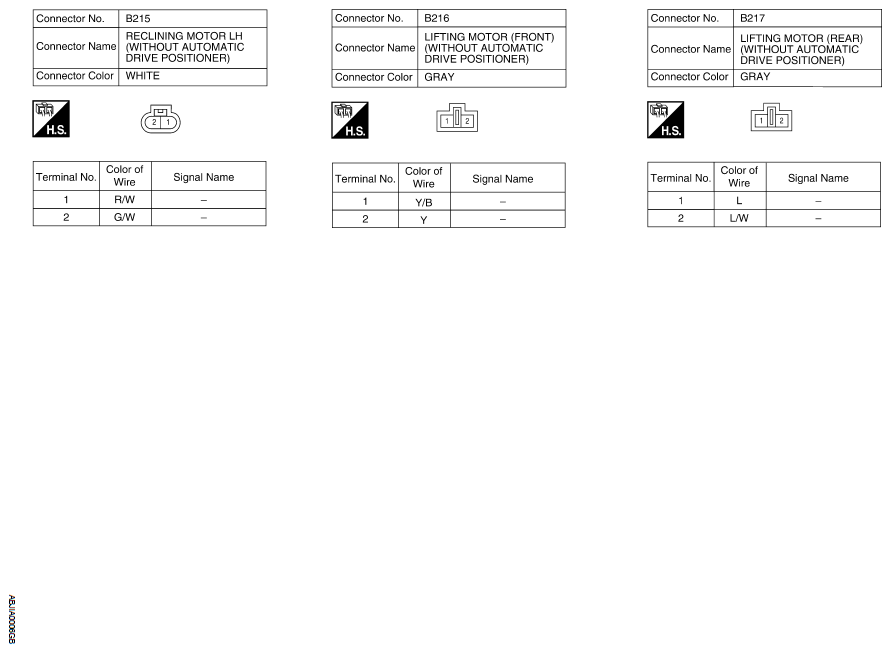

Fig 3: Identifying Power Seat For Driver Side Connectors - Without Automatic Drive Positioner (3 Of 3)
