Sunroof System: Adjustment: Notes

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Inspect then measure the gap and height difference between the glass lid assembly and roof panel; compare to specifications. Determine which procedure to follow based on results of measurements.

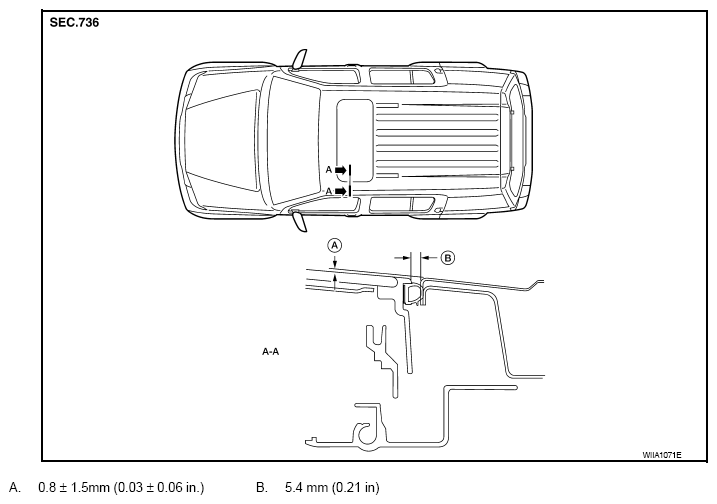

Fig 1: Identifying Sunroof System Adjustment Points
G08168549Courtesy of NISSAN NORTH AMERICA, INC.
