Installation (A/T Models)

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is in the reverse order of removal.

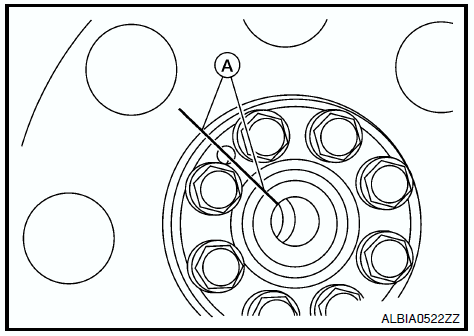

    • When installing the drive plate to the crankshaft, use the match mark (A) as shown below to correctly align the crankshaft side dowel pin to the drive plate side dowel pin hole.
      • Fig 1: Identifying Matchmark
      G00529961Courtesy of NISSAN NORTH AMERICA, INC.

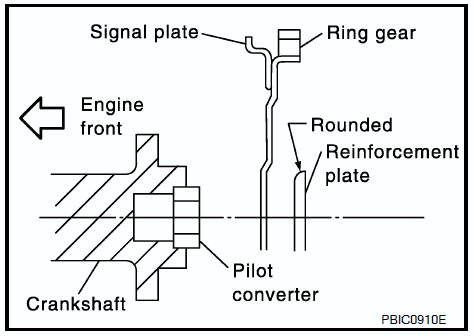

    • Install the drive plate and the reinforcement plate in the direction as shown below.
      • Fig 2: Drive Plate And Reinforcement Plate Orientation
      G00529962Courtesy of NISSAN NORTH AMERICA, INC.
    • Tighten the drive plate bolts in a diagonal pattern in two steps. Refer to figure below.
      • Fig 3: Exploded View Of Drive Plate And Flywheel With Torque Specifications
      G00529965Courtesy of NISSAN NORTH AMERICA, INC.
