Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Temporarily install return spring to striking rod assembly.
CAUTION: Be careful with the orientation of return spring.

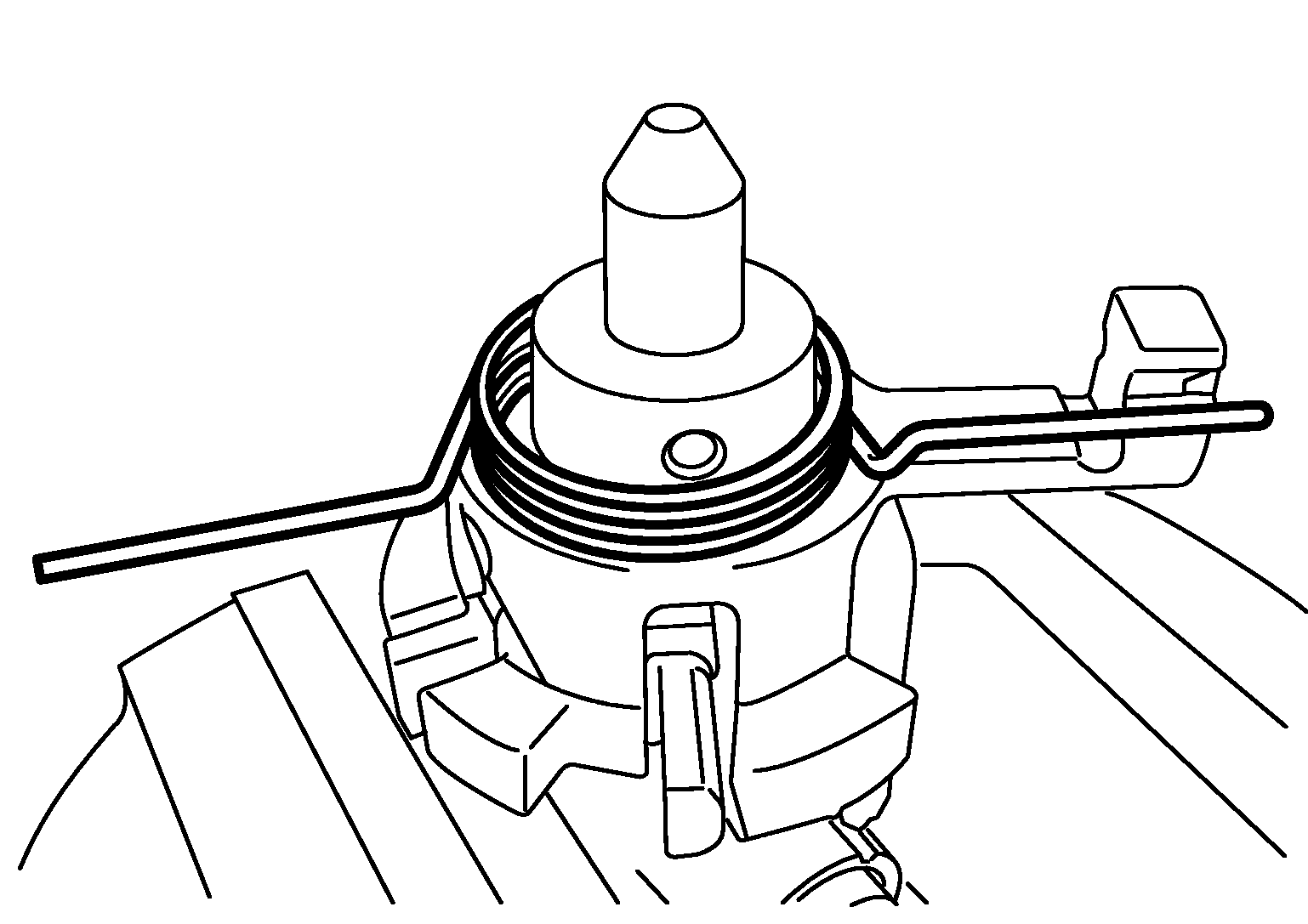

Fig 1: Identifying Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Attach one end of the return spring to striking interlock of striking rod assembly while holding return spring.

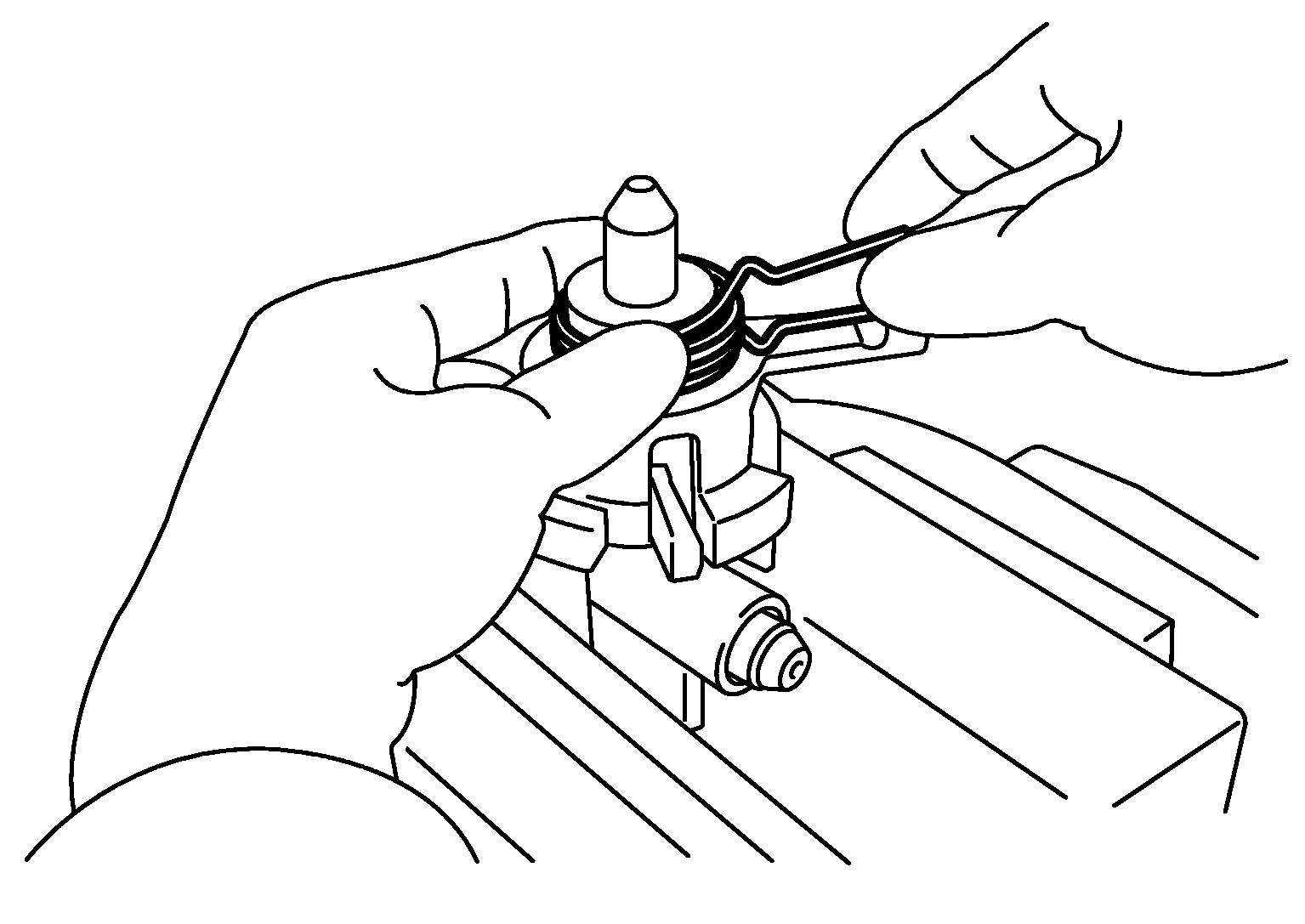

Fig 2: Attaching End Of Return Spring To Striking Interlock Of Striking Rod Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- When installing, check that return spring is securely seated in the groove of striking interlock of striking rod assembly.

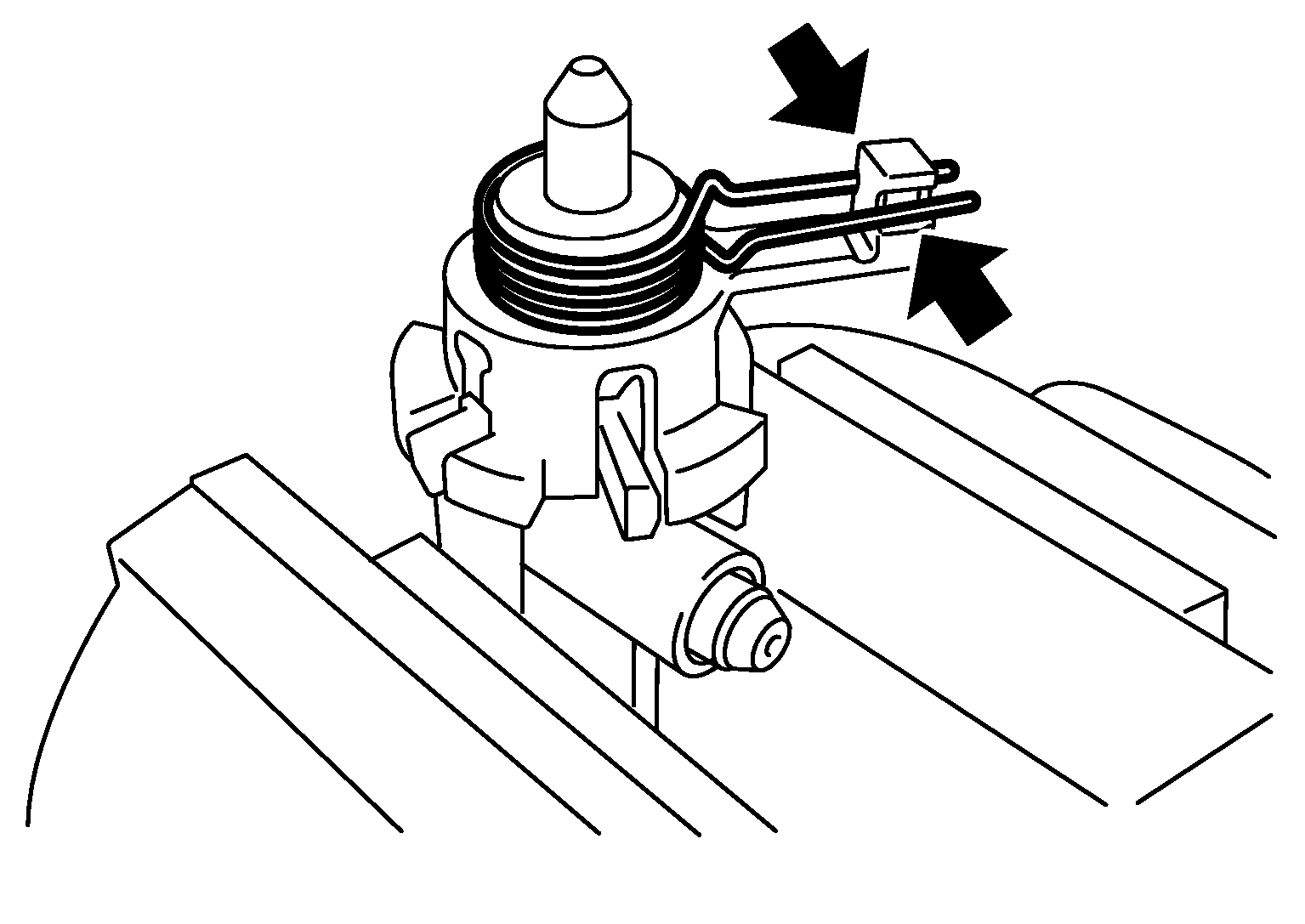

Fig 3: Checking Return Spring Seat
Courtesy of NISSAN MOTOR CO., U.S.A.
