Ignition Timing

  1. Attach timing light to loop wire as shown.

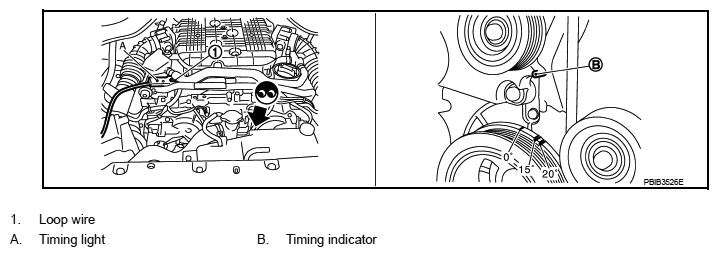

    Fig 1: Identifying Timing Marks
    G06054653Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.
