Inspection Procedure

Turn ignition switch OFF.

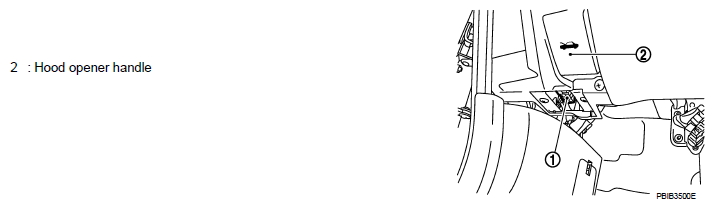

Connect GST to data link connector (1), which is located under LH dash panel near the hood opener handle.

Fig 1: Identifying Data Link Connector And Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are shown.)

Fig 2: GST Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic mode according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.

Fig 3: GST Screen Display - Readiness Tests
Courtesy of NISSAN MOTOR CO., U.S.A.
