Component Parts Location

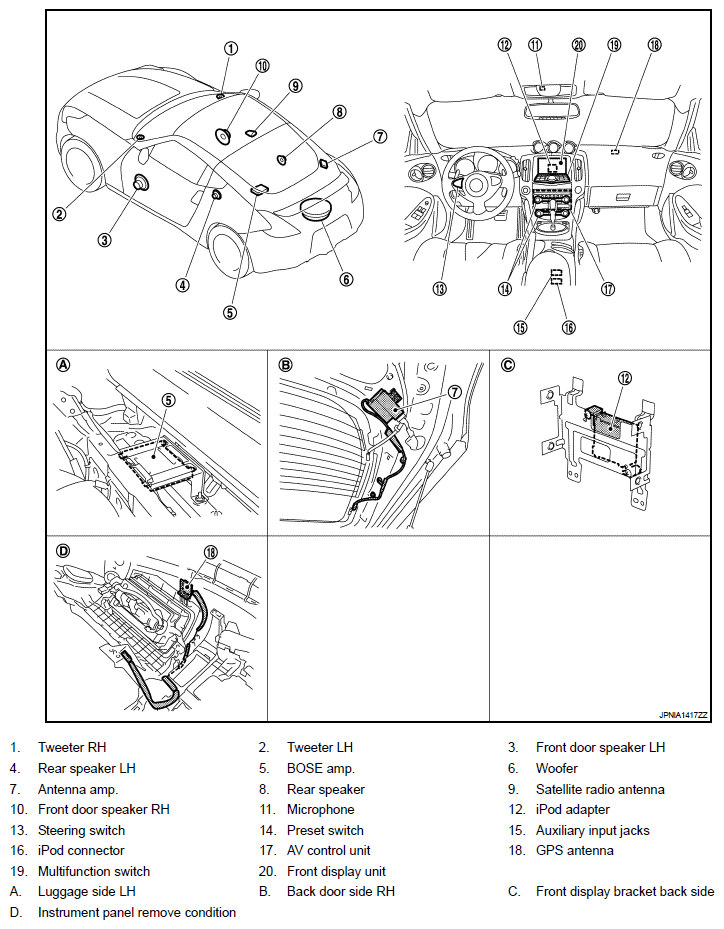

Fig 1: Identifying Multi AV System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
