System Diagram

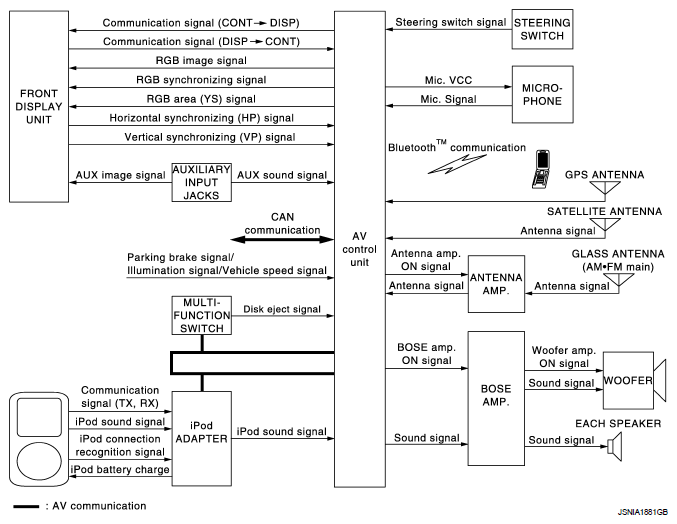

Fig 1: Multi AV System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Woofer, illustrated in the above figure, integrates two woofers and a woofer amp.
In this part, PRESET SWITCH and MULTIFUNCTION SWITCH are written as the MULTIFUNCTION SWITCH.
