Component Parts Location

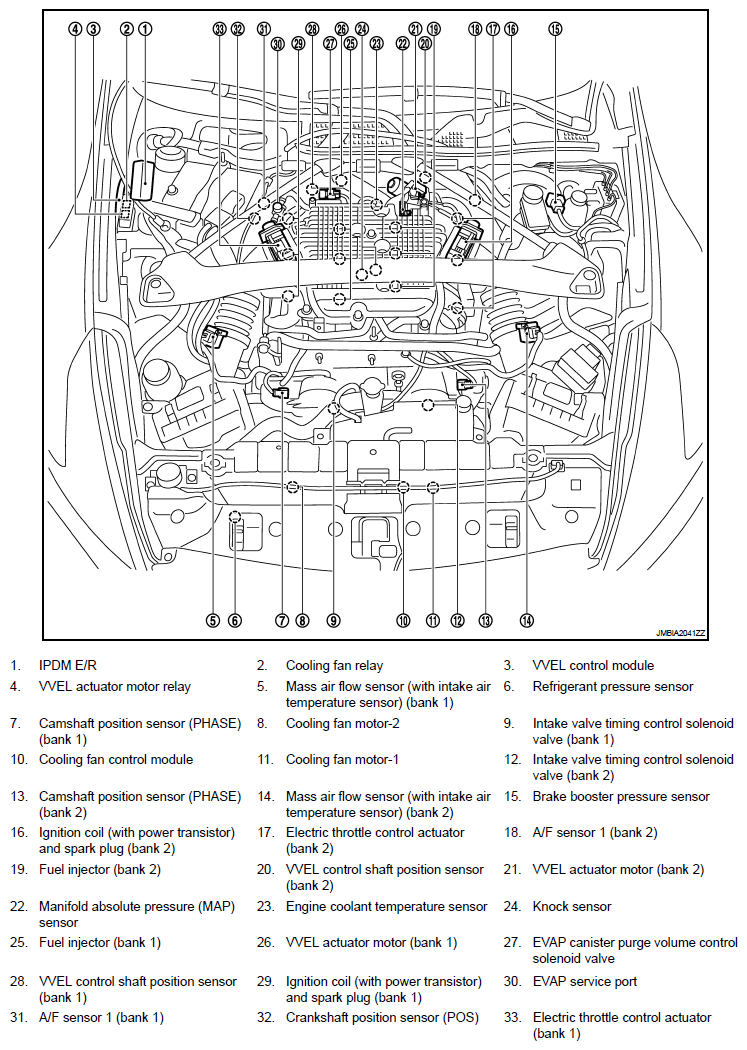

Fig 1: Identifying Air Conditioning Cut Control System Components Location (1 Of 20)

G06049239

Courtesy of NISSAN MOTOR CO., U.S.A.

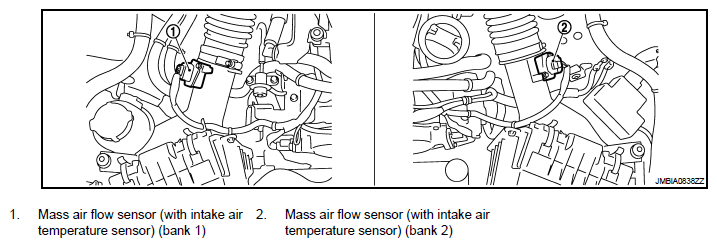

Fig 2: Identifying Air Conditioning Cut Control System Components Location (2 Of 20)

G06049240

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Air Conditioning Cut Control System Components Location (3 Of 20)

G06049241

Courtesy of NISSAN MOTOR CO., U.S.A.

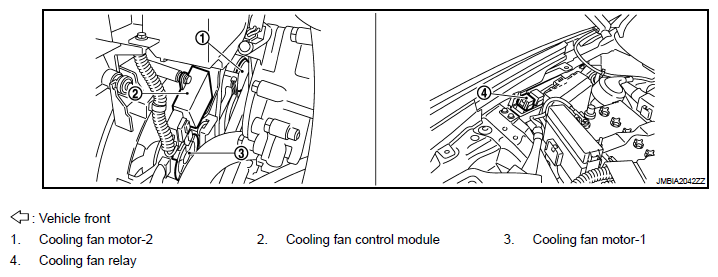

Fig 4: Identifying Air Conditioning Cut Control System Components Location (4 Of 20)

G06049242

Courtesy of NISSAN MOTOR CO., U.S.A.

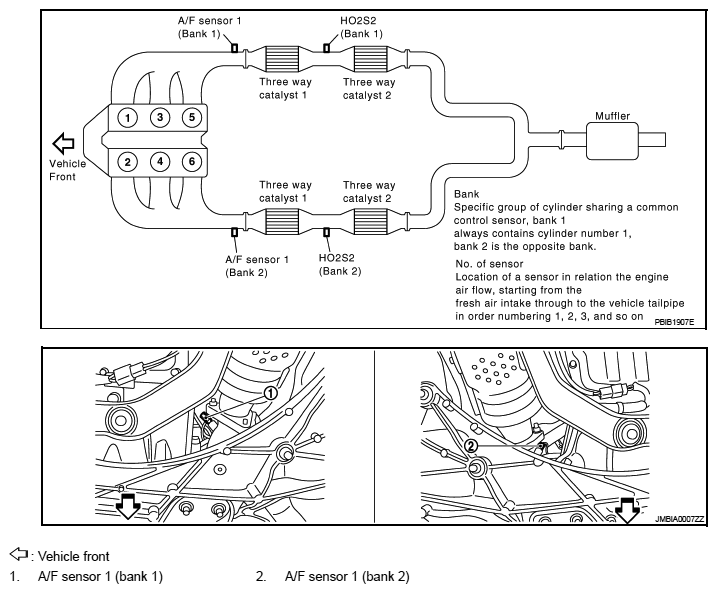

Fig 5: Identifying Air Conditioning Cut Control System Components Location (5 Of 20)

G06049243

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Air Conditioning Cut Control System Components Location (6 Of 20)

G06049244

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Air Conditioning Cut Control System Components Location (7 Of 20)

G06049245

Courtesy of NISSAN MOTOR CO., U.S.A.

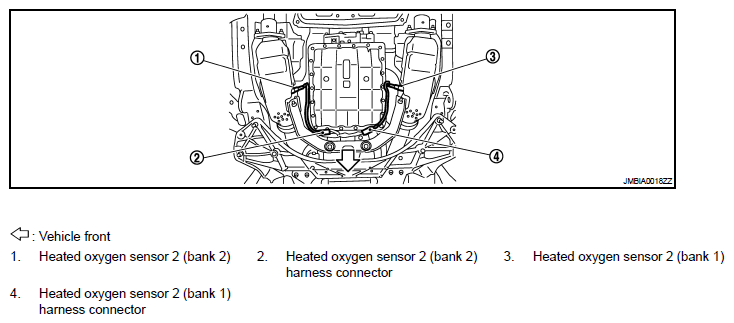

Fig 8: Identifying Air Conditioning Cut Control System Components Location (8 Of 20)

G06049246

Courtesy of NISSAN MOTOR CO., U.S.A.

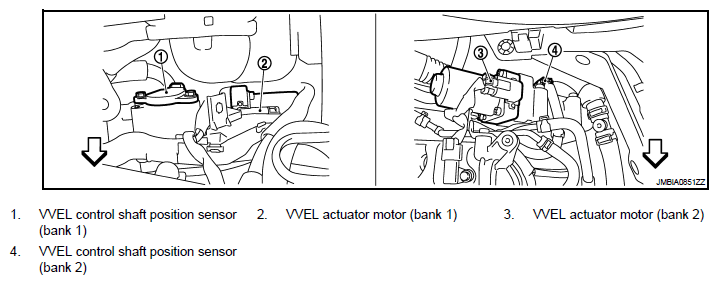

Fig 9: Identifying Air Conditioning Cut Control System Components Location (9 Of 20)

G06049247

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Air Conditioning Cut Control System Components Location (10 Of 20)

G06049248

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Air Conditioning Cut Control System Components Location (11 Of 20)

G06049249

Courtesy of NISSAN MOTOR CO., U.S.A.

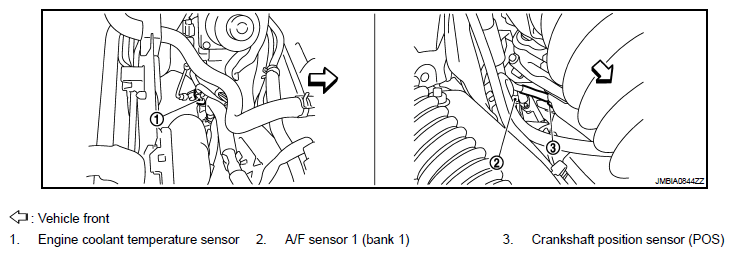

Fig 12: Identifying Air Conditioning Cut Control System Components Location (12 Of 20)

G06049250

Courtesy of NISSAN MOTOR CO., U.S.A.

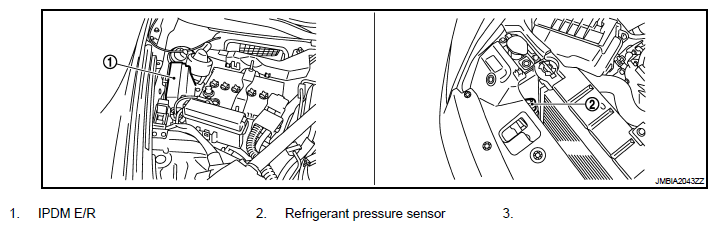

Fig 13: Identifying Air Conditioning Cut Control System Components Location (13 Of 20)

G06049251

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Air Conditioning Cut Control System Components Location (14 Of 20)

G06049252

Courtesy of NISSAN MOTOR CO., U.S.A.

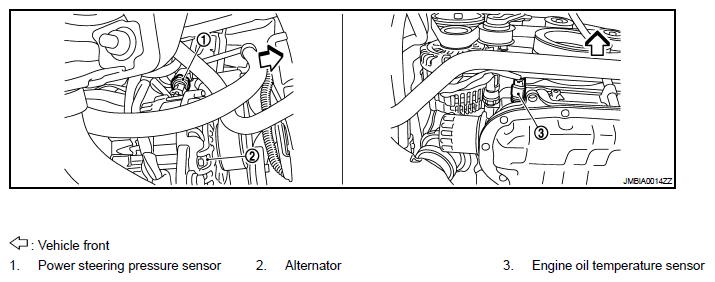

Fig 15: Identifying Air Conditioning Cut Control System Components Location (15 Of 20)

G06049253

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Air Conditioning Cut Control System Components Location (16 Of 20)

G06049254

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Air Conditioning Cut Control System Components Location (17 Of 20)

G06049255

Courtesy of NISSAN MOTOR CO., U.S.A.

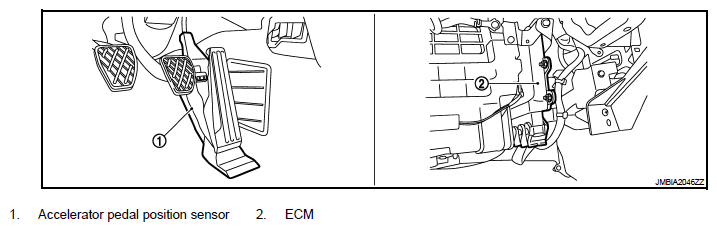

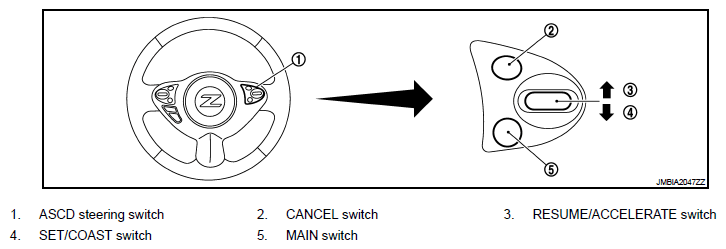

Fig 18: Identifying Air Conditioning Cut Control System Components Location (18 Of 20)

G06049256

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Air Conditioning Cut Control System Components Location (19 Of 20)

G06049257

Courtesy of NISSAN MOTOR CO., U.S.A.

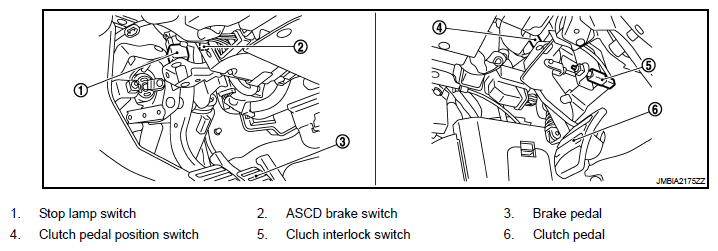

Fig 20: Identifying Air Conditioning Cut Control System Components Location (20 Of 20)

G06049258

Courtesy of NISSAN MOTOR CO., U.S.A.
