Component Parts Location

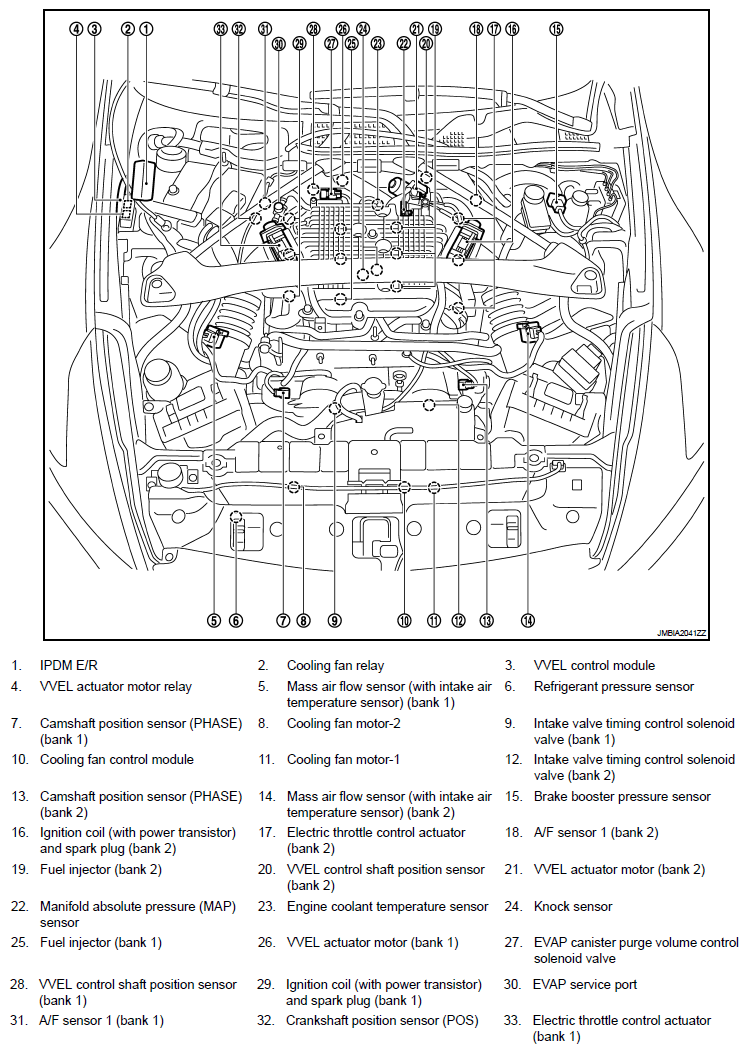

Fig 1: Identifying Automatic Speed Control Device (ASCD) System Components Location (1 Of 20)

G06049260

Courtesy of NISSAN MOTOR CO., U.S.A.

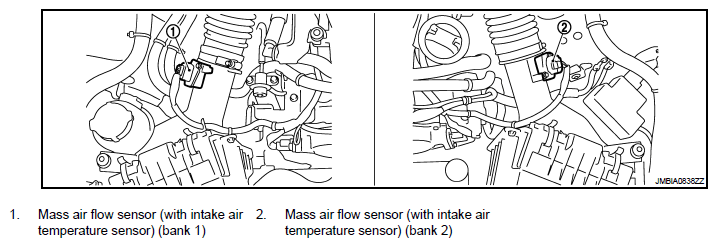

Fig 2: Identifying Automatic Speed Control Device (ASCD) System Components Location (2 Of 20)

G06049261

Courtesy of NISSAN MOTOR CO., U.S.A.

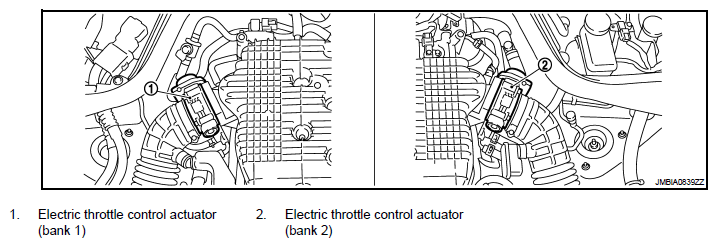

Fig 3: Identifying Automatic Speed Control Device (ASCD) System Components Location (3 Of 20)

G06049262

Courtesy of NISSAN MOTOR CO., U.S.A.

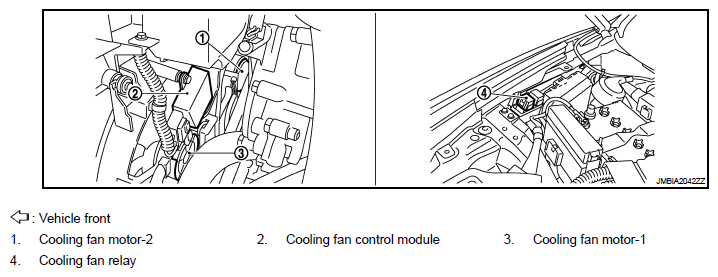

Fig 4: Identifying Automatic Speed Control Device (ASCD) System Components Location (4 Of 20)

G06049263

Courtesy of NISSAN MOTOR CO., U.S.A.

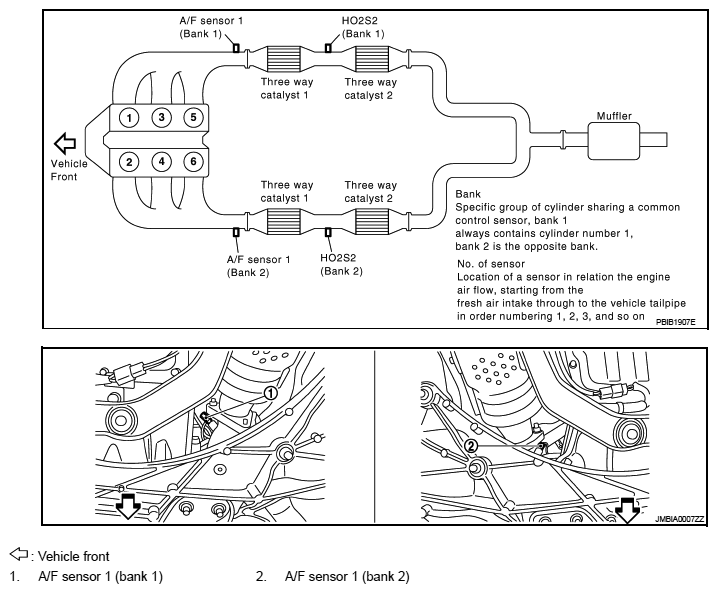

Fig 5: Identifying Automatic Speed Control Device (ASCD) System Components Location (5 Of 20)

G06049264

Courtesy of NISSAN MOTOR CO., U.S.A.

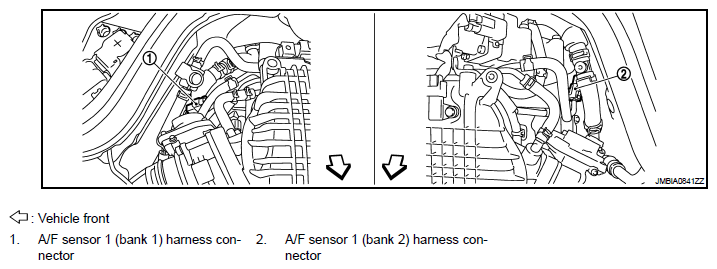

Fig 6: Identifying Automatic Speed Control Device (ASCD) System Components Location (6 Of 20)

G06049265

Courtesy of NISSAN MOTOR CO., U.S.A.

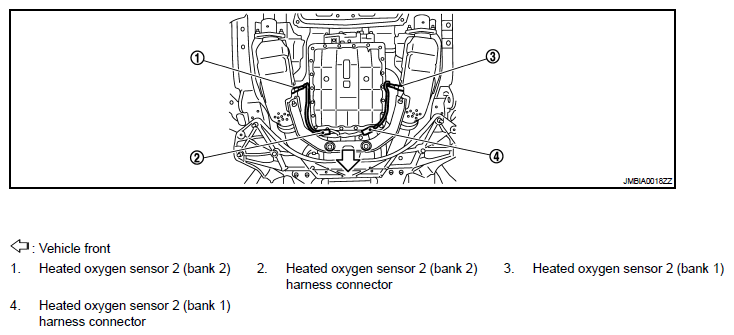

Fig 7: Identifying Automatic Speed Control Device (ASCD) System Components Location (7 Of 20)

G06049266

Courtesy of NISSAN MOTOR CO., U.S.A.

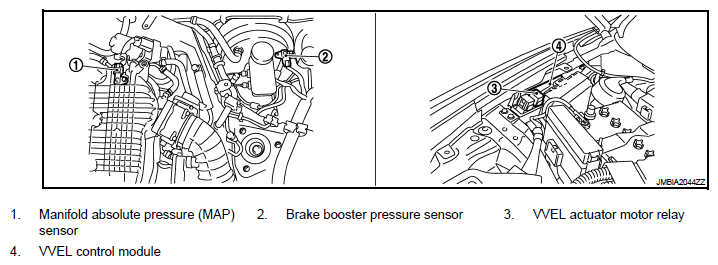

Fig 8: Identifying Automatic Speed Control Device (ASCD) System Components Location (8 Of 20)

G06049267

Courtesy of NISSAN MOTOR CO., U.S.A.

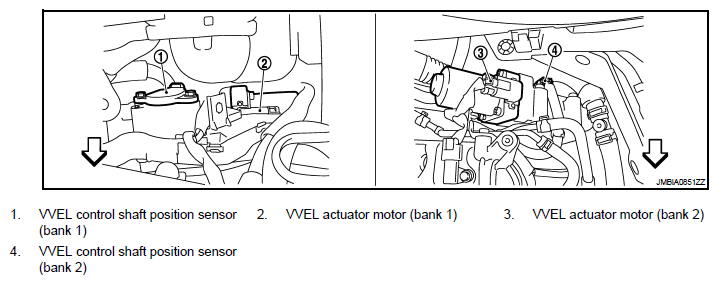

Fig 9: Identifying Automatic Speed Control Device (ASCD) System Components Location (9 Of 20)

G06049268

Courtesy of NISSAN MOTOR CO., U.S.A.

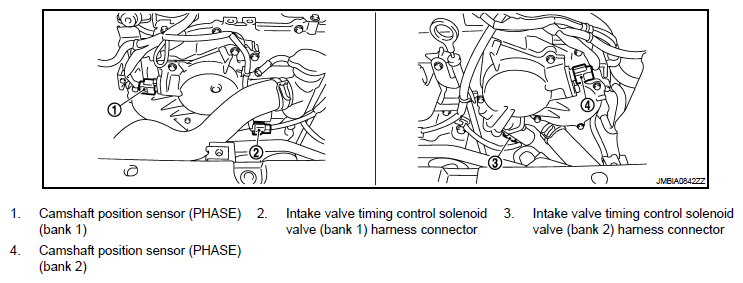

Fig 10: Identifying Automatic Speed Control Device (ASCD) System Components Location (10 Of 20)

G06049269

Courtesy of NISSAN MOTOR CO., U.S.A.

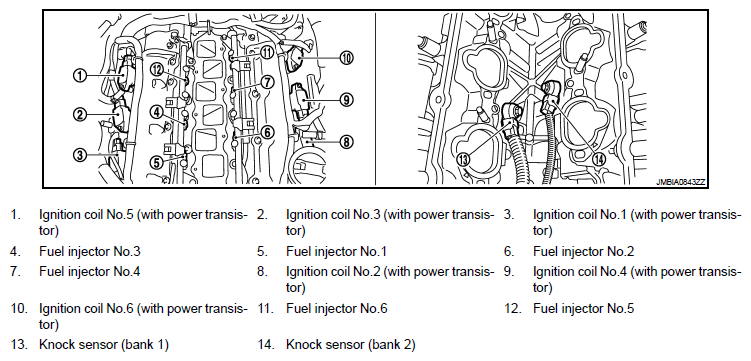

Fig 11: Identifying Automatic Speed Control Device (ASCD) System Components Location (11 Of 20)

G06049270

Courtesy of NISSAN MOTOR CO., U.S.A.

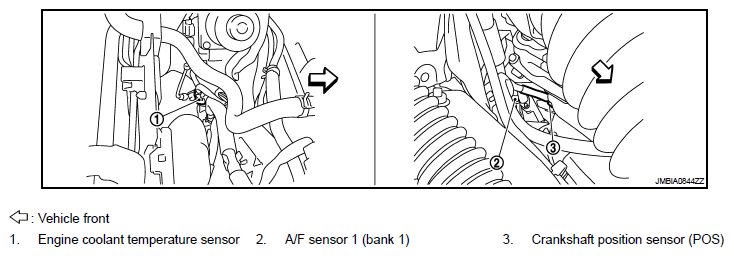

Fig 12: Identifying Automatic Speed Control Device (ASCD) System Components Location (12 Of 20)

G06049271

Courtesy of NISSAN MOTOR CO., U.S.A.

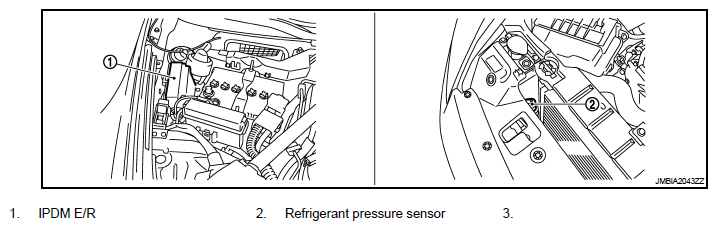

Fig 13: Identifying Automatic Speed Control Device (ASCD) System Components Location (13 Of 20)

G06049272

Courtesy of NISSAN MOTOR CO., U.S.A.

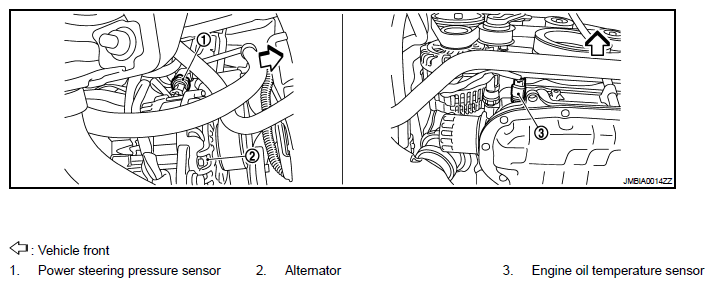

Fig 14: Identifying Automatic Speed Control Device (ASCD) System Components Location (14 Of 20)

G06049273

Courtesy of NISSAN MOTOR CO., U.S.A.

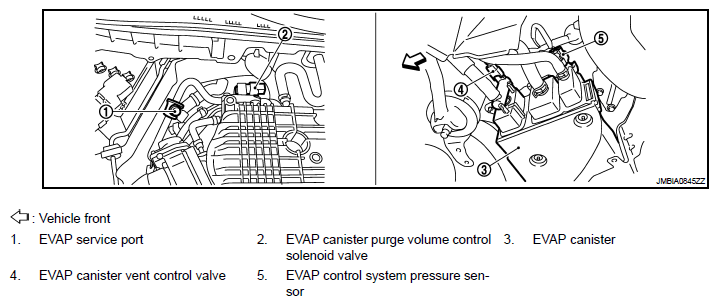

Fig 15: Identifying Automatic Speed Control Device (ASCD) System Components Location (15 Of 20)

G06049274

Courtesy of NISSAN MOTOR CO., U.S.A.

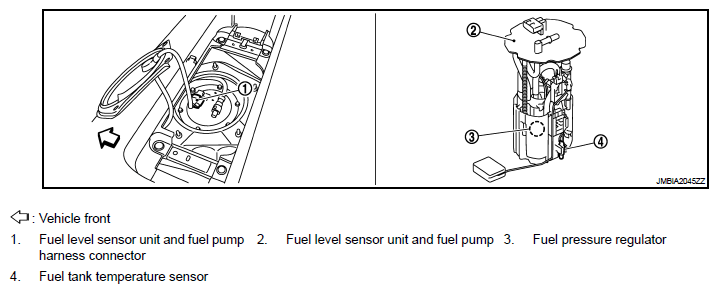

Fig 16: Identifying Automatic Speed Control Device (ASCD) System Components Location (16 Of 20)

G06049275

Courtesy of NISSAN MOTOR CO., U.S.A.

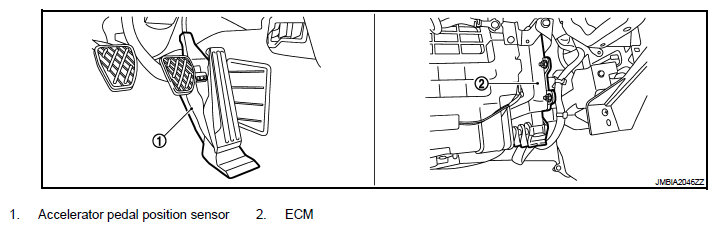

Fig 17: Identifying Automatic Speed Control Device (ASCD) System Components Location (17 Of 20)

G06049276

Courtesy of NISSAN MOTOR CO., U.S.A.

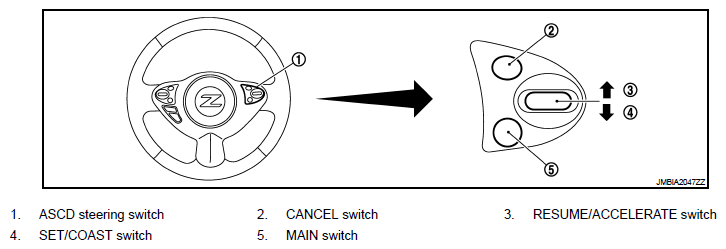

Fig 18: Identifying Automatic Speed Control Device (ASCD) System Components Location (18 Of 20)

G06049277

Courtesy of NISSAN MOTOR CO., U.S.A.

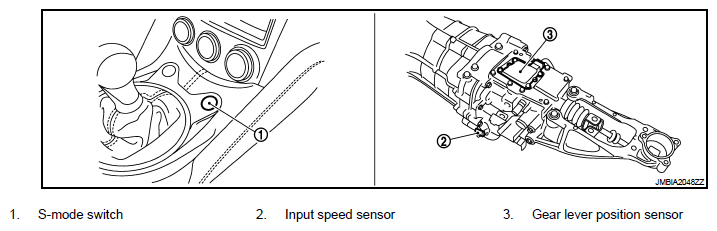

Fig 19: Identifying Automatic Speed Control Device (ASCD) System Components Location (19 Of 20)

G06049278

Courtesy of NISSAN MOTOR CO., U.S.A.

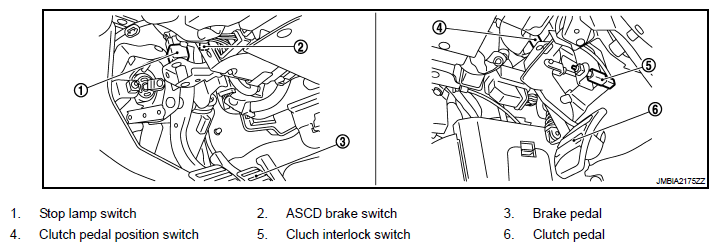

Fig 20: Identifying Automatic Speed Control Device (ASCD) System Components Location (20 Of 20)

G06049279

Courtesy of NISSAN MOTOR CO., U.S.A.
