Component Parts Location

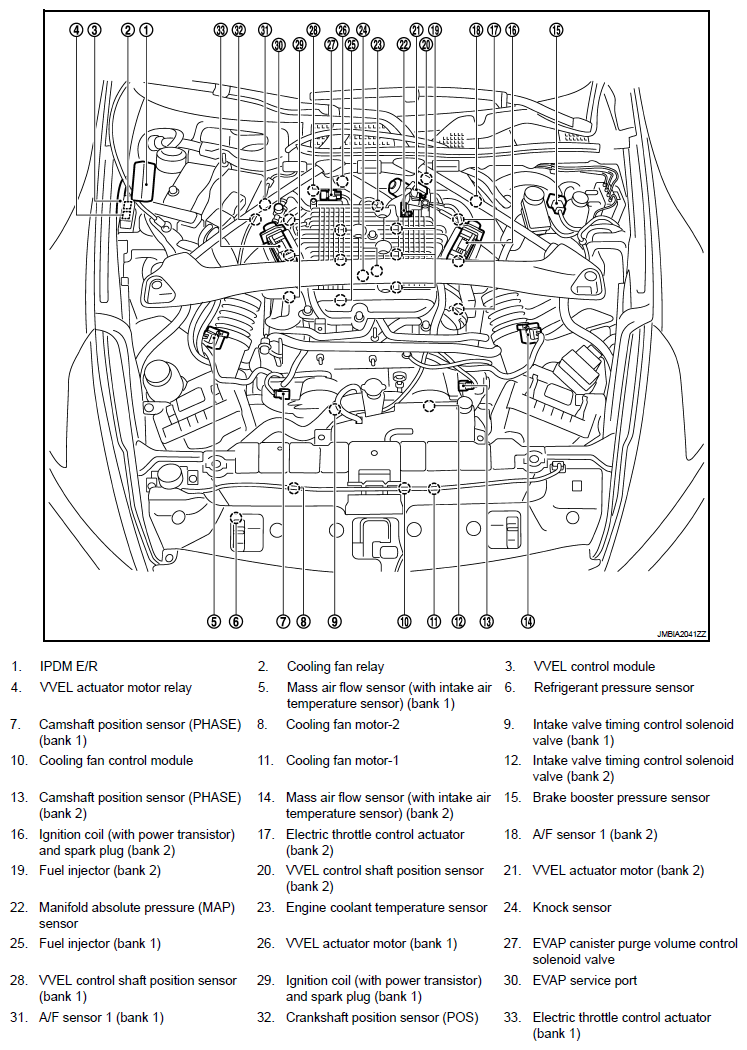

Fig 1: Identifying Engine Control System Components Location (1 Of 20)

G06049174

Courtesy of NISSAN MOTOR CO., U.S.A.

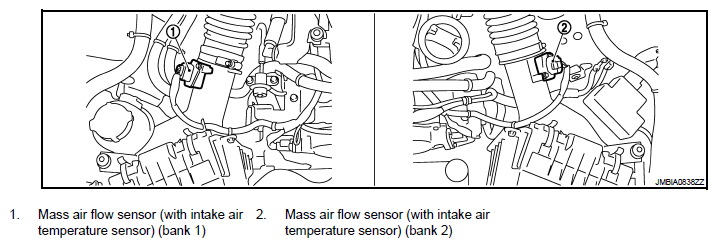

Fig 2: Identifying Engine Control System Components Location (2 Of 20)

G06049175

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Control System Components Location (3 Of 20)

G06049176

Courtesy of NISSAN MOTOR CO., U.S.A.

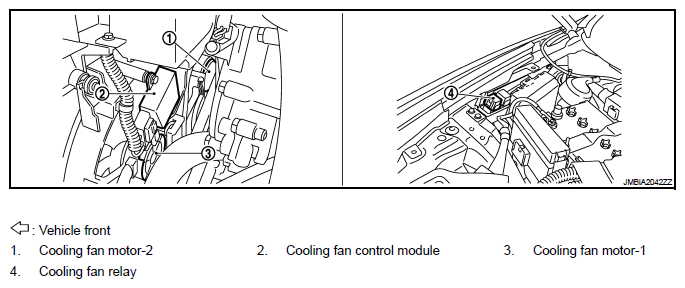

Fig 4: Identifying Engine Control System Components Location (4 Of 20)

G06049177

Courtesy of NISSAN MOTOR CO., U.S.A.

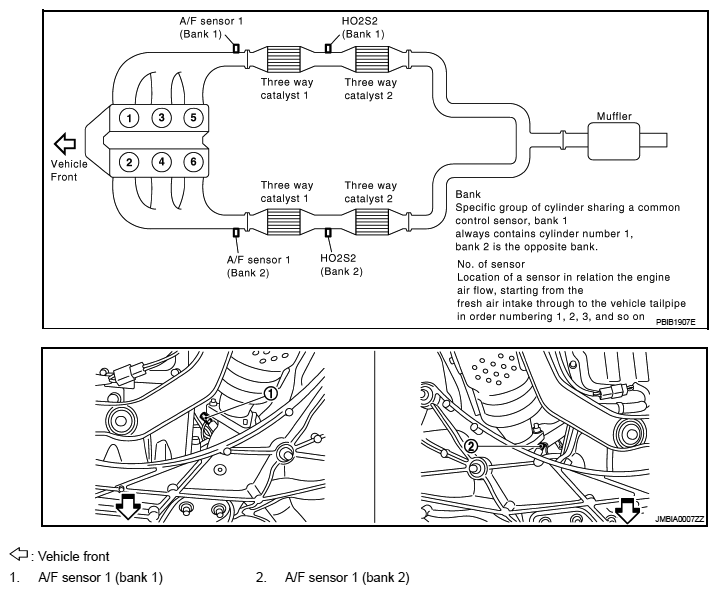

Fig 5: Identifying Engine Control System Components Location (5 Of 20)

G06049178

Courtesy of NISSAN MOTOR CO., U.S.A.

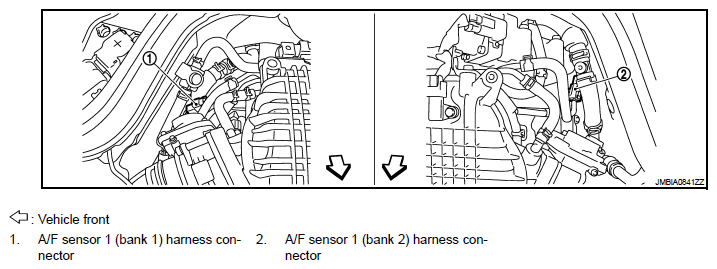

Fig 6: Identifying Engine Control System Components Location (6 Of 20)

G06049179

Courtesy of NISSAN MOTOR CO., U.S.A.

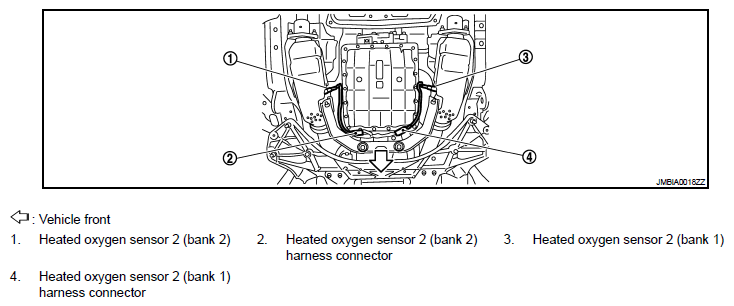

Fig 7: Identifying Engine Control System Components Location (7 Of 20)

G06049180

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Engine Control System Components Location (8 Of 20)

G06049181

Courtesy of NISSAN MOTOR CO., U.S.A.

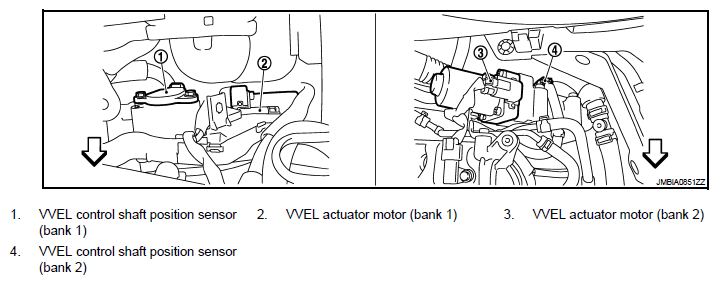

Fig 9: Identifying Engine Control System Components Location (9 Of 20)

G06049182

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Engine Control System Components Location (10 Of 20)

G06049183

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Engine Control System Components Location (11 Of 20)

G06049184

Courtesy of NISSAN MOTOR CO., U.S.A.

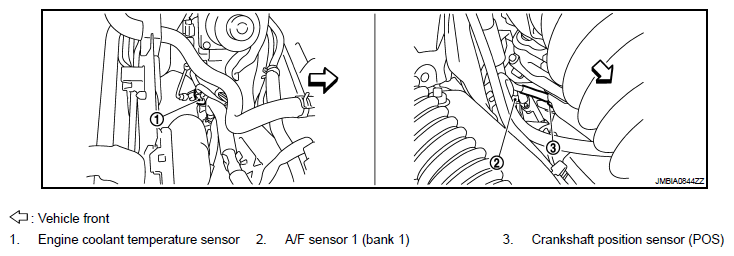

Fig 12: Identifying Engine Control System Components Location (12 Of 20)

G06049185

Courtesy of NISSAN MOTOR CO., U.S.A.

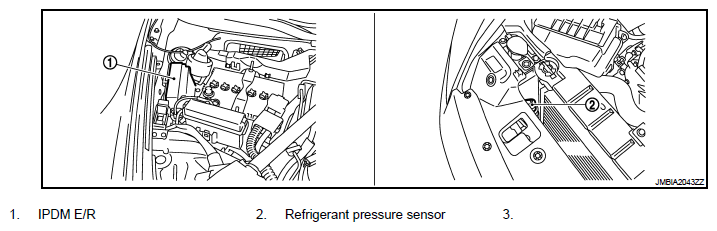

Fig 13: Identifying Engine Control System Components Location (13 Of 20)

G06049186

Courtesy of NISSAN MOTOR CO., U.S.A.

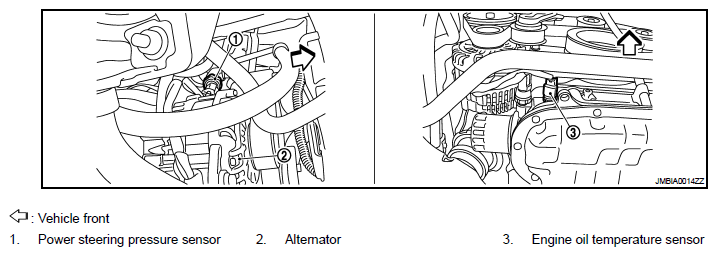

Fig 14: Identifying Engine Control System Components Location (14 Of 20)

G06049187

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Control System Components Location (15 Of 20)

G06049188

Courtesy of NISSAN MOTOR CO., U.S.A.

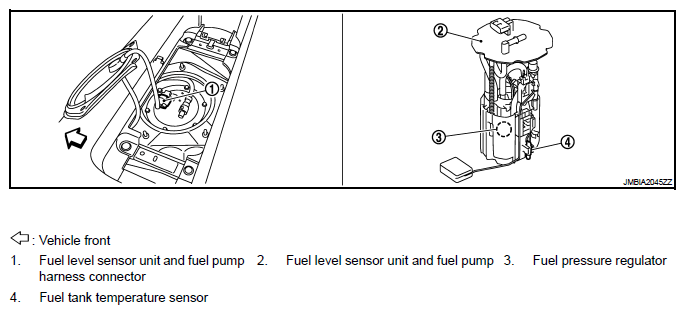

Fig 16: Identifying Engine Control System Components Location (16 Of 20)

G06049189

Courtesy of NISSAN MOTOR CO., U.S.A.

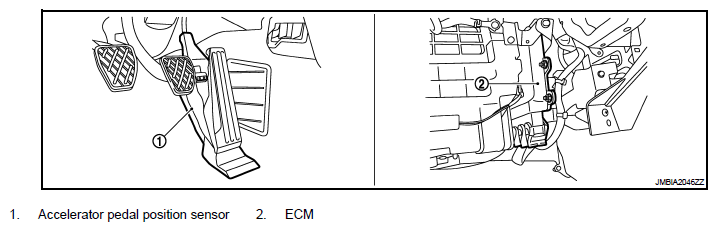

Fig 17: Identifying Engine Control System Components Location (17 Of 20)

G06049190

Courtesy of NISSAN MOTOR CO., U.S.A.

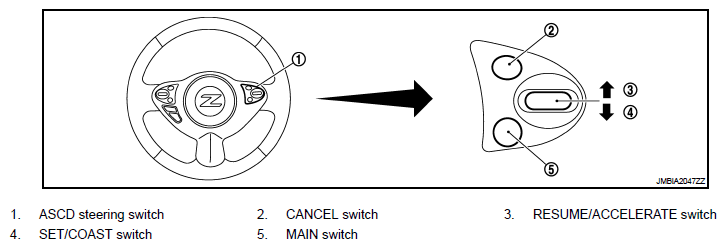

Fig 18: Identifying Engine Control System Components Location (18 Of 20)

G06049191

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Engine Control System Components Location (19 Of 20)

G06049192

Courtesy of NISSAN MOTOR CO., U.S.A.

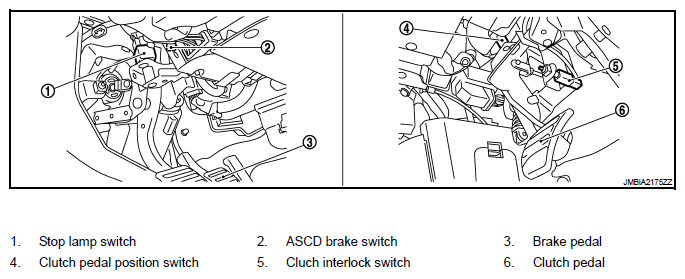

Fig 20: Identifying Engine Control System Components Location (20 Of 20)

G06049193

Courtesy of NISSAN MOTOR CO., U.S.A.
