Component Parts Location

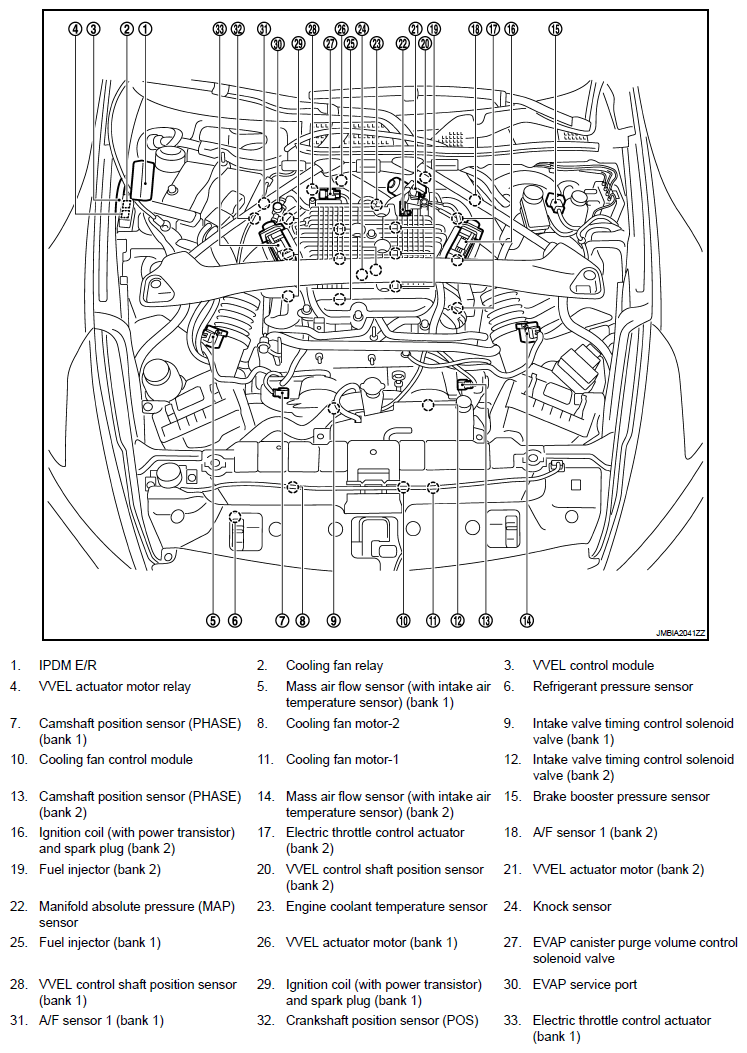

Fig 1: Identifying Intake Valve Timing Control System Components Location (1 Of 20)

G06049327

Courtesy of NISSAN MOTOR CO., U.S.A.

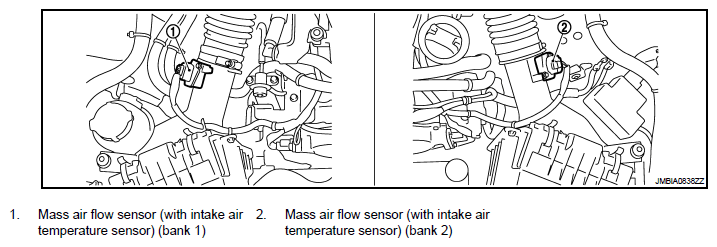

Fig 2: Identifying Intake Valve Timing Control System Components Location (2 Of 20)

G06049328

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Intake Valve Timing Control System Components Location (3 Of 20)

G06049329

Courtesy of NISSAN MOTOR CO., U.S.A.

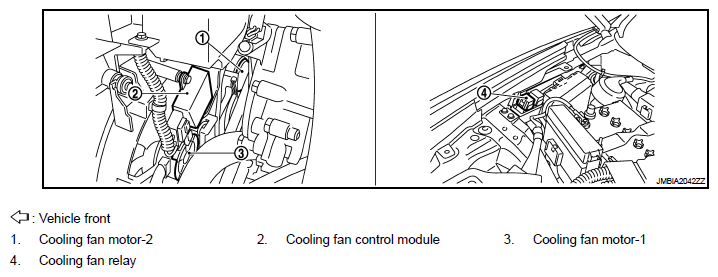

Fig 4: Identifying Intake Valve Timing Control System Components Location (4 Of 20)

G06049330

Courtesy of NISSAN MOTOR CO., U.S.A.

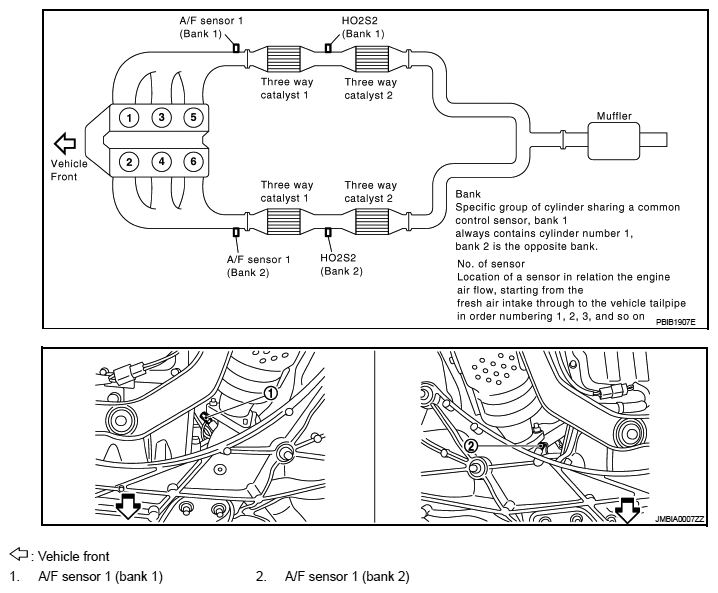

Fig 5: Identifying Intake Valve Timing Control System Components Location (5 Of 20)

G06049331

Courtesy of NISSAN MOTOR CO., U.S.A.

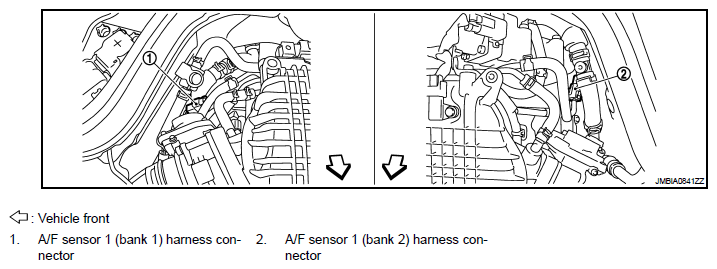

Fig 6: Identifying Intake Valve Timing Control System Components Location (6 Of 20)

G06049332

Courtesy of NISSAN MOTOR CO., U.S.A.

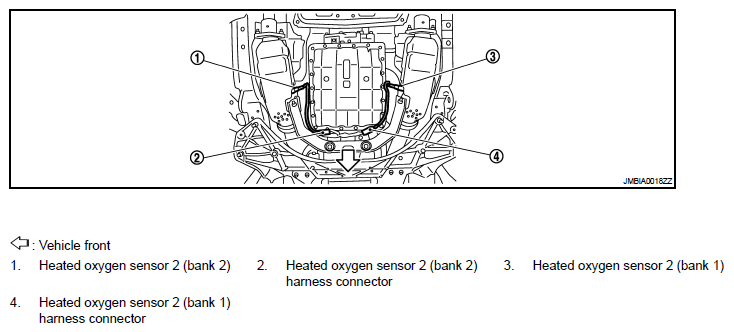

Fig 7: Identifying Intake Valve Timing Control System Components Location (7 Of 20)

G06049333

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Intake Valve Timing Control System Components Location (8 Of 20)

G06049334

Courtesy of NISSAN MOTOR CO., U.S.A.

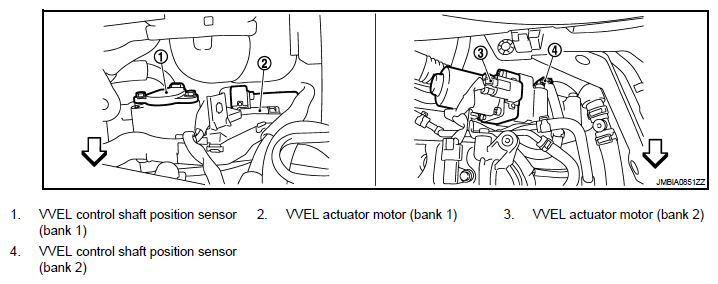

Fig 9: Identifying Intake Valve Timing Control System Components Location (9 Of 20)

G06049335

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Intake Valve Timing Control System Components Location (10 Of 20)

G06049336

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intake Valve Timing Control System Components Location (11 Of 20)

G06049337

Courtesy of NISSAN MOTOR CO., U.S.A.

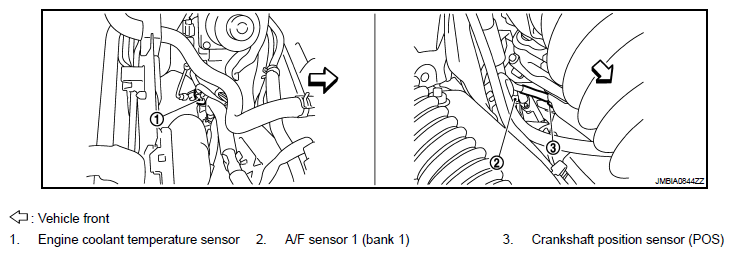

Fig 12: Identifying Intake Valve Timing Control System Components Location (12 Of 20)

G06049338

Courtesy of NISSAN MOTOR CO., U.S.A.

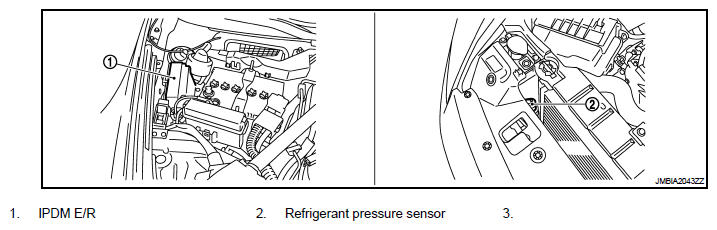

Fig 13: Identifying Intake Valve Timing Control System Components Location (13 Of 20)

G06049339

Courtesy of NISSAN MOTOR CO., U.S.A.

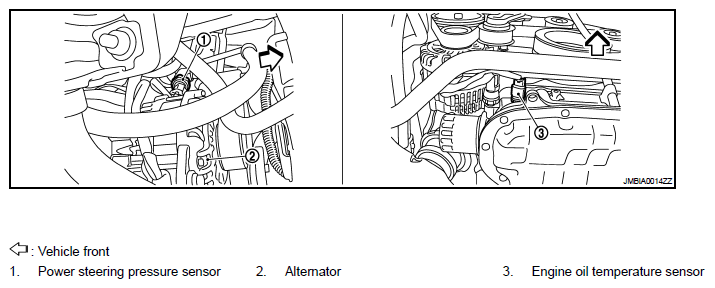

Fig 14: Identifying Intake Valve Timing Control System Components Location (14 Of 20)

G06049340

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Intake Valve Timing Control System Components Location (15 Of 20)

G06049341

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Intake Valve Timing Control System Components Location (16 Of 20)

G06049342

Courtesy of NISSAN MOTOR CO., U.S.A.

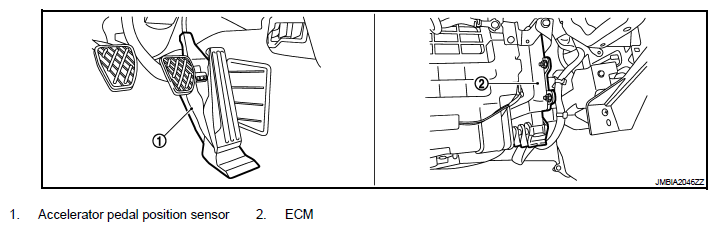

Fig 17: Identifying Intake Valve Timing Control System Components Location (17 Of 20)

G06049343

Courtesy of NISSAN MOTOR CO., U.S.A.

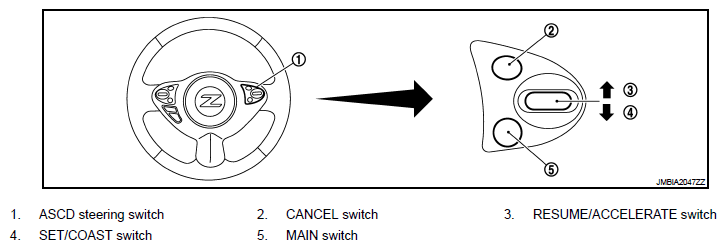

Fig 18: Identifying Intake Valve Timing Control System Components Location (18 Of 20)

G06049344

Courtesy of NISSAN MOTOR CO., U.S.A.

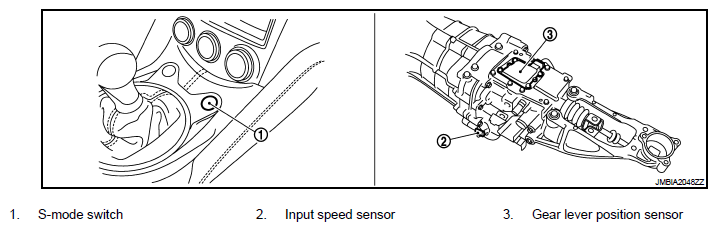

Fig 19: Identifying Intake Valve Timing Control System Components Location (19 Of 20)

G06049345

Courtesy of NISSAN MOTOR CO., U.S.A.

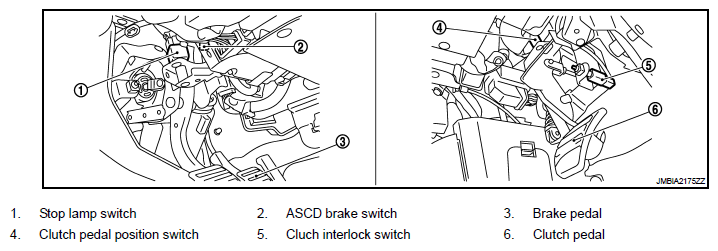

Fig 20: Identifying Intake Valve Timing Control System Components Location (20 Of 20)

G06049346

Courtesy of NISSAN MOTOR CO., U.S.A.
