Engine Control System - Introduction
>>
Function Diagnosis
>>
SYNCHROREV Match Mode (S-Mode)
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

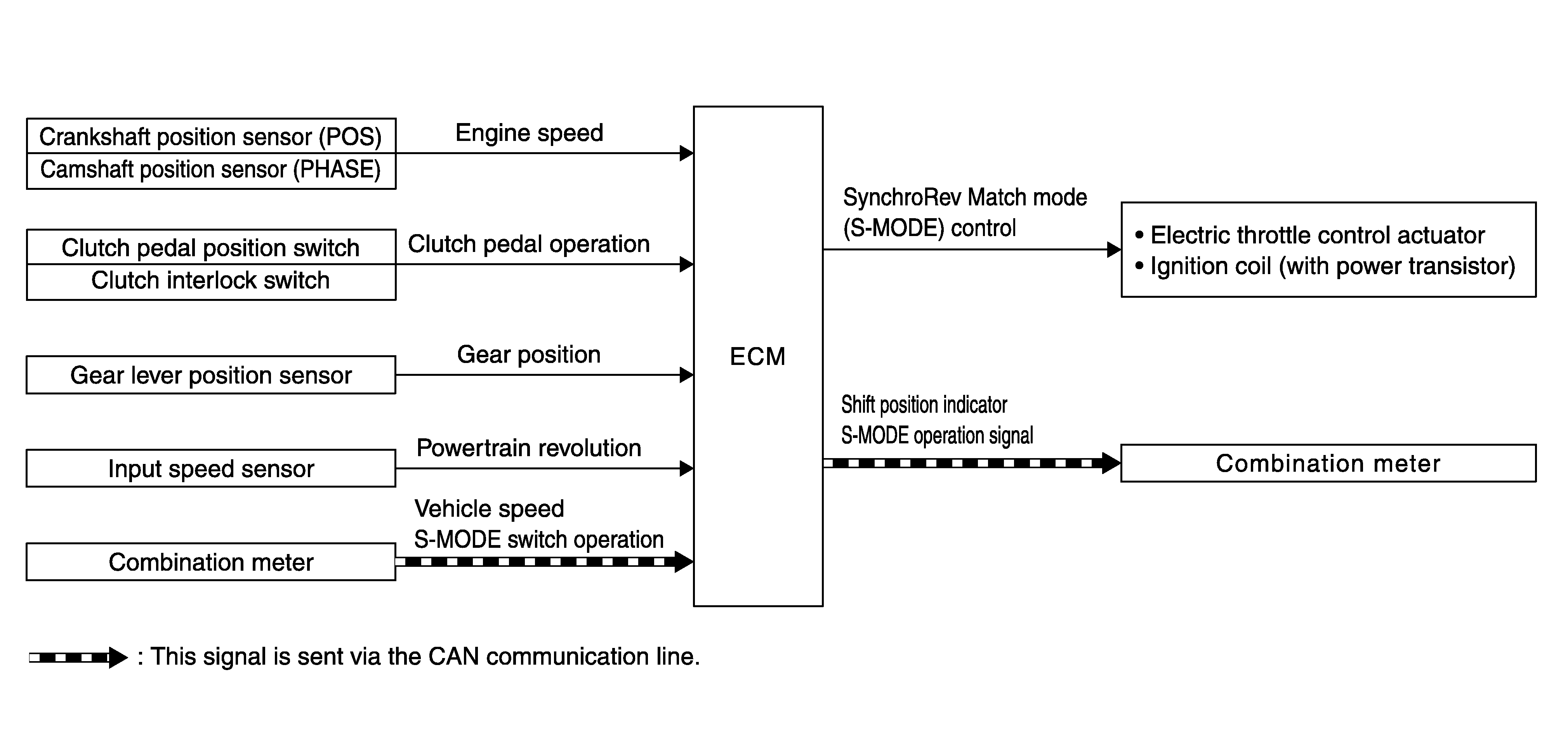

Fig 1: SynchroRev Match Mode (S-Mode) System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
