Component Parts Location

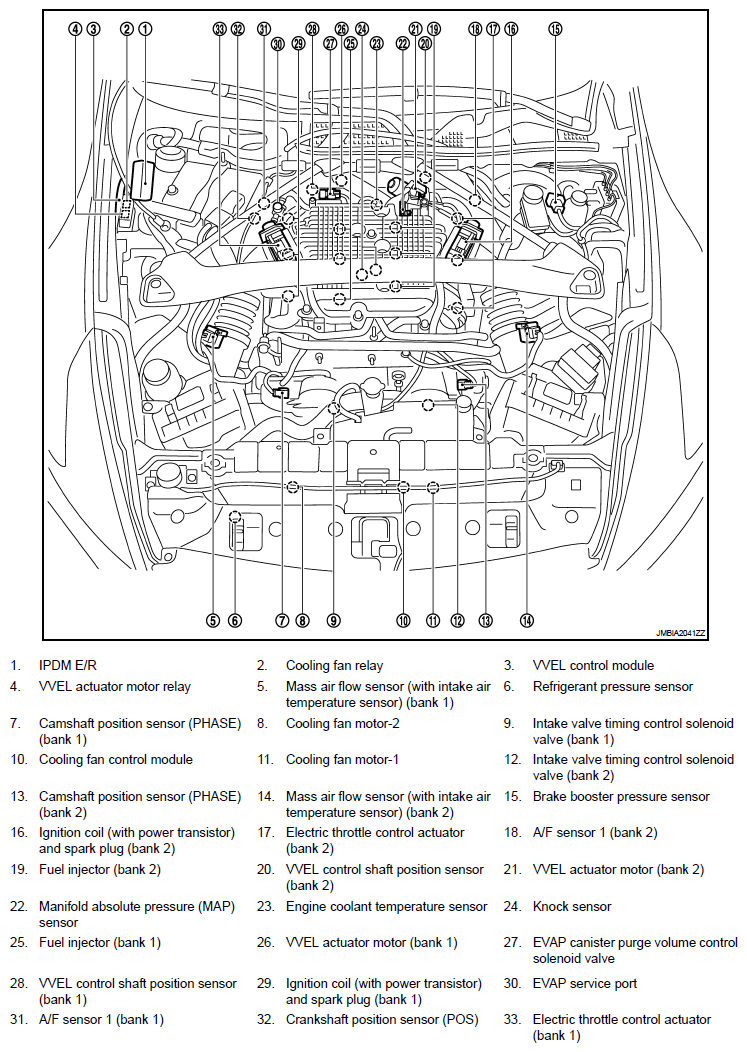

Fig 1: Identifying VVEL System Components Location (1 Of 20)

G06049349

Courtesy of NISSAN MOTOR CO., U.S.A.

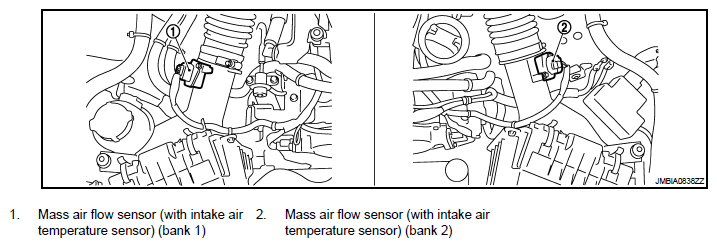

Fig 2: Identifying VVEL System Components Location (2 Of 20)

G06049350

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying VVEL System Components Location (3 Of 20)

G06049351

Courtesy of NISSAN MOTOR CO., U.S.A.

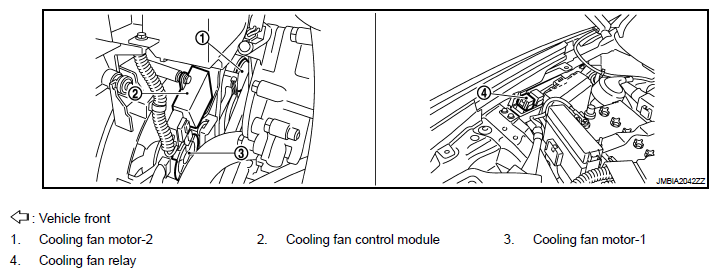

Fig 4: Identifying VVEL System Components Location (4 Of 20)

G06049352

Courtesy of NISSAN MOTOR CO., U.S.A.

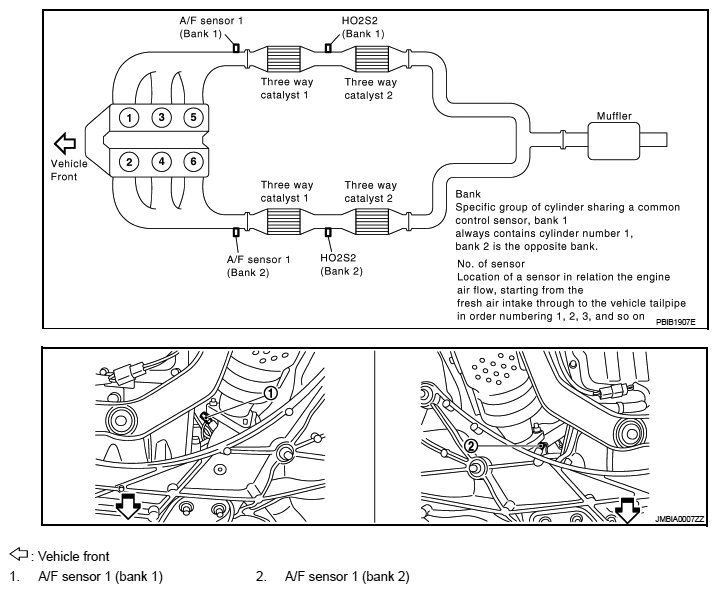

Fig 5: Identifying VVEL System Components Location (5 Of 20)

G06049353

Courtesy of NISSAN MOTOR CO., U.S.A.

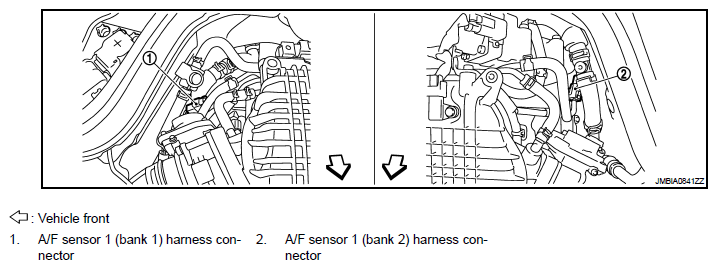

Fig 6: Identifying VVEL System Components Location (6 Of 20)

G06049354

Courtesy of NISSAN MOTOR CO., U.S.A.

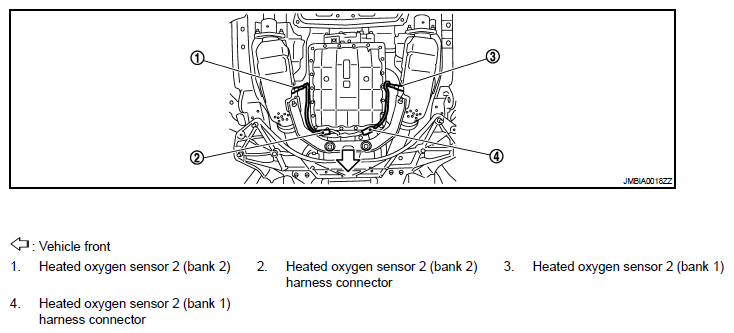

Fig 7: Identifying VVEL System Components Location (7 Of 20)

G06049355

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying VVEL System Components Location (8 Of 20)

G06049356

Courtesy of NISSAN MOTOR CO., U.S.A.

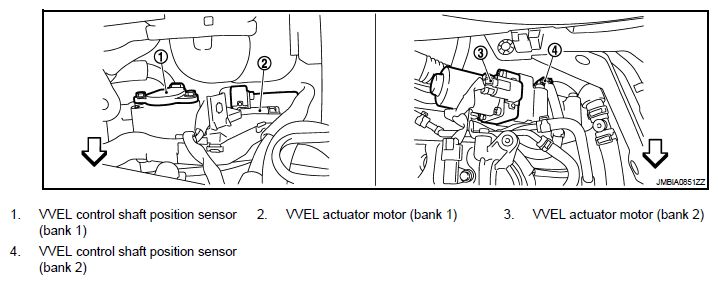

Fig 9: Identifying VVEL System Components Location (9 Of 20)

G06049357

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying VVEL System Components Location (10 Of 20)

G06049358

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying VVEL System Components Location (11 Of 20)

G06049359

Courtesy of NISSAN MOTOR CO., U.S.A.

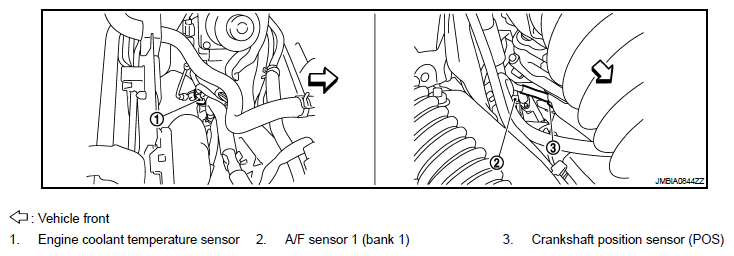

Fig 12: Identifying VVEL System Components Location (12 Of 20)

G06049360

Courtesy of NISSAN MOTOR CO., U.S.A.

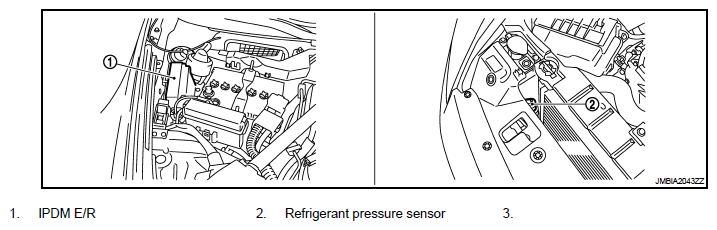

Fig 13: Identifying VVEL System Components Location (13 Of 20)

G06049361

Courtesy of NISSAN MOTOR CO., U.S.A.

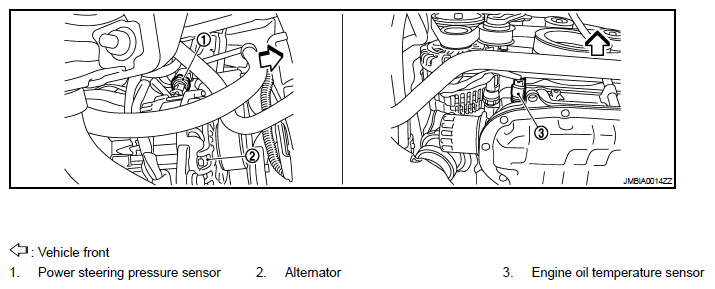

Fig 14: Identifying VVEL System Components Location (14 Of 20)

G06049362

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying VVEL System Components Location (15 Of 20)

G06049363

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying VVEL System Components Location (16 Of 20)

G06049364

Courtesy of NISSAN MOTOR CO., U.S.A.

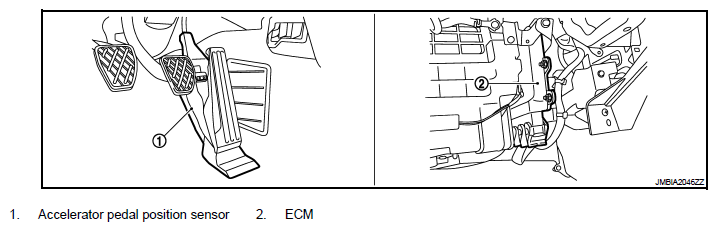

Fig 17: Identifying VVEL System Components Location (17 Of 20)

G06049365

Courtesy of NISSAN MOTOR CO., U.S.A.

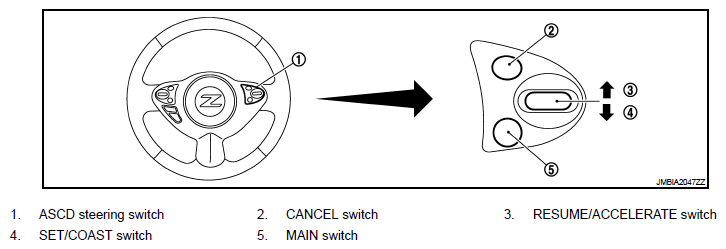

Fig 18: Identifying VVEL System Components Location (18 Of 20)

G06049366

Courtesy of NISSAN MOTOR CO., U.S.A.

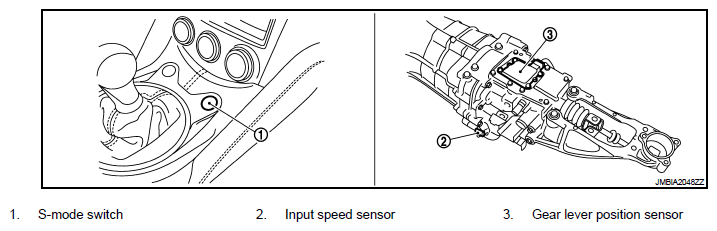

Fig 19: Identifying VVEL System Components Location (19 Of 20)

G06049367

Courtesy of NISSAN MOTOR CO., U.S.A.

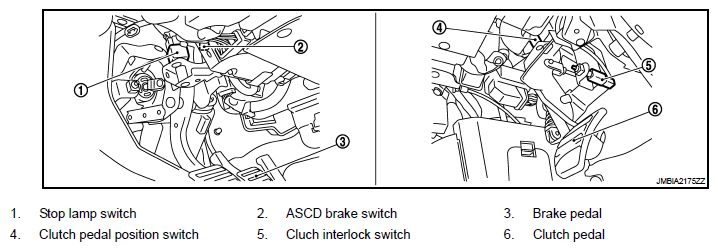

Fig 20: Identifying VVEL System Components Location (20 Of 20)

G06049368

Courtesy of NISSAN MOTOR CO., U.S.A.
