Av Control Unit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

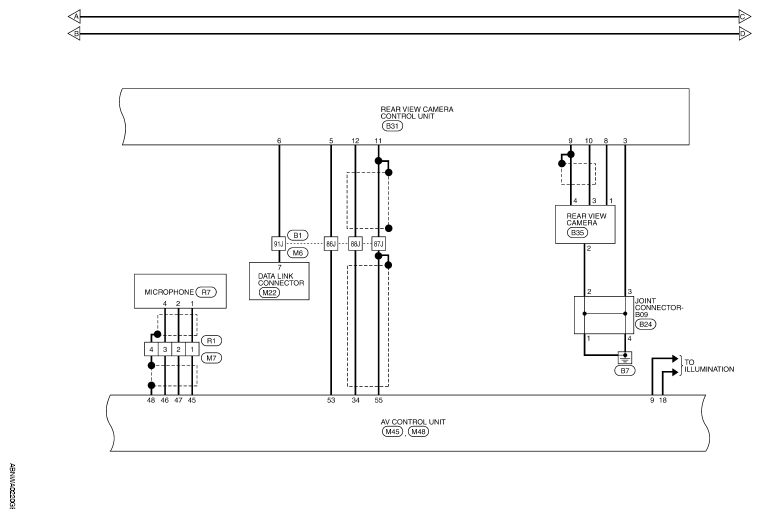

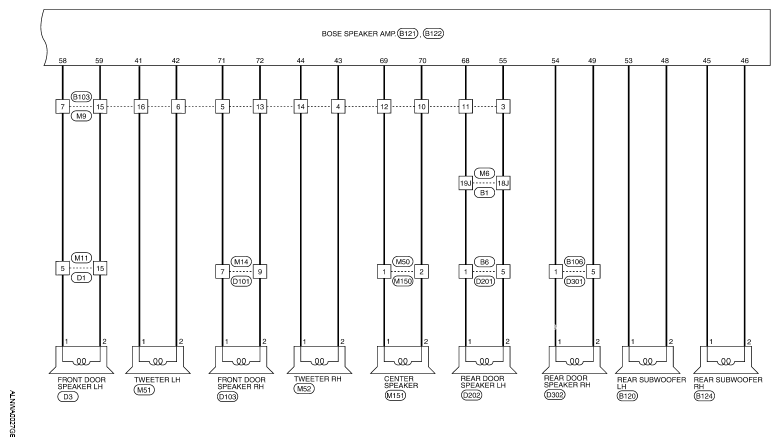

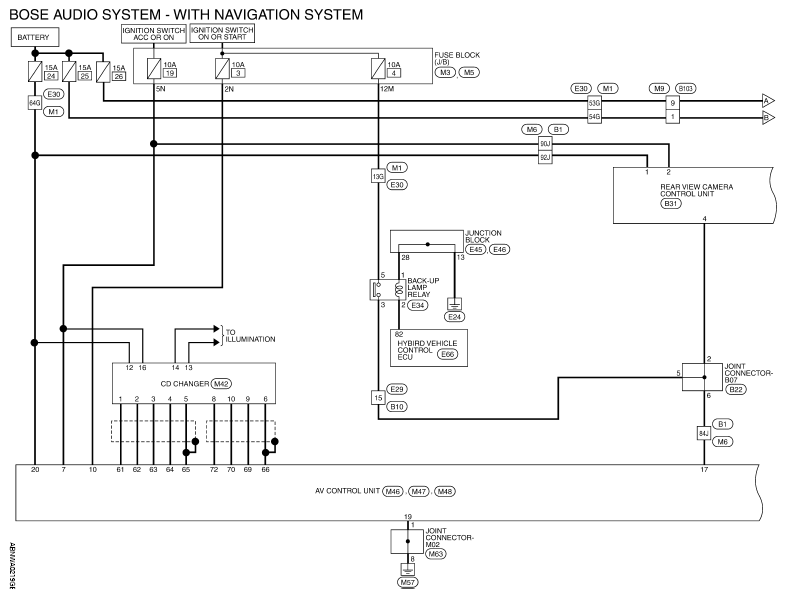

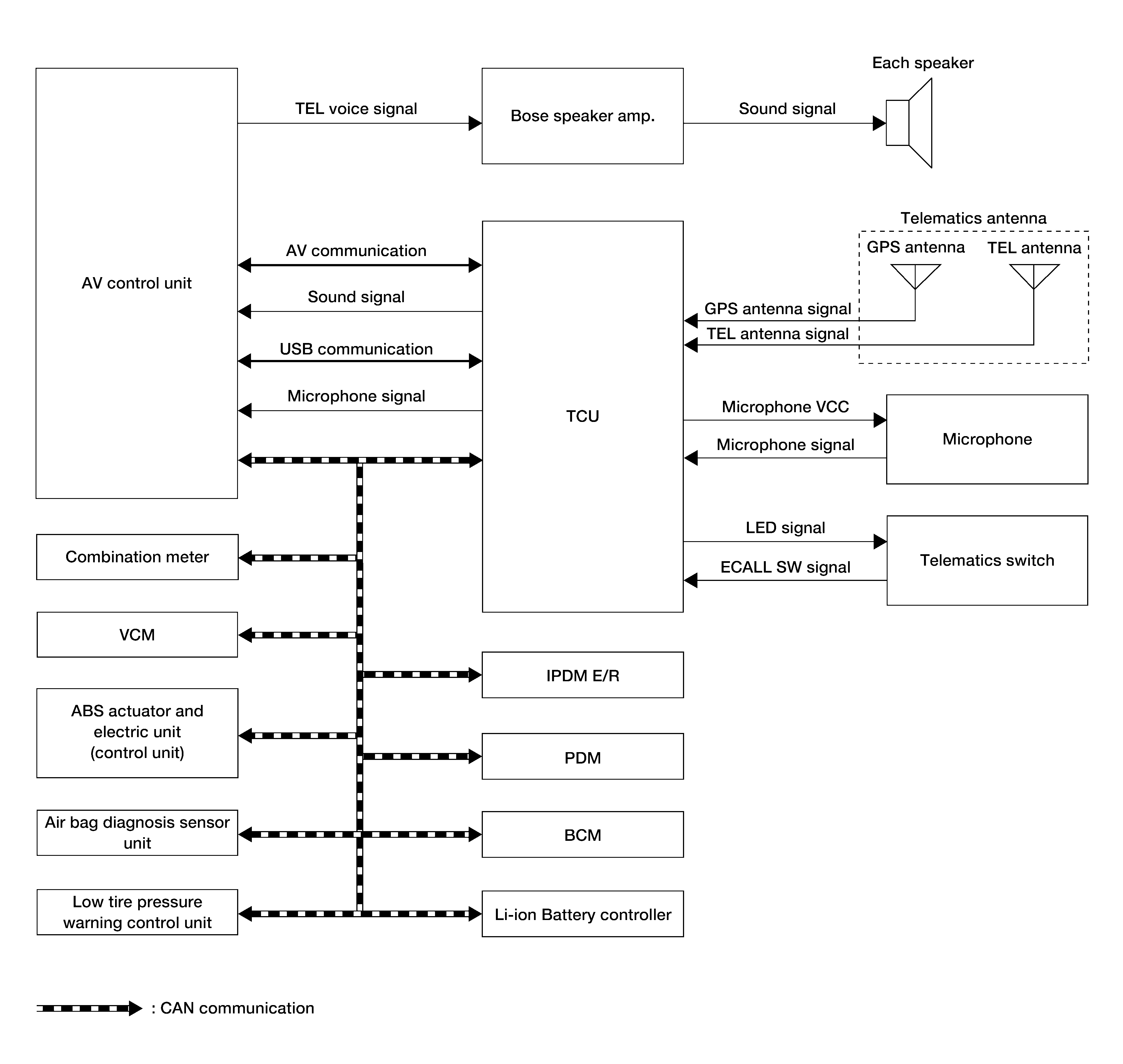

Fig 1: Bose Audio System - With Navigation System Wiring Diagram (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

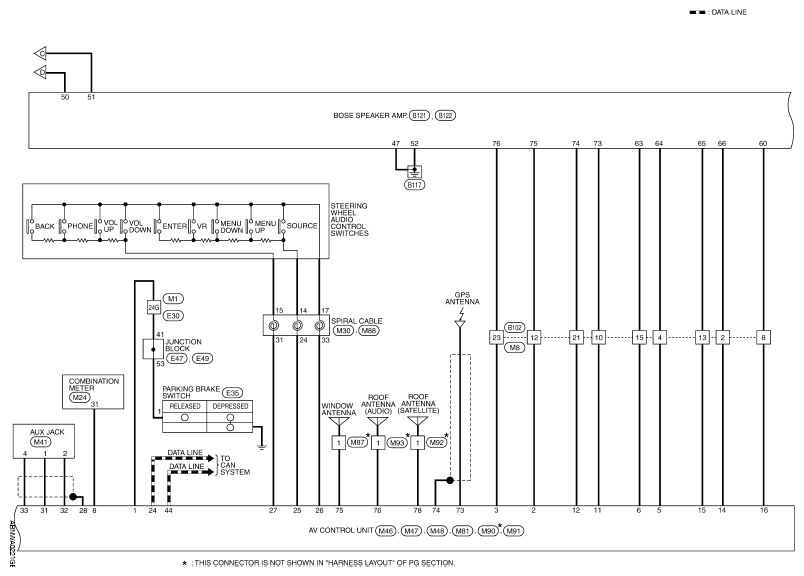

Fig 2: Bose Audio System - With Navigation System Wiring Diagram (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Bose Audio System - With Navigation System Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Bose Audio System - With Navigation System Wiring Diagram (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

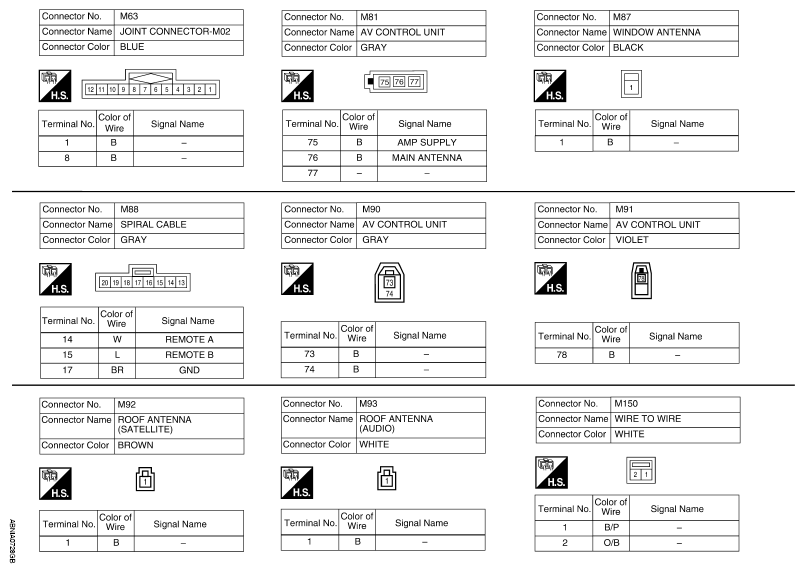

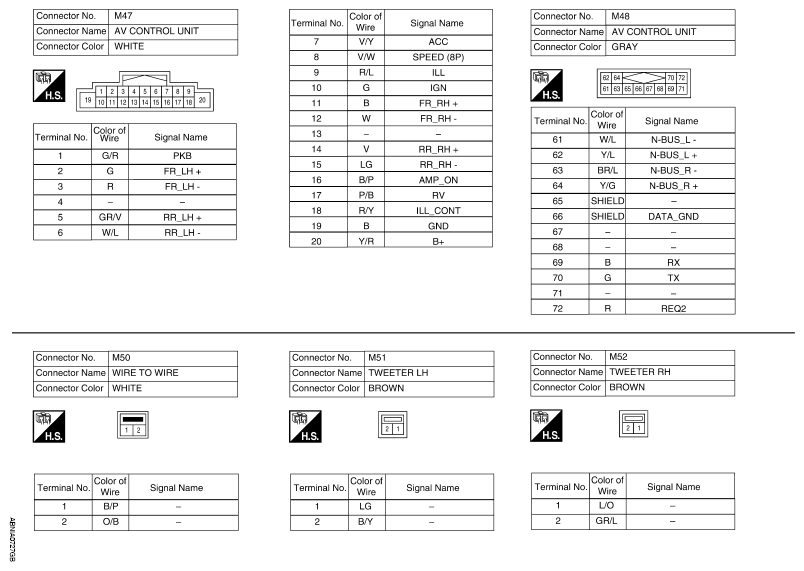

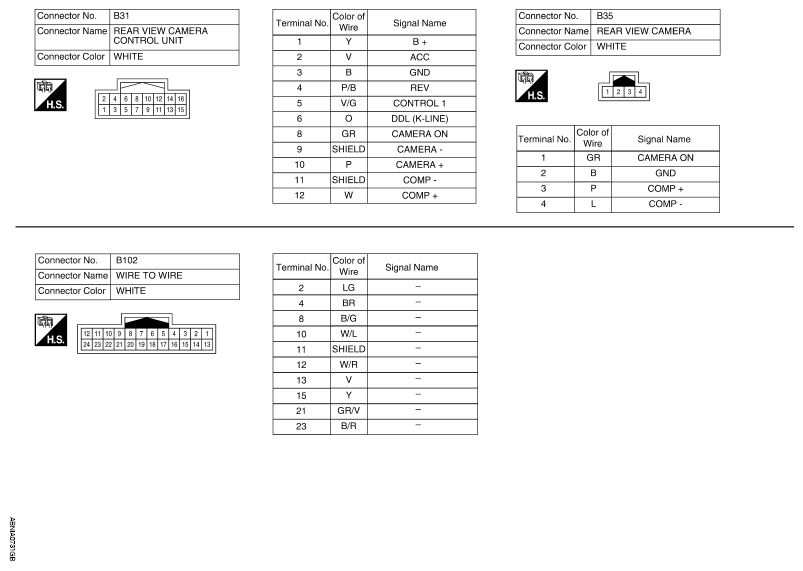

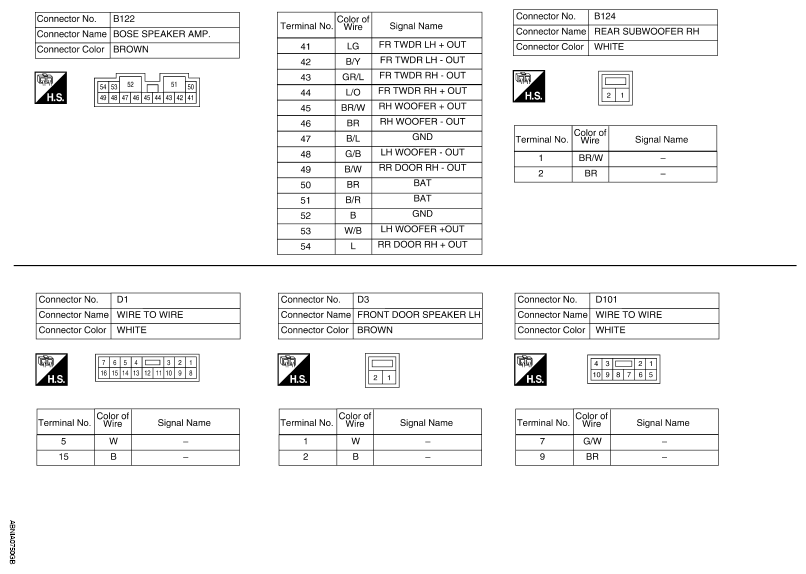

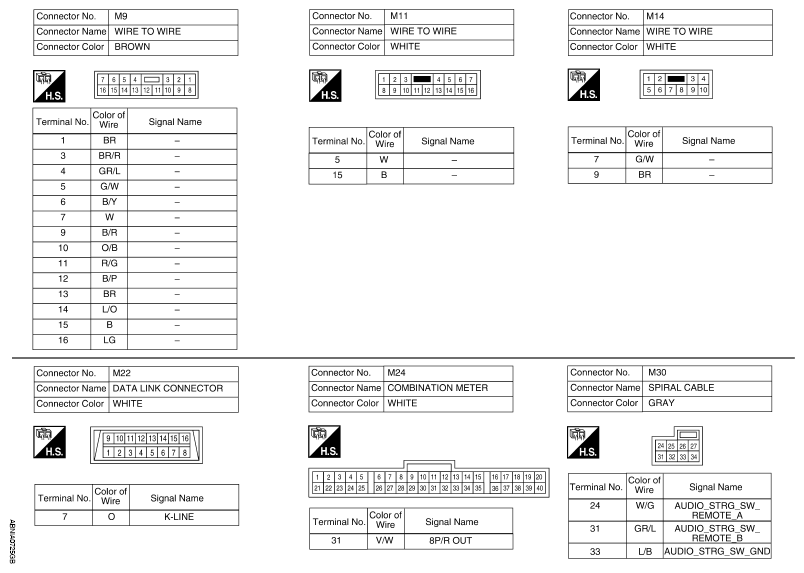

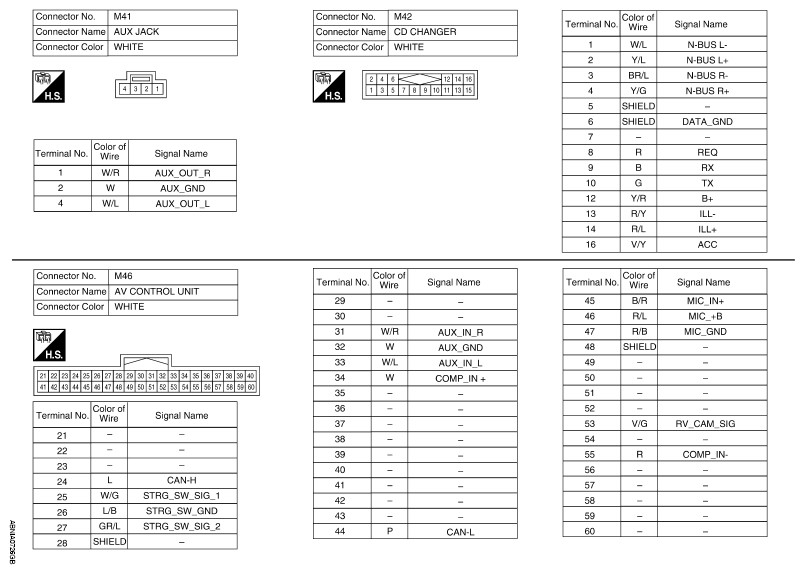

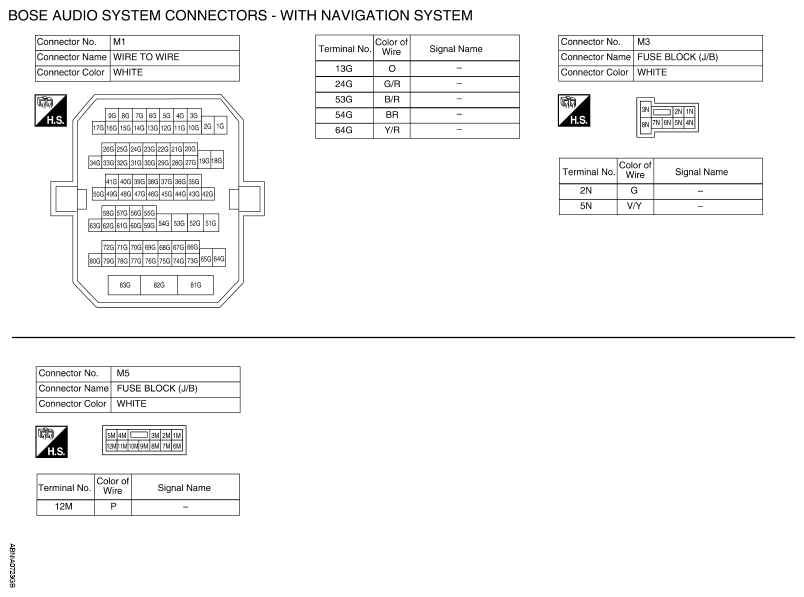

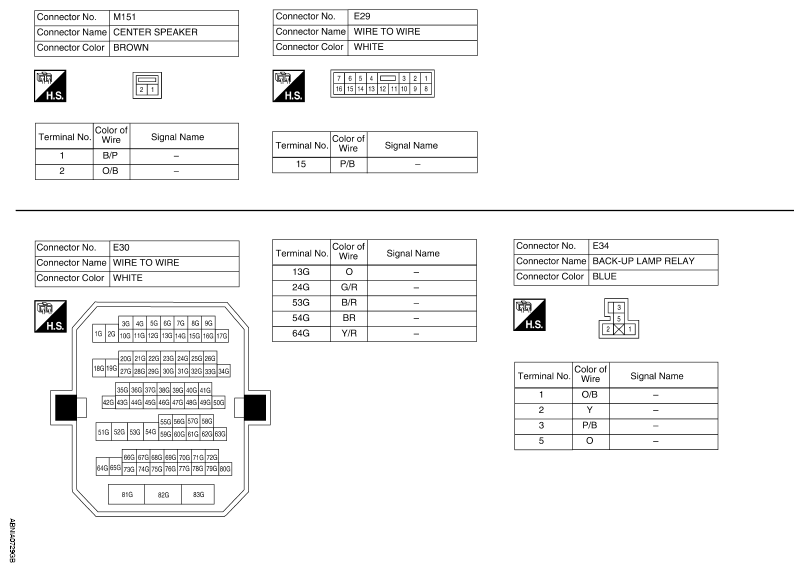

Fig 5: Bose Audio System Connectors - With Navigation System (1 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

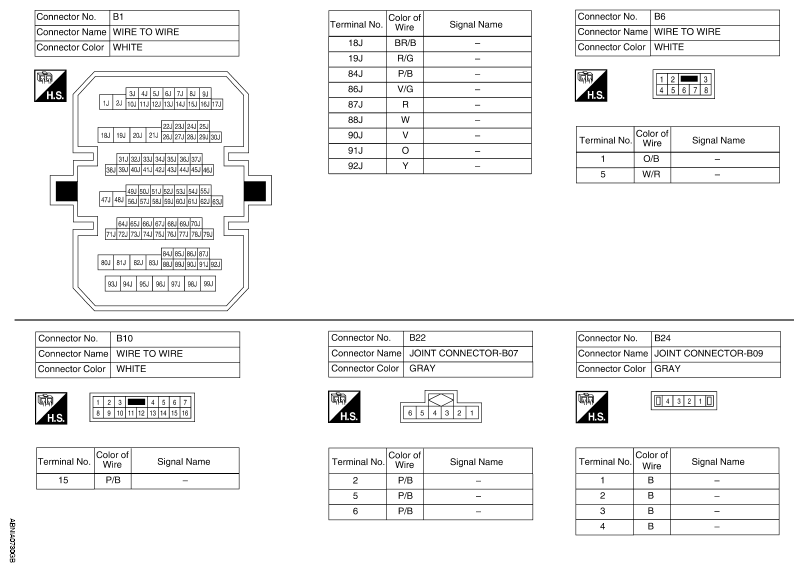

Fig 6: Bose Audio System Connectors - With Navigation System (2 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

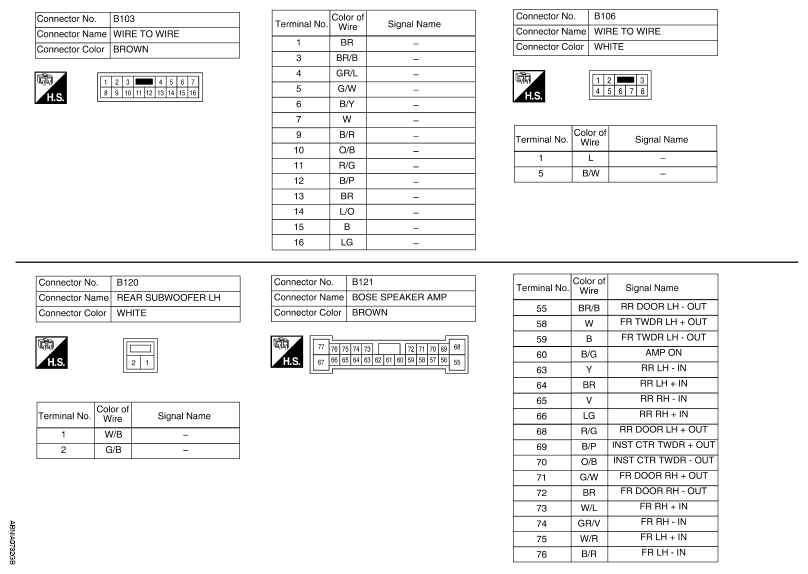

Fig 7: Bose Audio System Connectors - With Navigation System (3 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Bose Audio System Connectors - With Navigation System (4 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Bose Audio System Connectors - With Navigation System (5 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Bose Audio System Connectors - With Navigation System (6 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Bose Audio System Connectors - With Navigation System (7 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Bose Audio System Connectors - With Navigation System (8 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Bose Audio System Connectors - With Navigation System (9 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Bose Audio System Connectors - With Navigation System (10 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Bose Audio System Connectors - With Navigation System (11 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Bose Audio System Connectors - With Navigation System (12 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.
