Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the 12-volt battery negative terminal.
  2. Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove cluster lid D lower finisher. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove navigation audio unit upper and lower screws (A).

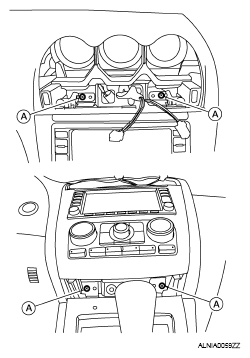

    Fig 1: Identifying Navigation Audio Unit Upper And Lower Screws
    G04890097Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the navigation audio unit bracket screws (A) and remove the navigation audio unit bracket (1).
    Fig 2: Identifying Navigation Audio Unit Bracket Screws And Navigation Audio Unit Bracket
    G04890098Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Pull out the navigation audio unit assembly, disconnect the navigation audio unit assembly connectors.
