Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the 12-volt battery negative terminal.
  2. Remove the rear parcel shelf finisher. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the Bluetooth control (tel adapter) unit screws (A), disconnect the Bluetooth control (tel adapter) unit connectors and remove the Bluetooth control (tel adapter) unit (2).
    • Satellite radio tuner (1)

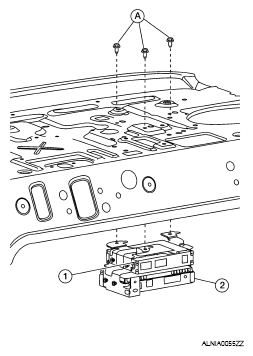

    Fig 1: Identifying Bluetooth Control Unit And Satellite Radio Tuner Unit Screws
    G04889959Courtesy of NISSAN MOTOR CO., U.S.A.
