Component Parts Location

WARNING: This page is about a different variant/trim than selected.

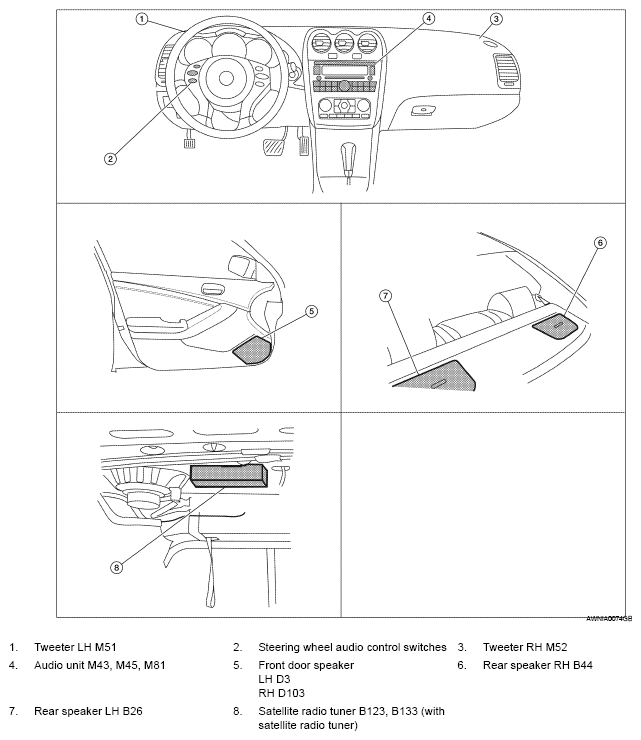

Fig 1: Identifying Audio System Component Location
G05919807Courtesy of NISSAN MOTOR CO., U.S.A.
